I n s t a l l i n g a S I M M
5-10 ❖ 4 5 2 0 / 4 5 2 0 m p U s e r ’ s G u i d e

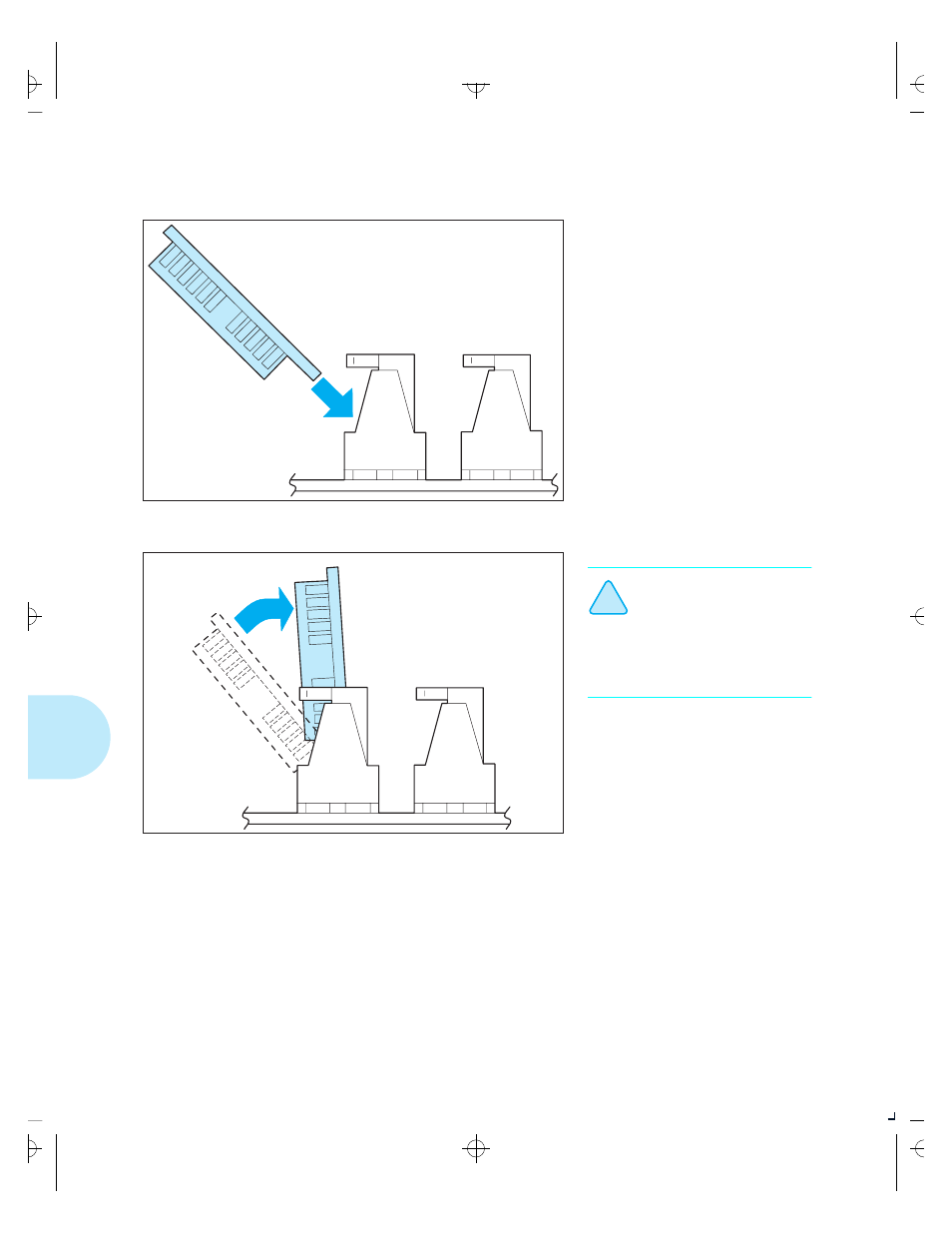

10 Insert the new SIMM
into one of the SIMM
slots.
Be careful not to damage
the locking clips located
at each end of the SIMM
slot. They may break if
too much pressure is
applied.
11 Press the SIMM up
until the clips lock it in
place.
The SIMM sits at a
right angle to the
board.
Install additional
SIMMs in the same
manner.
!
Caution
