P a p e r O u t p u t
C h a p t e r 2 : H a n d l i n g P a p e r ❖ 2-5
As shown in Figure 2.2, printed output is delivered face down
to the top output tray and face up to the front output tray .
Output capacity on top is up to 500 sheets of standard weight
paper and up to 250 sheets on the front.

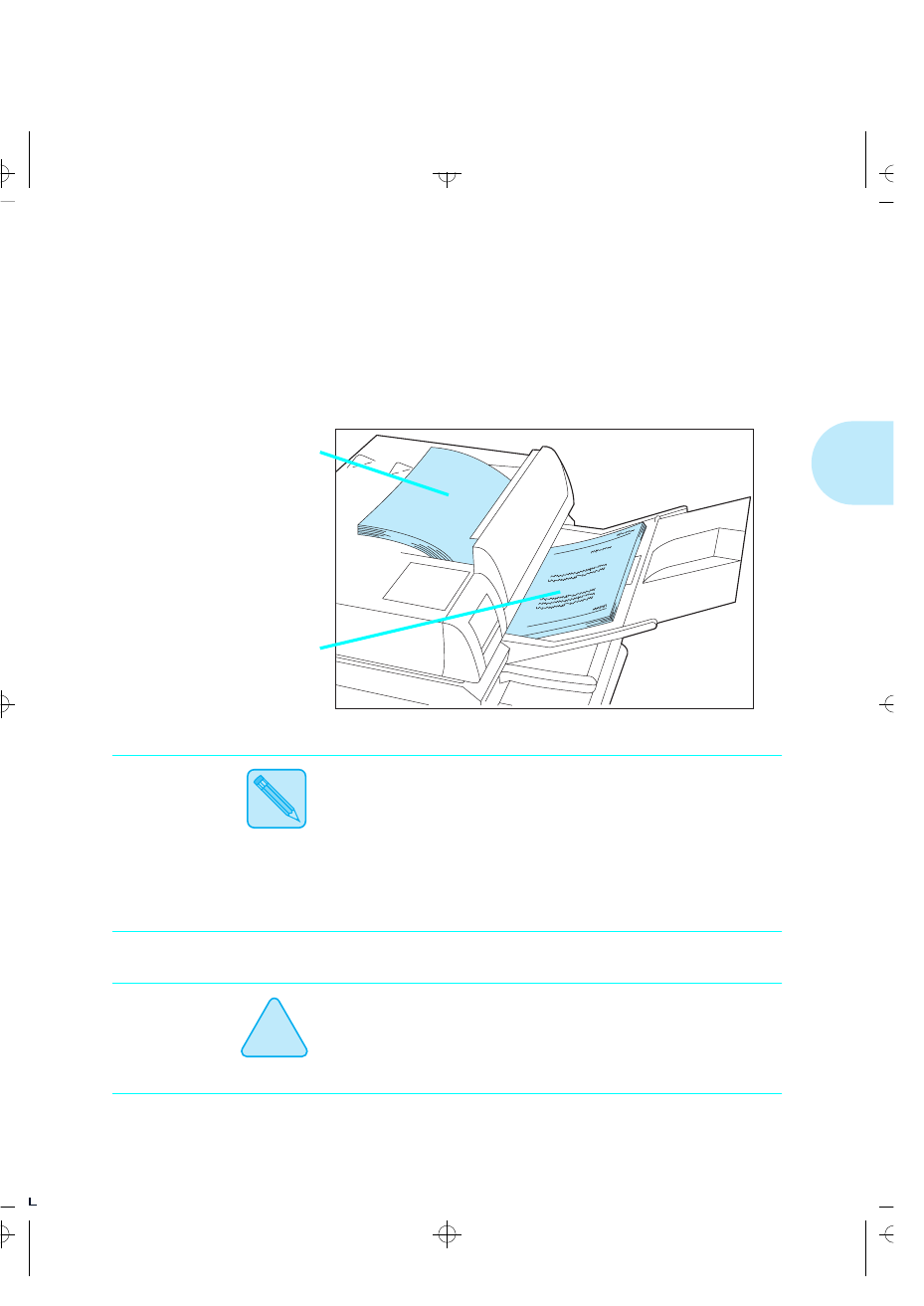

Figure 2.2 Output trays
The front output tray must be removed to deliver printed
output to the top tray. Whenever the front tray is installed,
output is delivered to it.
For optimum performance, deliver light weight paper
(60 gsm/16 lbs.) and special media (transparencies, label
stock, and envelopes) to the front output tray.
Depending on paper weight, you may find the front output
tray holds fewer than 250 sheets. Paper jams may occur if
output capacity is exceeded.
Paper
Output
Top Output Tray
(also known as the
HCOS: high-capacity
output stacker, or the
face down tray)
Front Output Tray
(also known as the
face up tray)
