Reference
AFG3000 Series Arbitrary/Function Generators Reference Manual 2-31
Browsing Instrument
Setup Files
To browse instrument setup files in the internal memory or in a USB memory, push
the front-panel Recall button, and then push the Memory bezel button to specify
Internal or USB as a memory type. Figure 2-12 is an example of screen when
Internal is selected.

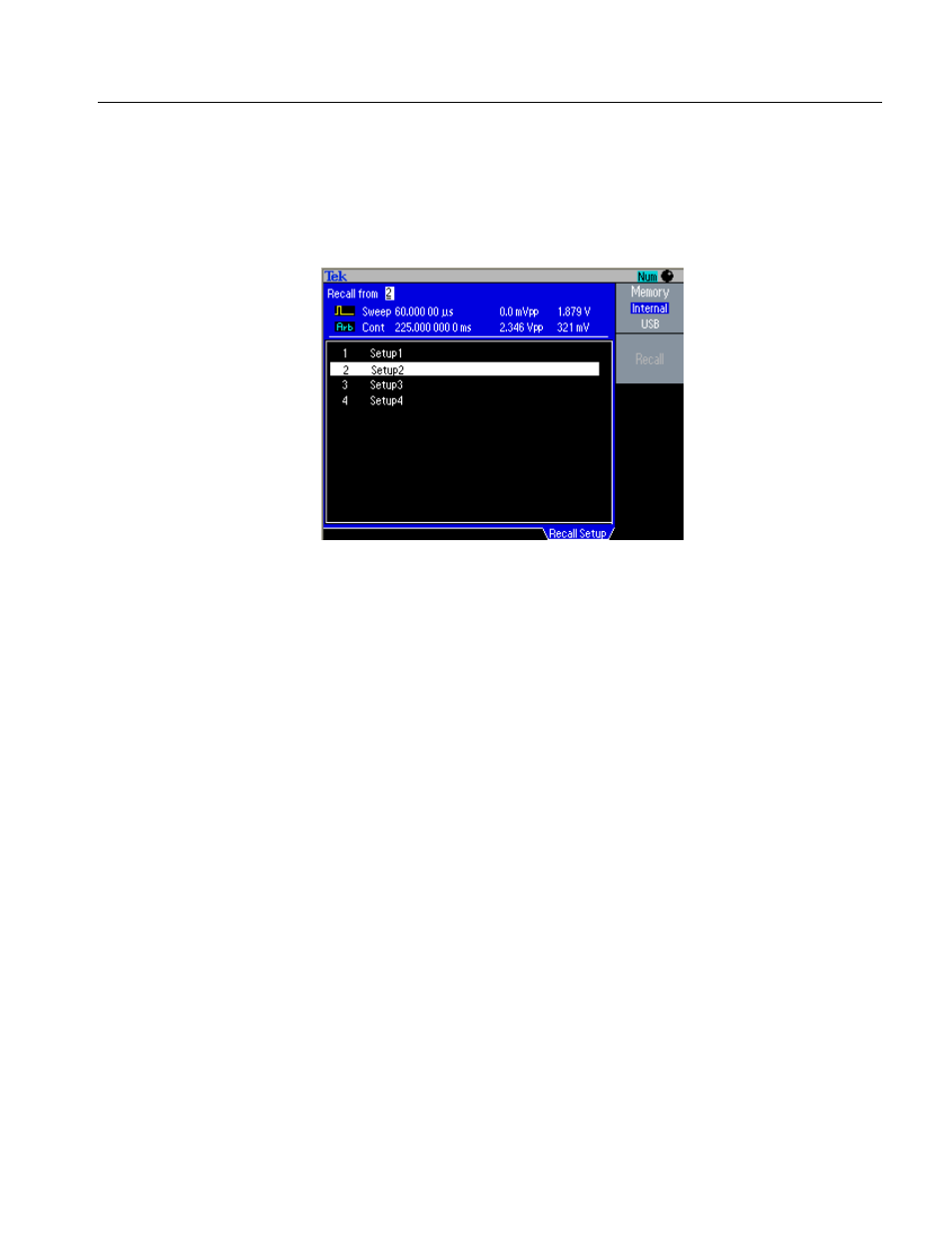

Figure 2-12: Recall menu (Internal)
Select a desired setup file, and then push Recall. The selected setup file is recalled.
Saving an Instrument
Setup File
Use the front-panel Save button to save instrument setups in the internal or in a
USB memory.
1. Push the front-panel Save button to display the Save menu.
2. Select a memory location:
„ To save a setup to the internal memory, select Internal.
„ To save a setup to a USB memory, select USB.
3. Use the general purpose knob to scroll a file or directory.
„ Select Save to overwrite the existing file.
„ Select Save As to display the submenu to enter a file name. (USB only)
„ Select Make Directory to create a new directory. (USB only)
