Chapter 10: Differential Equation Graphing
141
10DIFFEQ.DOC TI-86, Chap 10, US English Bob Fedorisko Revised: 02/13/01 2:28 PM Printed: 02/13/01 3:02 PM Page 141 of 20
10DIFFEQ.DOC TI-86, Chap 10, US English Bob Fedorisko Revised: 02/13/01 2:28 PM Printed: 02/13/01 3:02 PM Page 141 of 20
10DIFFEQ.DOC TI-86, Chap 10, US English Bob Fedorisko Revised: 02/13/01 2:28 PM Printed: 02/13/01 3:02 PM Page 141 of 20

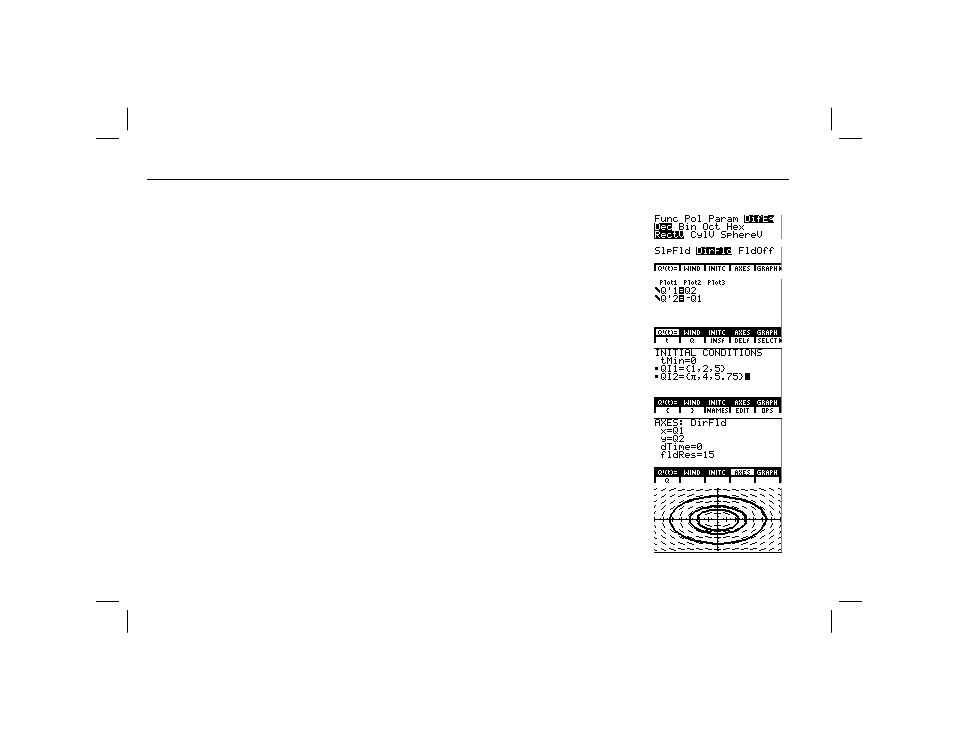

Graphing in DirFld Format
ᕡ Display the mode screen and set
DifEq
graphing mode.
- m # # #
# " " " b
ᕢ Display the format screen and set
DirFld
graphing format.
6 / & #
# # # # " b
ᕣ Display the equation editor and store the
transformed system of differential
equations for y''=
Ly to the equation editor,
substituting
Q1
for y and
Q2
for y'.
& '
2
# a '
1
ᕤ Display the initial conditions editor and enter
the initial conditions if you want a specific
solution. To enter a list of initial conditions,
use
{
and
}
from the
LIST
menu.
- g - ”
&
1
P
2
P
5
'
# & -~ P
4
P
5
`
75
'
ᕥ Display the axes editor and enter the two
equation variables for which you want to
solve. You must omit the prime mark (
'
).
ᕦ Accept or change
fldRes
(resolution).
- h &
1
#
&
2
ᕧ Select
ZSTD
from the
GRAPH
ZOOM
menu
to set the standard window variable values
and display the graph.
ᕨ Clear the
GRAPH
menu from the screen.
. / ( )
:
In DifEq graphing mode, t is
the independent variable and
Q'
n
is the dependent variable,
where
n
‚
1 and
9.
In the example, the default
window variable values are
set initially.
When DirFld field format is
selected, x=Q1, y=Q2,
dTime=0
, and fldRes=15 are
the default axes settings.
Since t is not part of the
equation, dTime is ignored.
