28
12.1.3 Application Configuration
As previously mentioned, any PC communication software and PC serial port
can be used. The software configuration example given here will be for
Windows HyperTerminal communicating via COM1.
Figure 7 shows the “Connect To” tab of the properties window for COM1.
Figure 8 shows the window that appears when “Configure” is selected in the
“Connect To” tab. Figure 9 shows the “Settings” tab of the properties window.
Most of these settings are their default values: usually the only change needed
is the “Bits per second” setting shown in Figure 8.

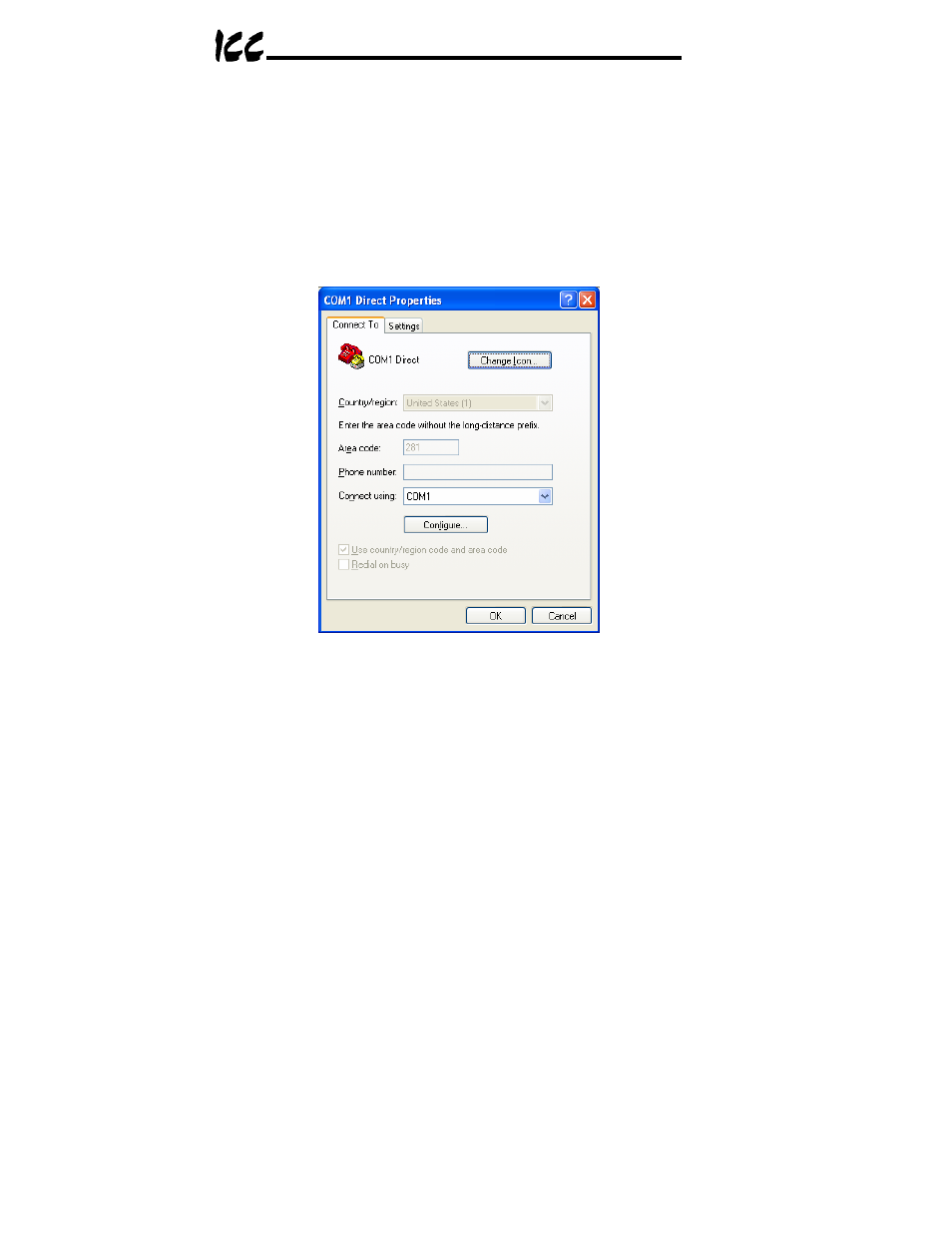

Figure 7: HyperTerminal Properties…Connect To
