E6581741

- 73 -

10. Example of the setup with PL7™

It is an example of the setup using PLC (PL7™) made by Schneider electric as follows.

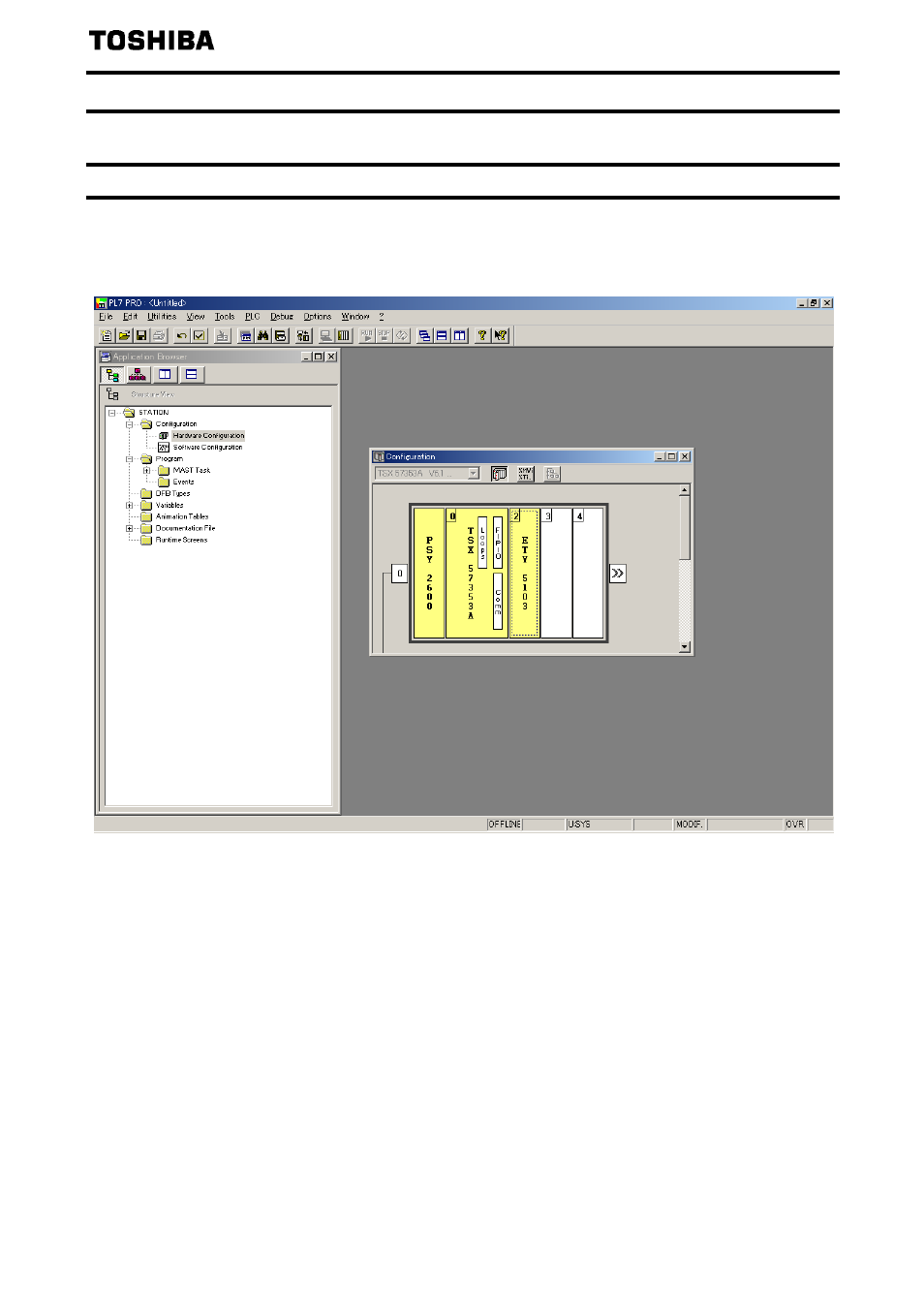

10.1. Defining the hardware configuration

Configure an Ethernet module then configure the module so that it can communicate with
the drive. The example shows a TSX Premium PLC equipped with a TSX ETY5102
module.

*PL7 is a trademark of Schneider Electric.
