AC Power Receptacle
Power Switch
SCSI 0 SCSI 4 SCSI 2
SCSI 1 SCSI 5 SCSI 3
SERIAL
FAIL OVER
ETHERNET
FIBRE CHANNEL 0
FIBRE CHANNEL 1
SCSI 0
LED
SCSI 4
LED
SCSI 2
LED
SCSI 1
LED
SCSI 5
LED
SCSI 3
LED
AT LED 1
(Fibre Channel 1)
LK LED 1
(Fibre Channel 1)
AT LED 0
(Fibre Channel 0)
LK LED 0
(Fibre Channel 0)
ST LED
(Ethernet)
LK LED
(Ethernet)
ST LED
FT LED

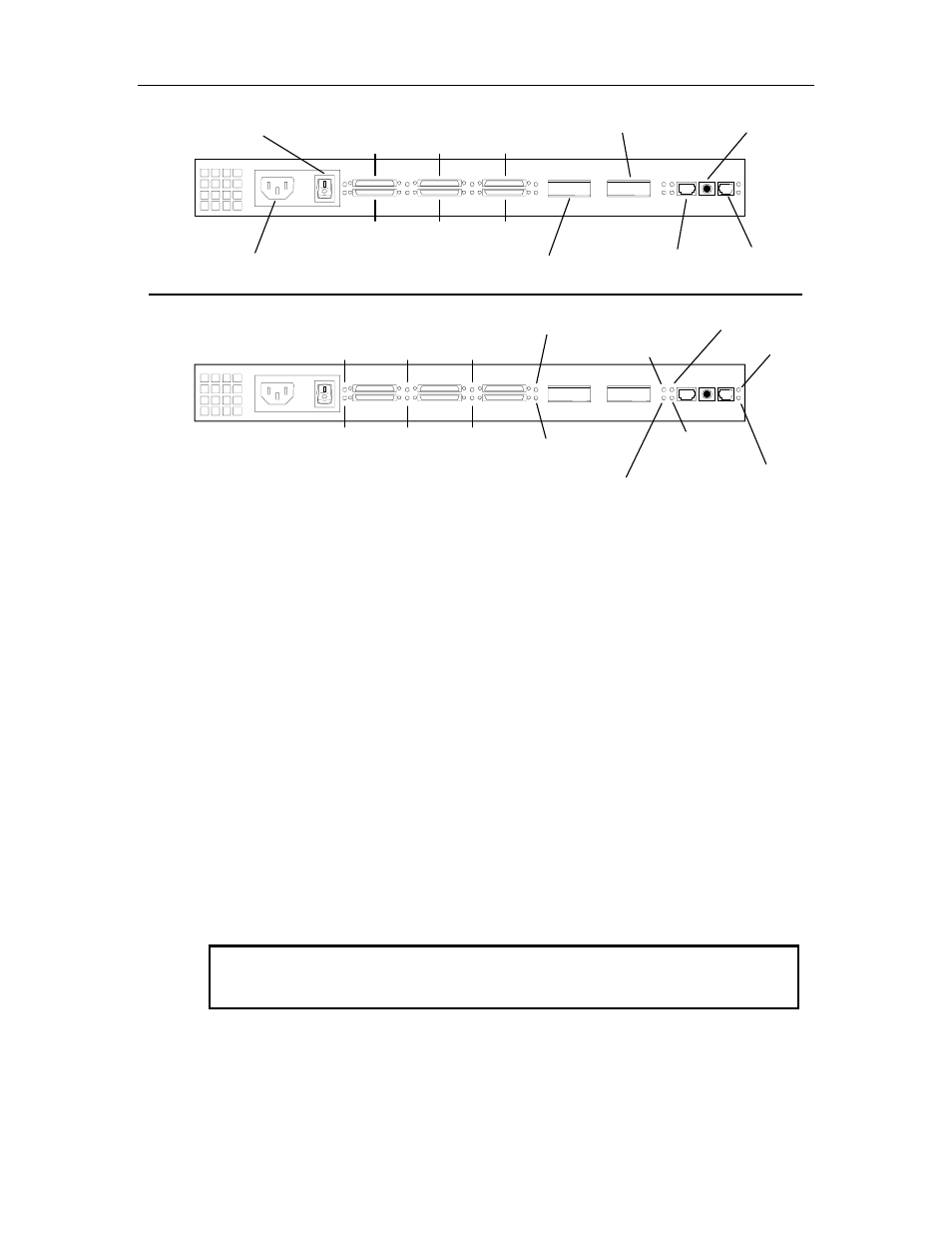

Figure 9-5 Rear View of the Type B Fibre Channel Bridge/Router (FCO)
1. Remove power from the FCO: first turn the power switch off and then remove the
power cord.
2. Remove power from the TLS: first turn the power switch off and then remove the
power cord.
3. If the FCO is connected the FC host or Hub, disconnect it.
4. Disconnect any SCSI cables (SCSI 0 through SCSI 5) from the rear of the FCO.
5. Disconnect the cable from the serial connector on the FCO.
6. If the FCO is mounted in a rack, cabinet or other location detach it and it will be
ready for packing.
9.4 Preparation for Packing ATTO Fibre Channel Options
CAUTION
Be sure to turn the library’s power off before installing or removing a Fibre Chan-
nel Option.
501440 Rev. J
Repacking 9-5
