4.3 Cabling for TLS-42xx (using AIT-3 or 5 Tape Drives), TLS-44xx
and TLS-46120 (using AIT-3 Tape Drives)
Note that all TLS models are shipped from the factory without the SCSI interconnect
cables or terminators installed. The following figures and tables represent the pre-
ferred cabling for a library with two to six tape drives.
Drive 1
Drive 2
Terminator
FCO
Executive PCBA
SCSI Channel 0
Fibre Channel Cable
To Host or Switch

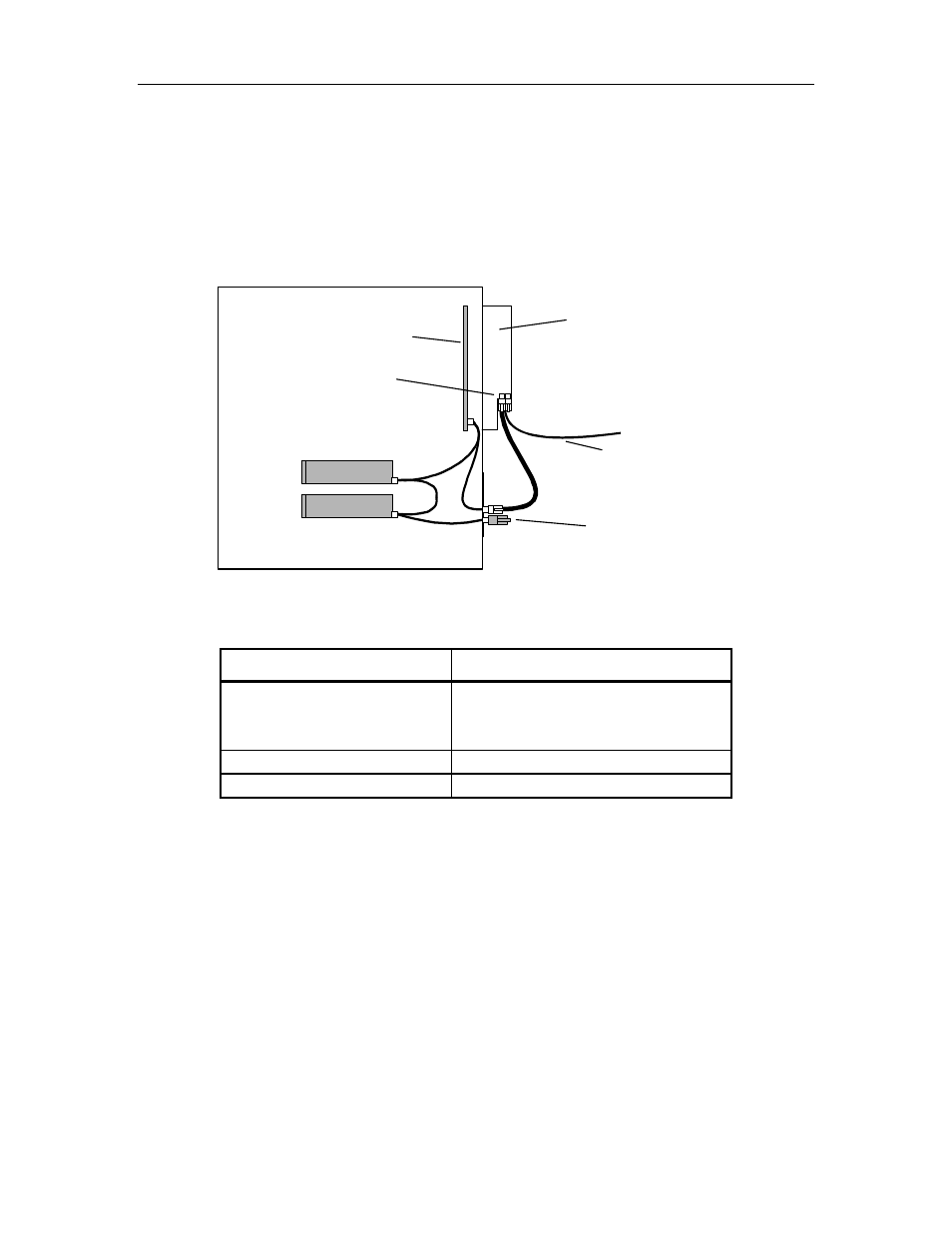

Figure 4-2 TLS-42xx Cabling Diagram
Connectors on Rear of FCO Connectors on Rear of TLS-42xx
FCO: SCSI Channel 0 Medium Changer
Tape Drive 1 (T1)
Tape Drive 2 (T2)
FCO: SCSI Channel 1 None
FCO: Serial Jumper
Table 4-2 Preferred TLS-42xx Fibre Channel Option Cable Connections
FCO Type C Installation
