Qualstar 501440 Rev. G - Manual (Page 41)

Fibre Channel Cables
To Host or Switch
SCSI Channel Cables
Right Side
No Tape Drives
Installed
FCO
Left Side
Drive 1
Drive 2
Drive 3
Drive 4
Drive 5
Drive 6
Bridge Cable
Terminators
Terminators
Terminators
To SCSI Channel 0
To SCSI Channel 1
To SCSI Channel 2
Executive PCBA

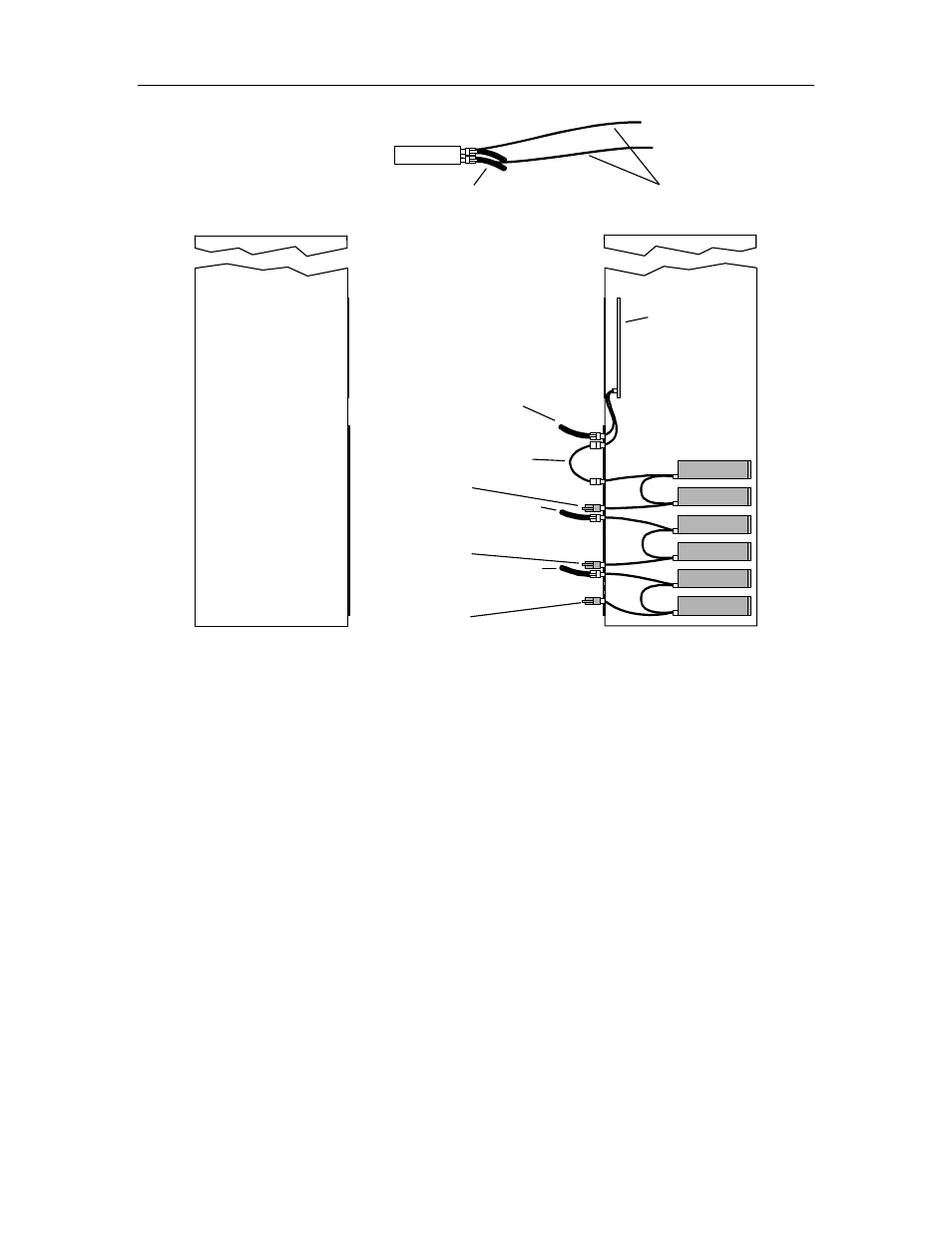

Figure 5-6 TLS-412xxx Cabling Diagram for up to 6 AIT-5 Tape Drives
501440 Rev. J
FCO Type B Installation 5-9
