Note that all TLS-4000 models are shipped from the factory without the SCSI inter-
connect cables or terminators installed. The following tables and figures represent the
preferred cabling for a library with two to 12 AIT tape drives.
6.3 Cabling for TLS-44xxx Libraries with AIT-5 Tape Drives
Drive 1
Drive 2
Drive 3
Drive 4
Terminators
FCO
Executive PCBA
SCSI Channel 1
SCSI Channel 2
Fibre Channel Cables
To Host or Switch

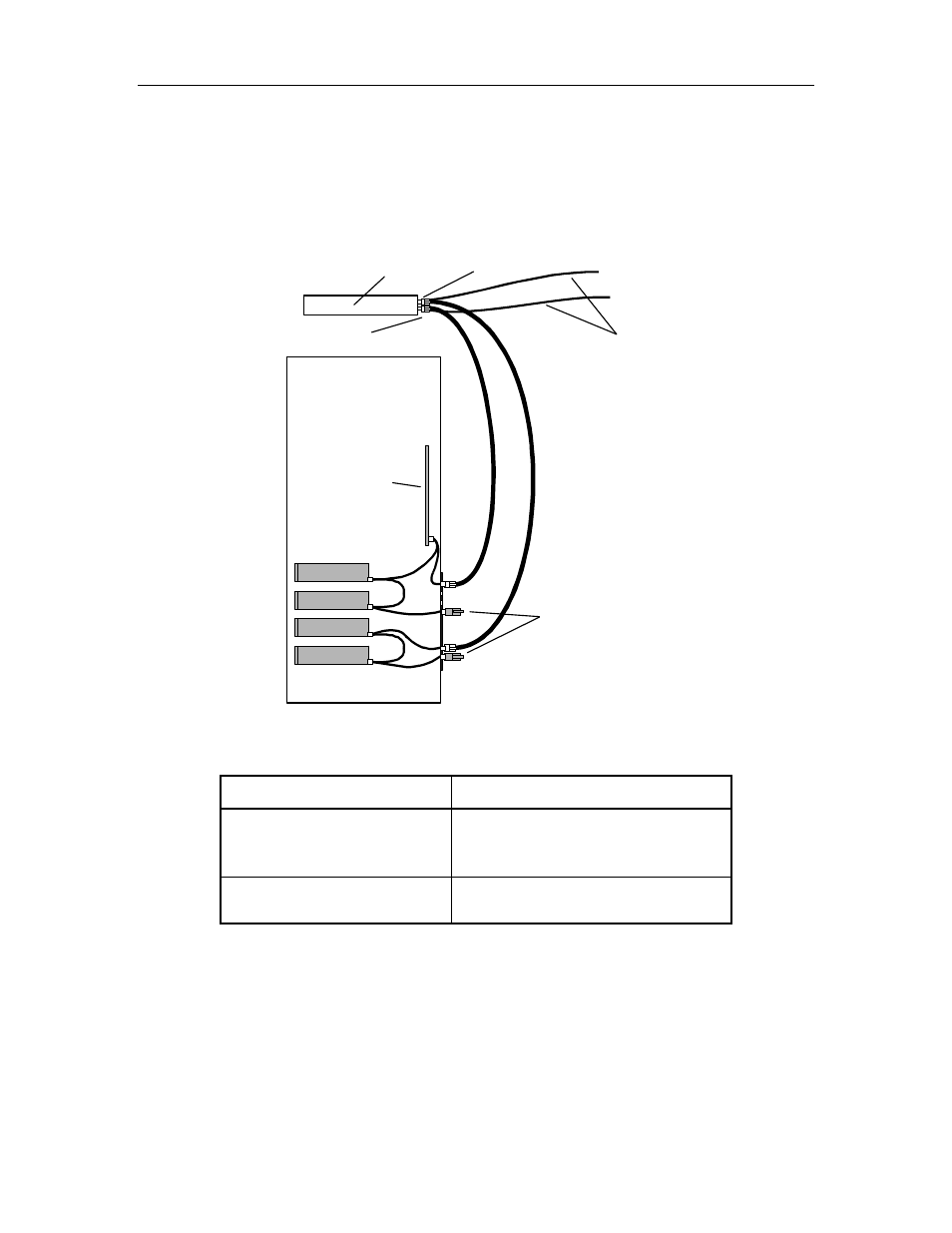

Figure 6-2 TLS-44xx Cabling Diagram using AIT-5 Tape Drives
Connectors on Rear of FCO Connectors on Rear of TLS-44xx
FCO: SCSI Channel 1 Medium Changer
Tape Drive 1 (T1)
Tape Drive 2 (T2)
FCO: SCSI Channel 2 Tape Drive 3 (T3)
Tape Drive 4 (T4)
Table 6-2 Preferred TLS-44xx Fibre Channel Option Cable Connections for AIT-5 Tape Drives
