Drive 1
Drive 2
Drive 3
Drive 4
Terminators
FCO
Executive PCBA
SCSI Channel 0
SCSI Channel 1
Fibre Channel Cable
To Host or Switch

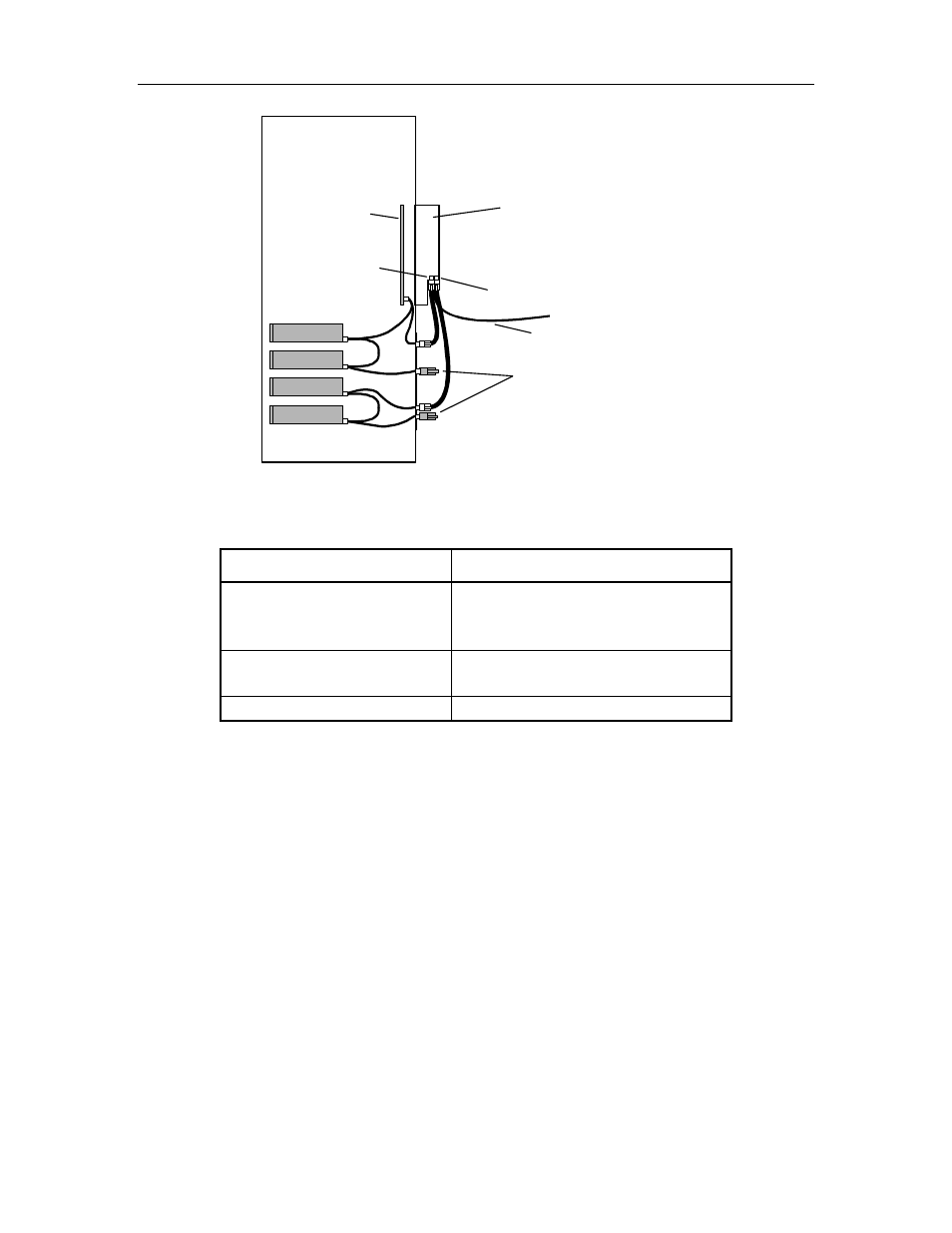

Figure 4-3 TLS-44xx Cabling Diagram using AIT-3 Tape Drives
Connectors on Rear of FCO Connectors on Rear of TLS-44xx
FCO: SCSI Channel 0 Medium Changer
Tape Drive 1 (T1)
Tape Drive 2 (T2)
FCO: SCSI Channel 1 Tape Drive 3 (T3)
Tape Drive 4 (T4)
FCO: Serial Jumper
Table 4-3 Preferred TLS-44xx Fibre Channel Option Cable Connections for AIT-3 Tape Drives
501440 Rev. J
FCO Type C Installation 4-5
