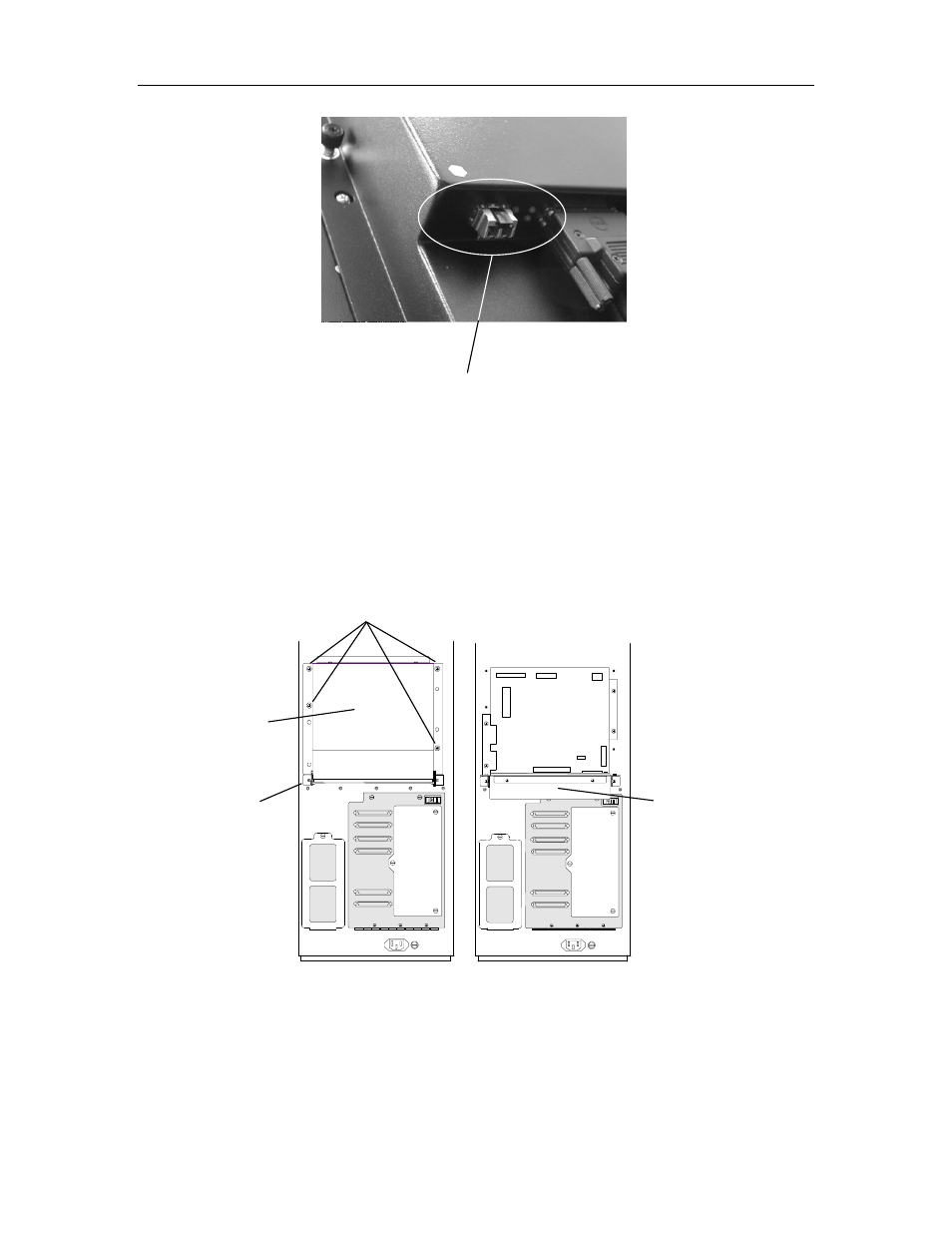

SFP adapter fully inserted into
a type C Fibre Channel Option.
Figure 9-1 Remove the SFP Adapter from the Fibre Channel Option
4.
Using a Phillips screwdriver, loosen the four captive screws on the FCO (see
Figure 9-2) and carefully guide the FCO backwards as it pivots on the hinges
and comes to its open position. See Figure 9-2.
FCO in Open Position
Captive Screws (4)
FCO’s
Hinges (2)
Fibre Channel
Option
Figure 9-2 Fibre Channel Option in Closed and Open Positions
