Connecting and Setting Up
10
2
B

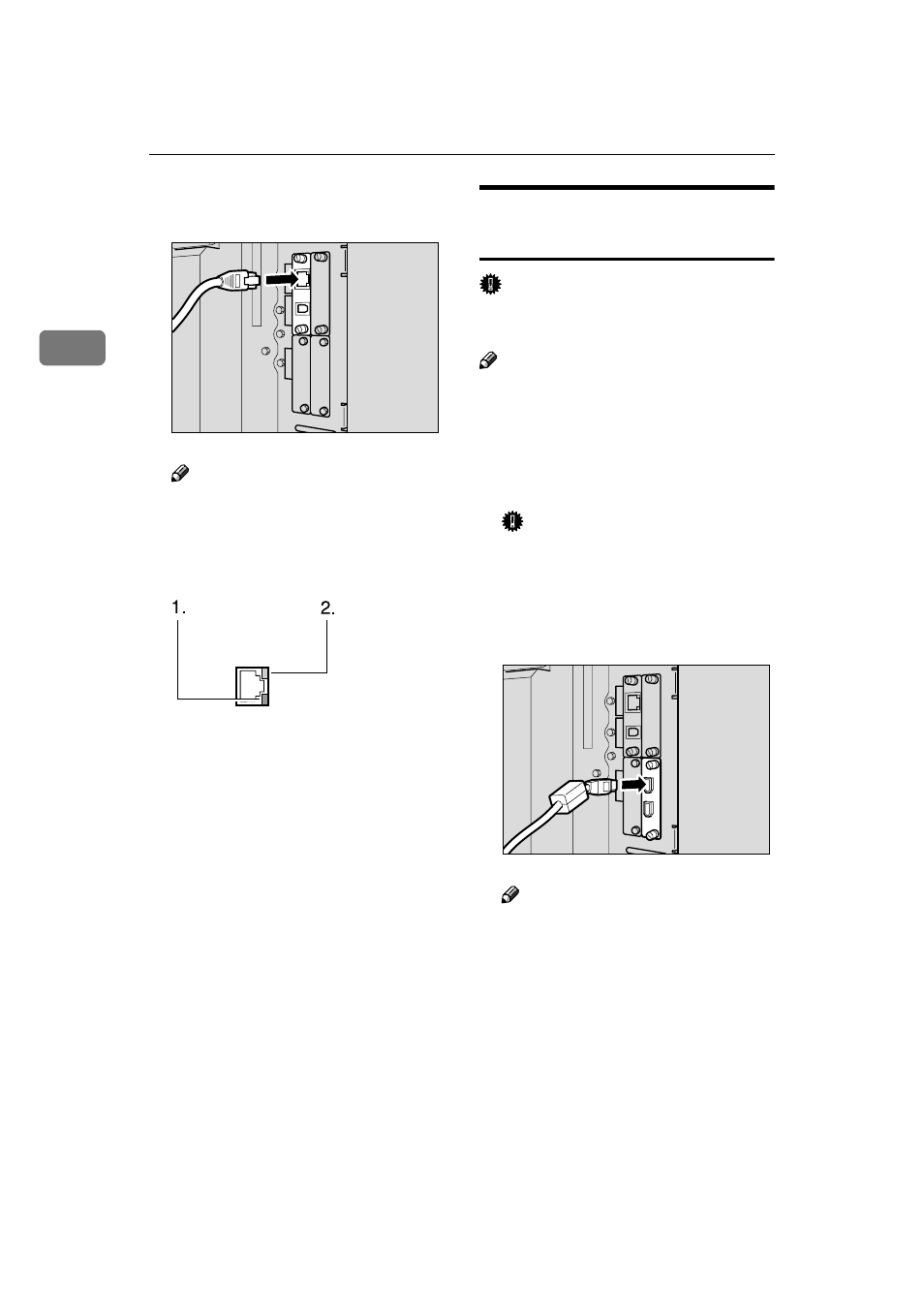

Connect the Ethernet interface cable
to the 10BASE-T/100BASE-TX port.
Note
❒ The position of the port differ
depending on the machine type.
C
Turn on the main power switch.
1. Indicator (green)
Remains green when the machine is
properly connected to the network.
2. Indicator (yellow)
Turns yellow when 100 BASE-TX is
operating. Turns off when 10 BASE-T
is operating.
Connecting to the IEEE 1394
Interface
Important
❒ Before making the connection, touch
the metallic part to ground yourself.
Note
❒ Use the interface cable supplied with
the optional IEEE 1394 interface board.
❒ Make sure the interface cable is not
looped.
AAAA
Turn off the main power switch.
Important
❒ Make sure the main power is
off. See “Turning On the Pow-
er”, General Settings Guide.
BBBB
Connect the IEEE 1394 interface
cable to the IEEE 1394 ports.
Note
❒ Two interface ports are available
for connecting the IEEE 1394 in-
terface cable. Either is suitable.
❒ If you have an interface cable
with a ferrite core, connect the
end nearest to the ferrite core to
the machine.
❒ The position of the port differ
depending on the machine type.
CCCC
Turn on the main power switch.
