M3062PT2-EPB User’s Manual 5. Troubleshooting
REJ10J0868-0200 Rev.2.00 January 16, 2006
5. Troubleshooting
This chapter describes how to troubleshoot when this product does not work properly.
5.1 Flowchart to Remedy the Troubles
Figure 5.1 shows the flowchart to remedy the troubles from when power to the emulator is activated until the emulator
debugger starts up. Check this while the user system is disconnected. For the latest FAQs visit the Renesas Tools Homepage.
http://www.renesas.com/en/tools

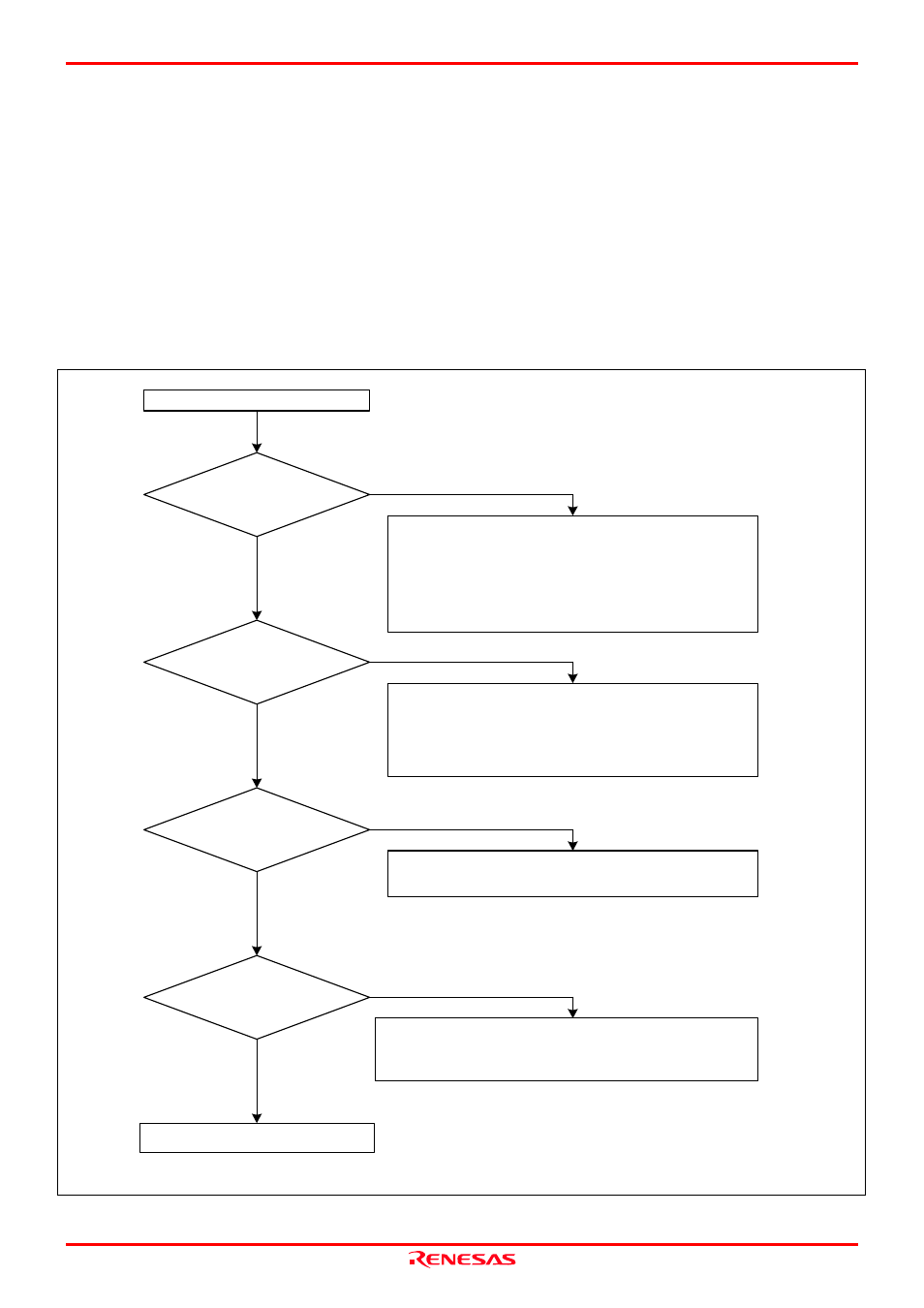

Figure 5.1 Flowchart to remedy the troubles
Turning on emulator
Upper panel LED
of emulator
1. Check the connection of power supply cable.
See “2.5 Connecting the Power Supply for the Emulator ”
(page 24).
2. Check that the power is properly supplied to the use system.
See “2.7 Downloading Firmware” (page 27).
3. Restart the emulator system.
Init dialog box of emulator
debugger displayed
1. Check the operating environment etc. of the emulator
debugger.
See the user’s manual of the emulator debugger.
2. Reinstall the emulator debugger.
MCU Setting dialog box of
emulator debugger
See “5.2.(2) MCU Setting Dialog Box Does Not Appear at
Emulator Debugger Startup
” (page 96).
Program window of emulator
debugger displayed
See “5.2.(3) Errors Occur at Emulator Debugger Startup ” (page 97).
Emulator debugger startup completed
Normal
Normal
Normal
Normal
Not normal
Not normal/Error displayed
Not normal/Error displayed
Error displayed
Page 94 of 102
