2.9 Connecting the User System

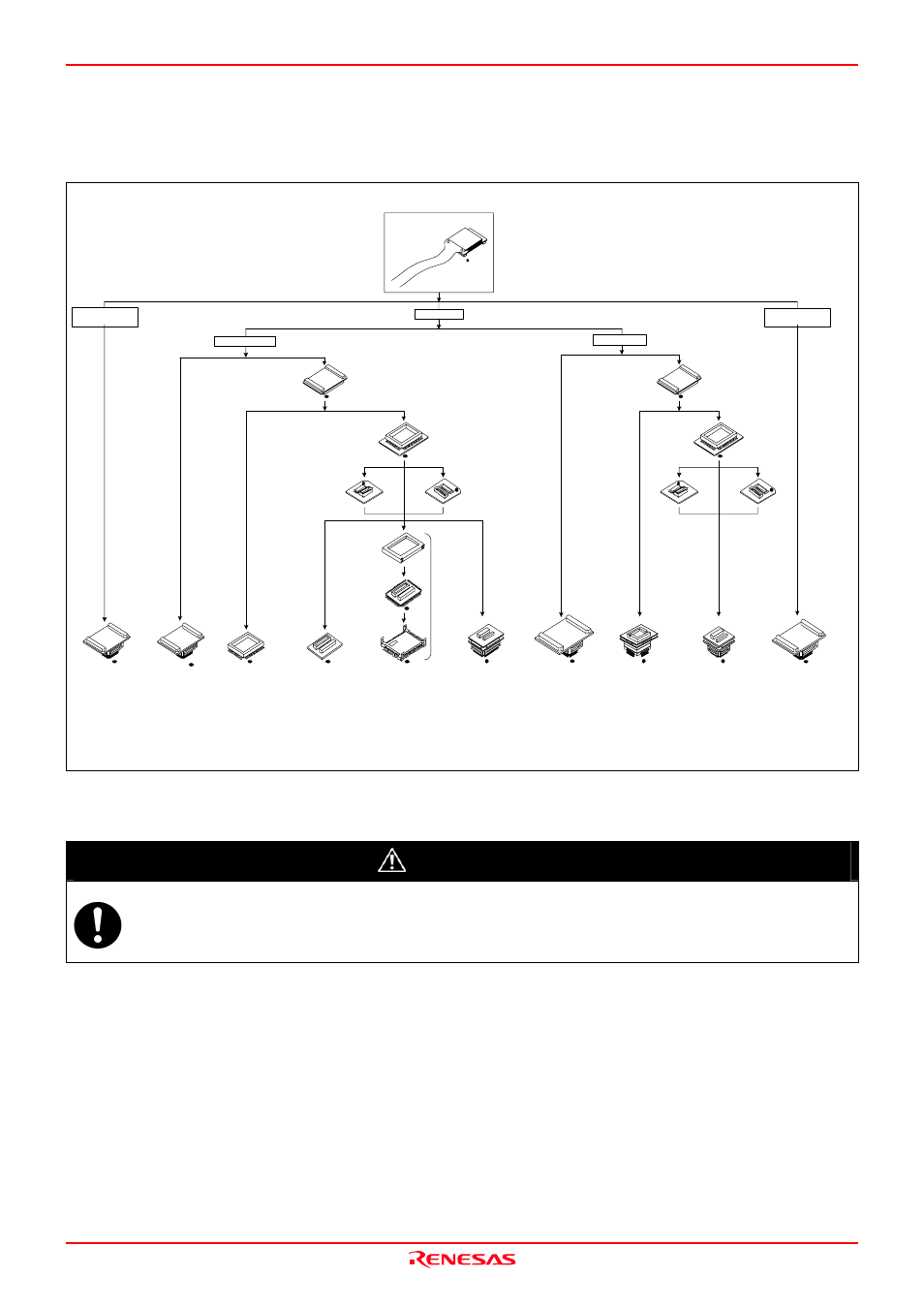

Figure 2.7 shows how to connect this product according to your user system.
Figure 2.7 Connecting the user system according to user system
CAUTION
Note on Connecting the User System:
Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
0.65-mm-pitch 0.5-mm-pitch
M30800T-PTC
(included)
M3T-100LCC-DMS
(not included)
M3T-FLX100-T
(not included)
M3T-FLX100-R
(not included)
●
: No. 1 pin
*1: These three products are included in one pakcage.
*1
LCC socket
100-pin LCC
(included)
M3T-DIRECT100S
100-pin QFP
(not included)
M3T-DUMMY100S
100-pin QFP
(not included)
M3T-FLX-100NRB
100-pin QFP
(not included)
M3T-F160-100NSD
100-pin LQFP
(not included)
M3T-100LCC-QSD
100-pin LQFP
(not included)
M3T-FLX-100NSD
100-pin LQFP
(not included)
M3T-F160-128NRD
128-pin LQFP
(not included)
100-pin 80-pin
0.65-mm-pitch
M3062PT-80FPB
80-pin QFP
(not included)
Emulation pod probe
M3T-F160-100NRB
100-pin QFP
(not included)
128-pin
0.5-mm-pitch
M30800T-PTC
(included)
M3T-100LCC-DMS
(not included)
M3T-FLX100-T
(not included)
M3T-FLX100-R
(not included)
