M3062PT2-EPB User’s Manual 1. Outline
REJ10J0868-0200 Rev.2.00 January 16, 2006
1. Outline
This chapter describes the package components, the system configuration, the specifications of the emulator functions and the
operating environment.
1.1 Package Components
The M3062PT2-EPB package consists of the following items. When unpacking it, check to see if your M3062PT2-EPB
contains all of these items.
Table 1.1 Package components
Item Quantity
M3062PT2-EPB emulation probe 1
M30800T-PTC (pre-mounted) converter board for 100-pin 0.65-mm-pitch LCC 1
IC61-1004-051 100-pin 0.65-mm-pitch LCC socket made by Yamaichi Electronics Co., Ltd. 1
OSC-3 (16MHz) oscillator circuit board 1
OSC-2 oscillator circuit bare board 1
Network registers for ports P0--P5 pullup (51kΩ x 8) 1
H/W Tool Customer Registration Sheet (English) 1
H/W Tool Customer Registration Sheet (Japanese) 1
M3062PT2-EPB User’s Manual (this manual) 1
M3062PT2-EPB User’s Manual (Japanese) 1
M3062PT2-EPB Supplementary Document (English) 1
M3062PT2-EPB Supplementary Document (Japanese) 1
* Please keep the M3062PT2-EPB's packing box and cushion material in your place for reuse at a later time when sending
your product for repair or other purposes. Always use these packing box and cushion material when transporting this
product.
* If there is any question or doubt about the packaged product, contact your local distributor.
* For purchasing the IC61-1004-051 or for technical information, contact Yamaichi Electronics Co., Ltd.
http://www.yamaichi.com/

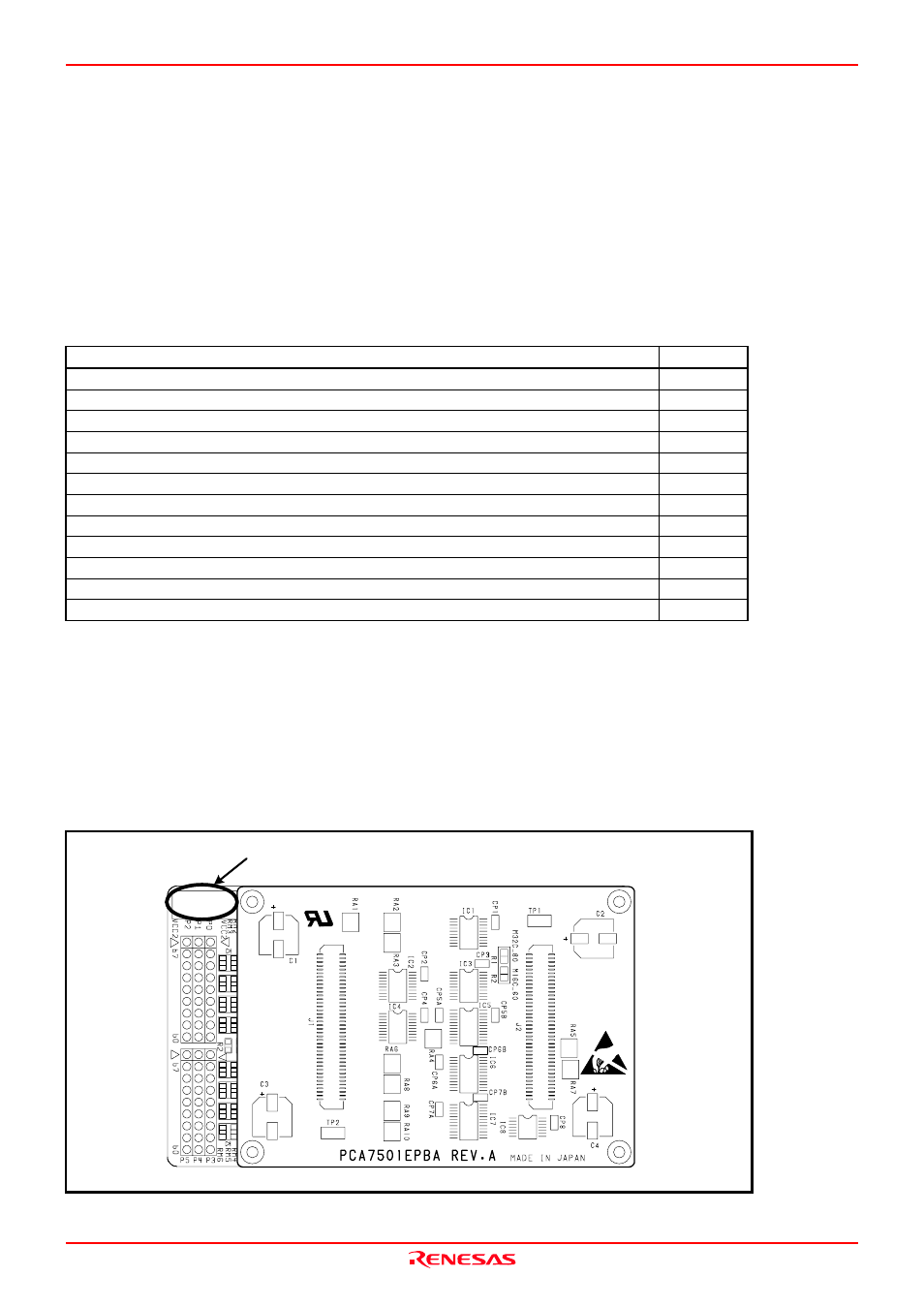

* To distinguish the other emulation probe for M16C/60 Series, “512” is printed on the corner of this product. Figure 1.1
shows the printed area.
Figure 1.1 Printed area on the M3062PT2-EPB
512
"512" is printed here.
Page 13 of 102
