2.9.7 Connecting to a 100-pin 0.5-mm-pitch Foot Pattern (Part 1)
Here following is a procedure of connecting to a 100-pin 0.5-mm-pitch foot pattern on the user system using the M3T-F160-
100NSD (not included). For details on the M3T-F160-100NSD (not included), refer to its user's manual.
(1) Attach the NQPACK100SD-ND included with the M3T-F160-100NSD to the user system.
(2) Attach the YQPACK100SD included with the M3T-F160-100NSD to the NQPACK100SD-ND and secure it with the YQ-
GUIDE's.
(3) Attach the CN2 side of the M3T-F160-100NSD to the J4 side of the M3062PT2-EPB.
(4) Attach the M3T-F160-100NSD to the YQPACK100SD.

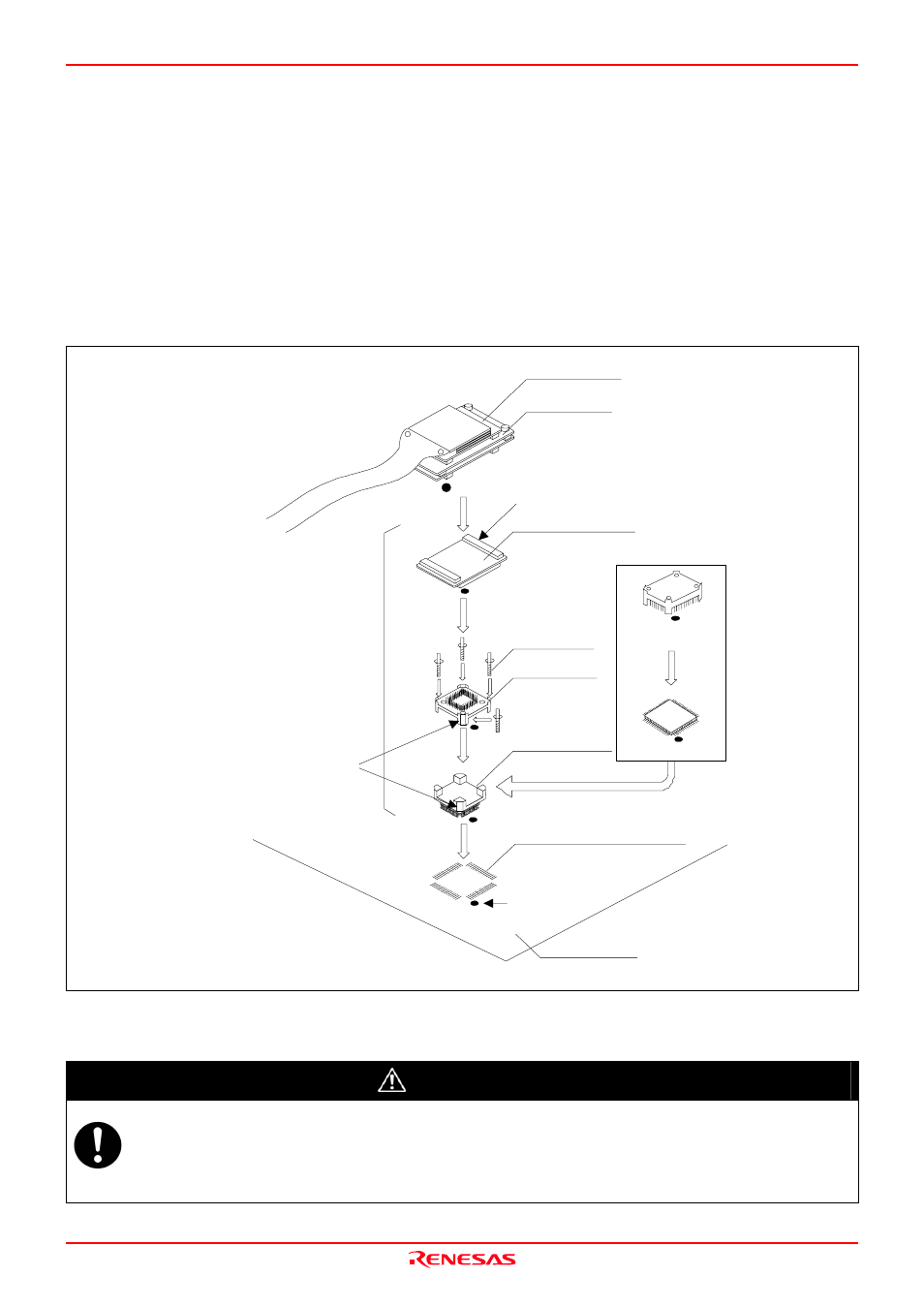

Figure 2.14 Connecting to a 100-pin 0.5-mm-pitch foot pattern (Part 1)
CAUTION
Notes on Connecting the User System:
Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
The connectors of the M3T-F160-100NSD are guaranteed for only 50 insertion/removal iterations.
*
CN2 side
(3)
(1)
100-pin 0.5-mm-pitch
(PLQP0100KB-A) foot pattern
No. 1 pin
User system
M3T-F160-100NSD
(not included)
Flash version MCU etc.
Evaluation with
actual MCU
*: These four products are available in one package.
YQPACK100SD
NQPACK100SD-ND
HQPACK100SD
(not included)
(3)
(4)
YQ-GUIDE (x4)
These corners are not round.
M3T-FLX160-EPB
M3062PT2-EPB
