M3062PT2-EPB User’s Manual 2. Setup
REJ10J0868-0200 Rev.2.00 January 16, 2006
2.4 Connecting the PC7501

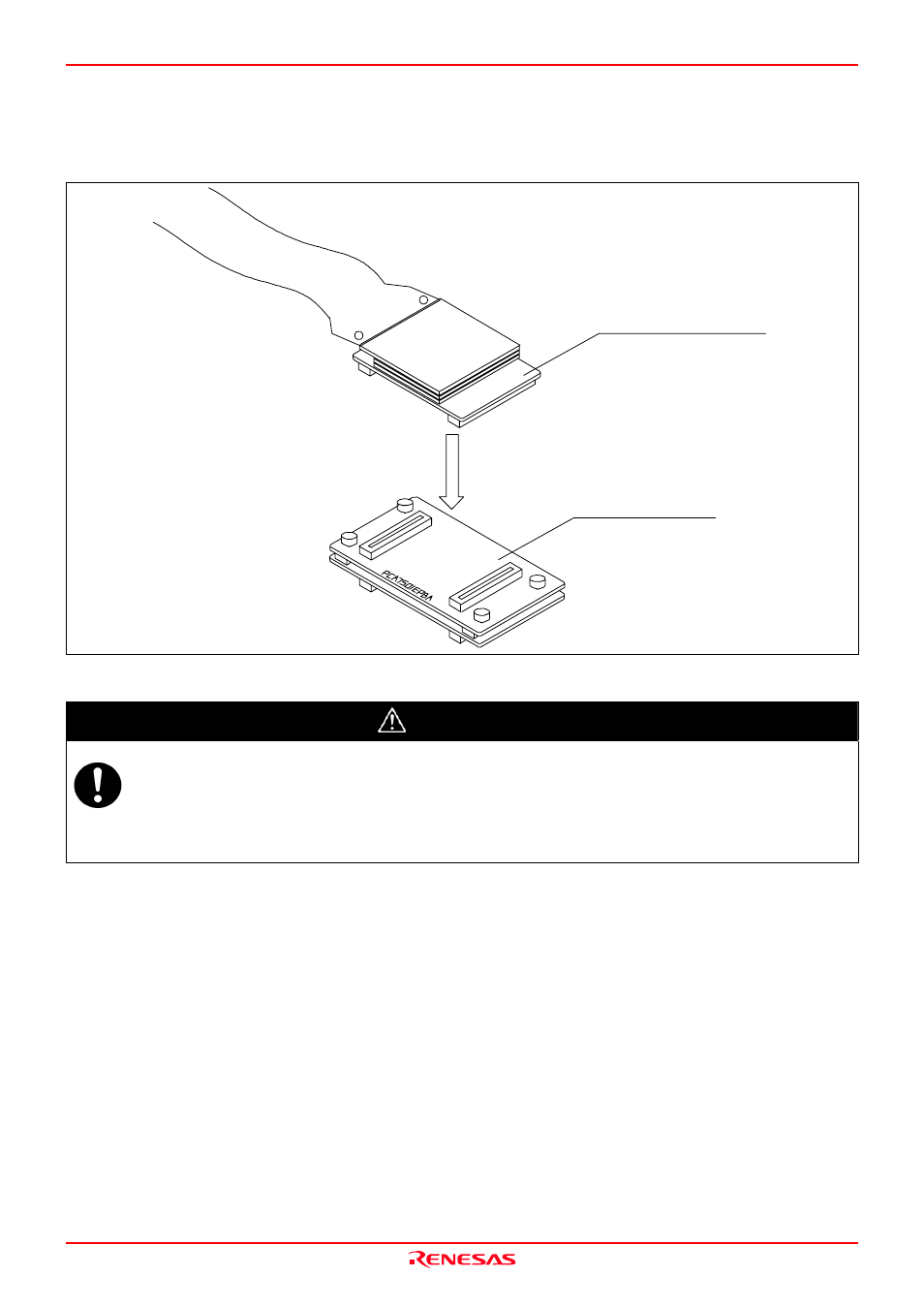

Figure 2.3 shows how to connect the PC7501 and the emulation probe.
M3T-FLX160-EPB
M3062PT2-EPB
Figure 2.3 Connecting the PC7501 and emulation probe
CAUTION
Cautions for Connecting the PC7501:
When connecting the emulation probe, be sure to hold the both sides of the emulation probe horizontally and
insert it directly.
Always shut OFF power before connecting the emulation probe. Otherwise, internal circuits may be damaged.
The connectors of the M3062PT2-EPB are guaranteed for only 50 insertion/removal iterations.
