M3062PT2-EPB User’s Manual 2. Setup
REJ10J0868-0200 Rev.2.00 January 16, 2006
2.10.2 A/D Conversion Bypass Capacitors
There is a foot pattern on the M3062PT2-EPBM board for mounting bypass capacitors for the A/D conversion circuit near the
MCU. Mount suitable bypass capacitors as occasion demands. Figure 2.19 shows where they are installed and the
configuration of this product.

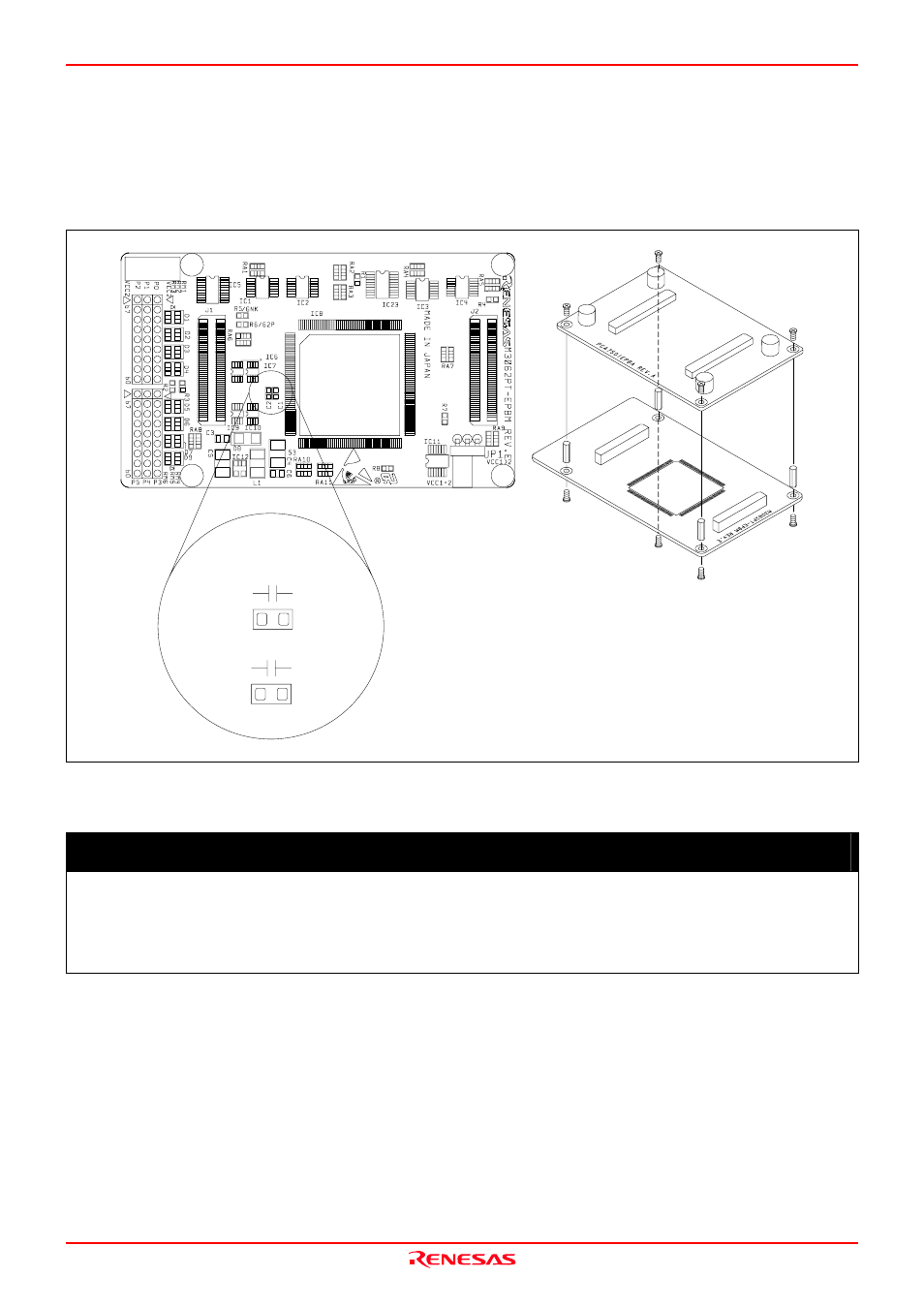

Figure 2.19 Foot pattern for A/D conversion bypass capacitors and the configuration of this product
IMPORTANT
Note on the A/D Converter:
Because a converter board and other devices are used between the evaluation MCU and the user system, the
A/D converter operates differently from that of an actual MCU. Make the final evaluation of the A/D converter
with an actual MCU.
Front side of the M3062PT2-EPBM
V REF -AV SS bypass capacitor
AV SS V REF
C2
AV CC -AV SS bypass capacitor
AV CC AV SS
C1
512
