M3062PT2-EPB User’s Manual
4. Hardware Specifications
REJ10J0868-0200 Rev.2.00 January 16, 2006
(3) Timing Requirements
Table 4.7 and Figures 4.6 show timing requirements in memory expansion mode and microprocessor mode.
Table 4.7 Timing requirements
Actual MCU
[ns]
This product
[ns]
Symbol Item
Min. Max. Min. Max.
tsu(DB-RD)
Data input setup time
50
65
tsu(RDY-BCLK)
RDY# input setup time
40
60
tsu(HOLD-BCLK)
HOLD# input setup time
50
70
th(RD-DB)
Data input hold time
0
See left
th(BCLK-RDY)
RDY# input hold time
0
See left
th(BCLK-HOLD)
HOLD# input hold time
0
See left
td(BCLK-HLDA)
HLDA# output delay time
40
See left

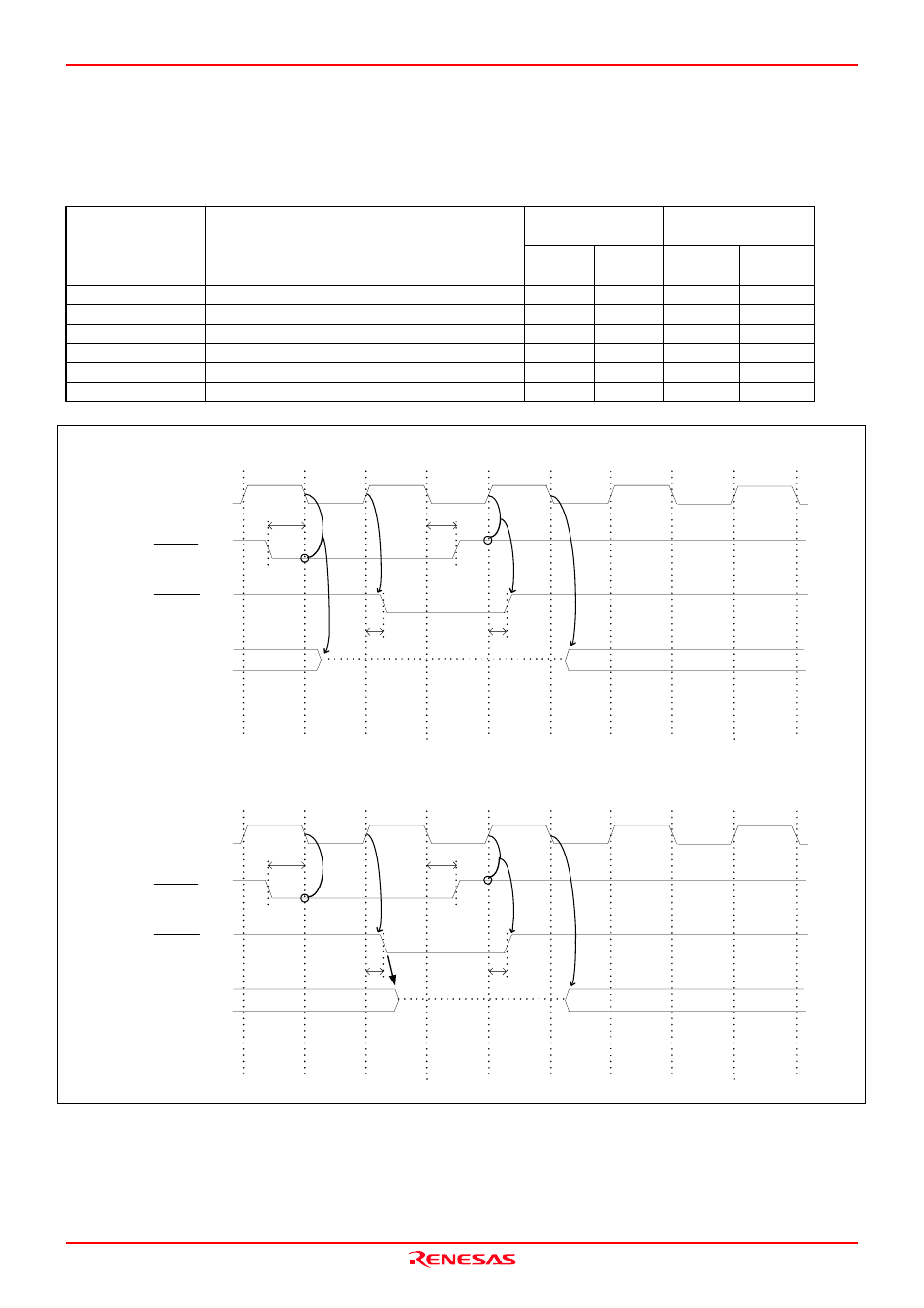

Figure 4.6 Timing requirements
* Compared with an actual MCU, this product enters high-impedance state after a 0.5 cycle delay.
Common to “with wait” and “no wait” (actual MCU)
H i -Z
BCLK
HOLD input
HLDA output
P0,P1,P2,P3,P4,
P5
0
- P5
2
tsu(HOLD-BCLK)
td(BCLK-HLDA)
td(BCLK-HLDA)
th(BCLK-HOLD)
Hi-Z
BCLK
HOLD input
HLDA output
P0,P1,P2,P3,P4,
P5
0
- P5
2
tsu(HOLD-BCLK)
td(BCLK-HLDA)
td(BCLK-HLDA)
th(BCLK-HOLD)
Common to “with wait” and “no wait” (this product)
