2.10 Switch Settings
2.10.1 Switch Settings of the JP1
Set jumper switch JP1 according to a power supply you use. Figure 2.18 shows the positions of jumper switch JP1. Table 2.2
lists how to set the switch.

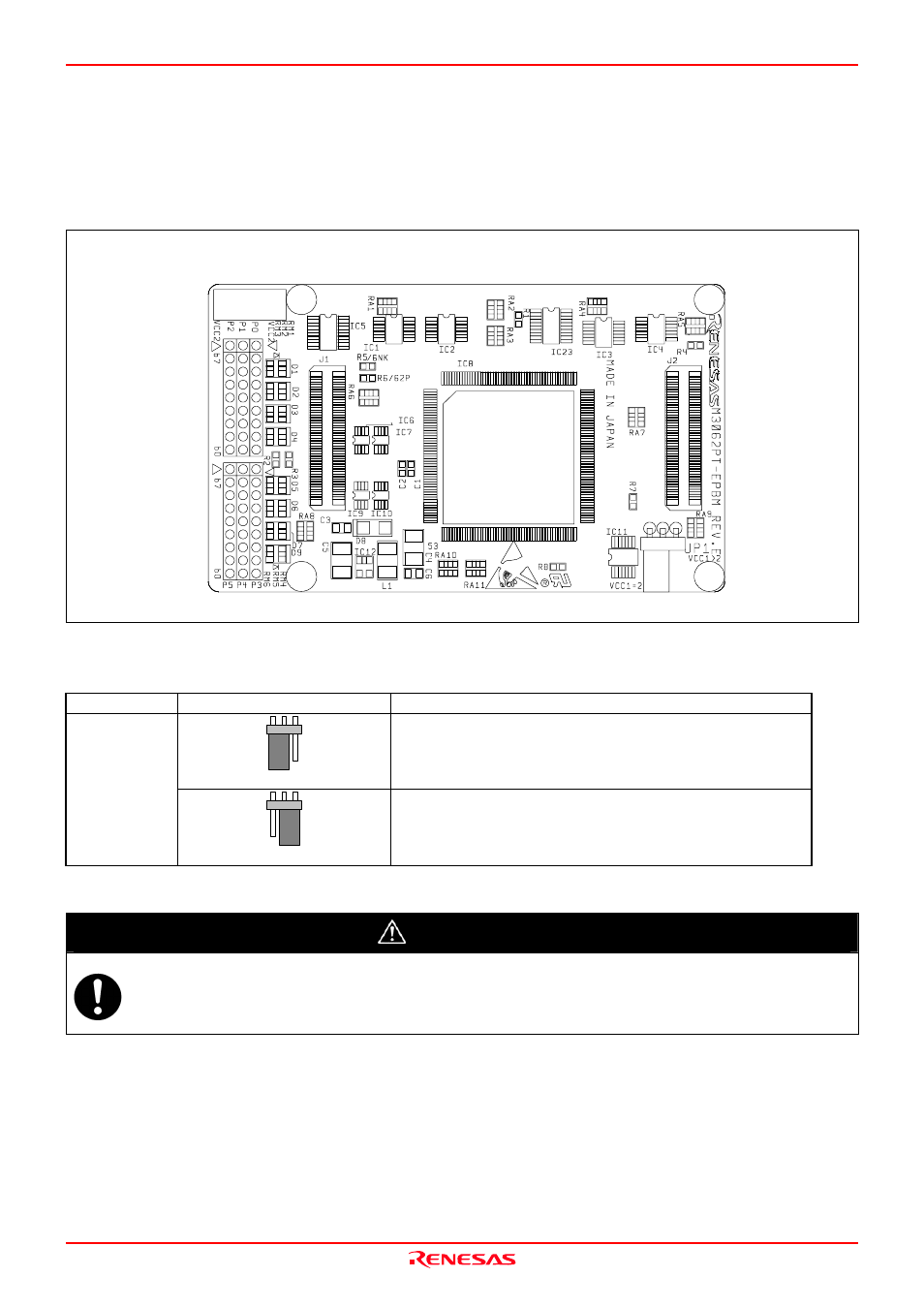

Figure 2.18 Position of the JP1
Table 2.2 Switch settings of the JP1
Switch Setting Voltage
VCC1=2 VCC1>2
(Factory-setting)
2.7 V ≤ Vcc1 = Vcc2 ≤ 5.5 V
JP1
VCC1=2 VCC1>2
Vcc1 = 5.0 ± 0.2 V
and
2.7 V ≤ Vcc2 < Vcc1
CAUTION
When Removing the Upper Cover:
Always shut OFF power when changing the switch settings or connecting the cables. Otherwise the internal
circuit may be damaged.
