M3062PT2-EPB User’s Manual 2. Setup
REJ10J0868-0200 Rev.2.00 January 16, 2006
2.9.1 Connecting to an 80-pin 0.65-mm-pitch Foot Pattern
Here following is a procedure of connecting to an 80-pin 0.65-mm-pitch foot pattern on the user system using the M3062PT-
80FPB (not included). For details on the M3062PT-80FPB (not included), refer to its user's manual.
(1) Attach the NQPACK080SB included with the M3062PT-80FPB to the user system.
(2) Attach the YQPACK080SB included with the M3062PT-80FPB to the NQPACK080SB and secure it with the YQ-
GUIDE's.
(3) Attach the CN2 side of the M3062PT-80FPB to the J4 side of the M3062PT2-EPB.
(4) Attach the M3062PT-80FPB to the YQPACK080SB.

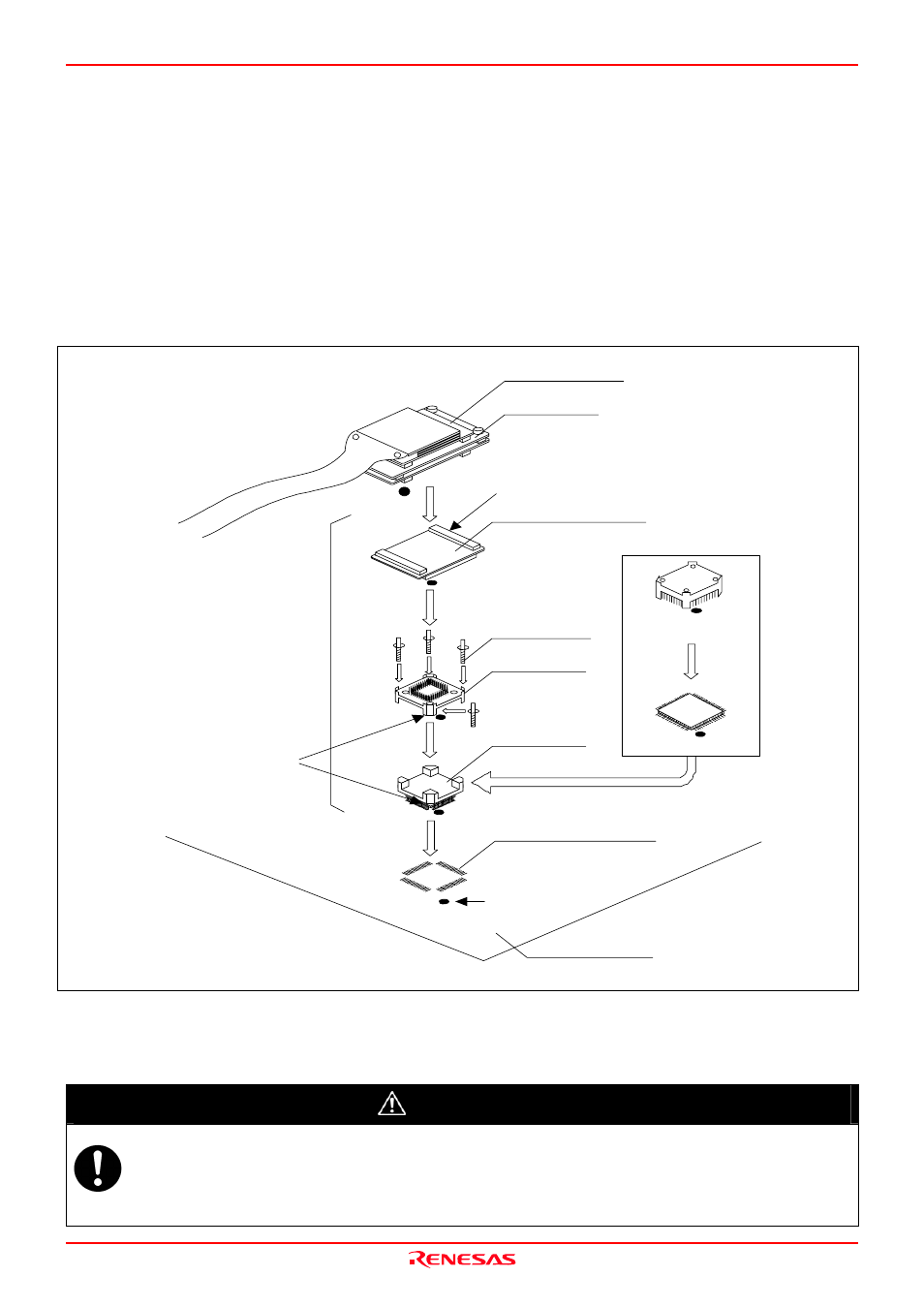

Figure 2.8 Connecting to an 80-pin 0.65-mm-pitch foot pattern
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE and HQPACK are trademarks of Tokyo Eletech Corporation.
CAUTION
Notes on Connecting the User System:
Take care not to attach a converter board in a wrong direction. It may cause a fatal damage to the emulator and
user system.
The connectors of the M3062PT-80FPB are guaranteed for only 50 insertion/removal iterations.
*
CN2 side
(3)
(1)
80-pin 0.65-mm-pitch
(PRQP0080JA-A) foot pattern
No. 1 pin
User system
M3062PT-80FPB (not included)
Flash version MCU etc.
Evaluation with
actual MCU
*: These four products are available in one package.
YQPACK080SB
NQPACK080SB
HQPACK080SB
(not included)
(2)
(4)
YQ-GUIDE (x4)
These corners are not round.
M3T-FLX160-EPB
M3062PT2-EPB
