M3062PT2-EPB User’s Manual 3. Usage (How to Use the Emulator Debugger)
REJ10J0868-0200 Rev.2.00 January 16, 2006
(4) Setting the combinatorial event condition

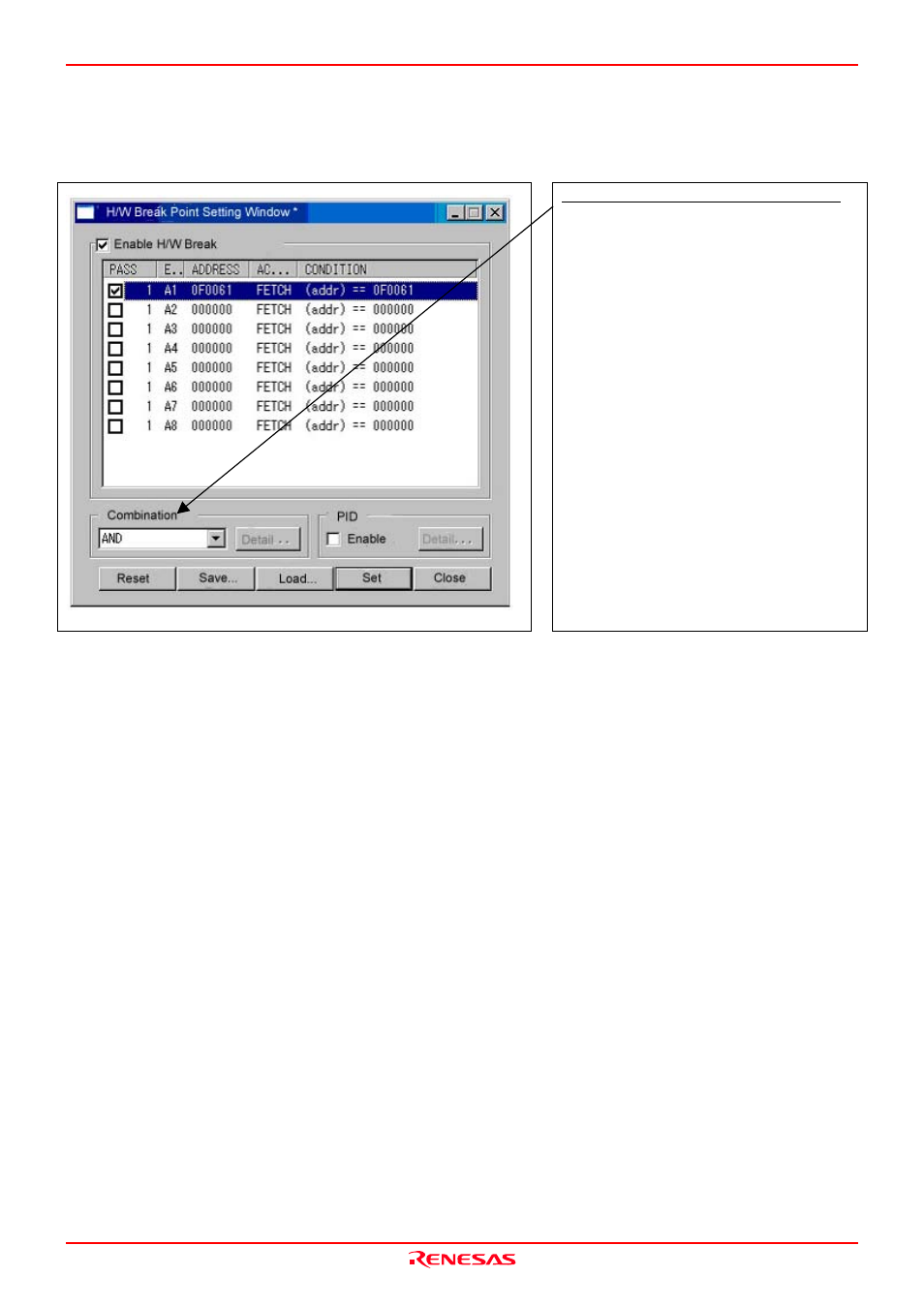

1. Window for setting the combinatorial event condition
Setting the combinatorial event condition
There are following four conditions that you can choose for
the combinatorial events.
- AND
The program breaks when all of the specified events
occur.
- AND (Same Time)
The program breaks when the specified events occur at
the same time.
- OR
The program breaks when one of the specified events
occurs.
- STATE TRANSITION
The program breaks when the state transition diagram
goes into the break state.
For each event, a pass count (number of passing) is
specifiable (1--255). When “AND” (same time) is specified
for Combination, you can not specify the pass count (fixed
to one).
When you have finished setting the combinatorial event
condition, click the “Set” button.
Page 66 of 102
