M3062PT2-EPB User’s Manual 2. Setup
REJ10J0868-0200 Rev.2.00 January 16, 2006
(2) Replacing an Oscillator Circuit Board
1. Remove the four screws of both sides of this product and lift off the upper cover (see Figure 2.21).

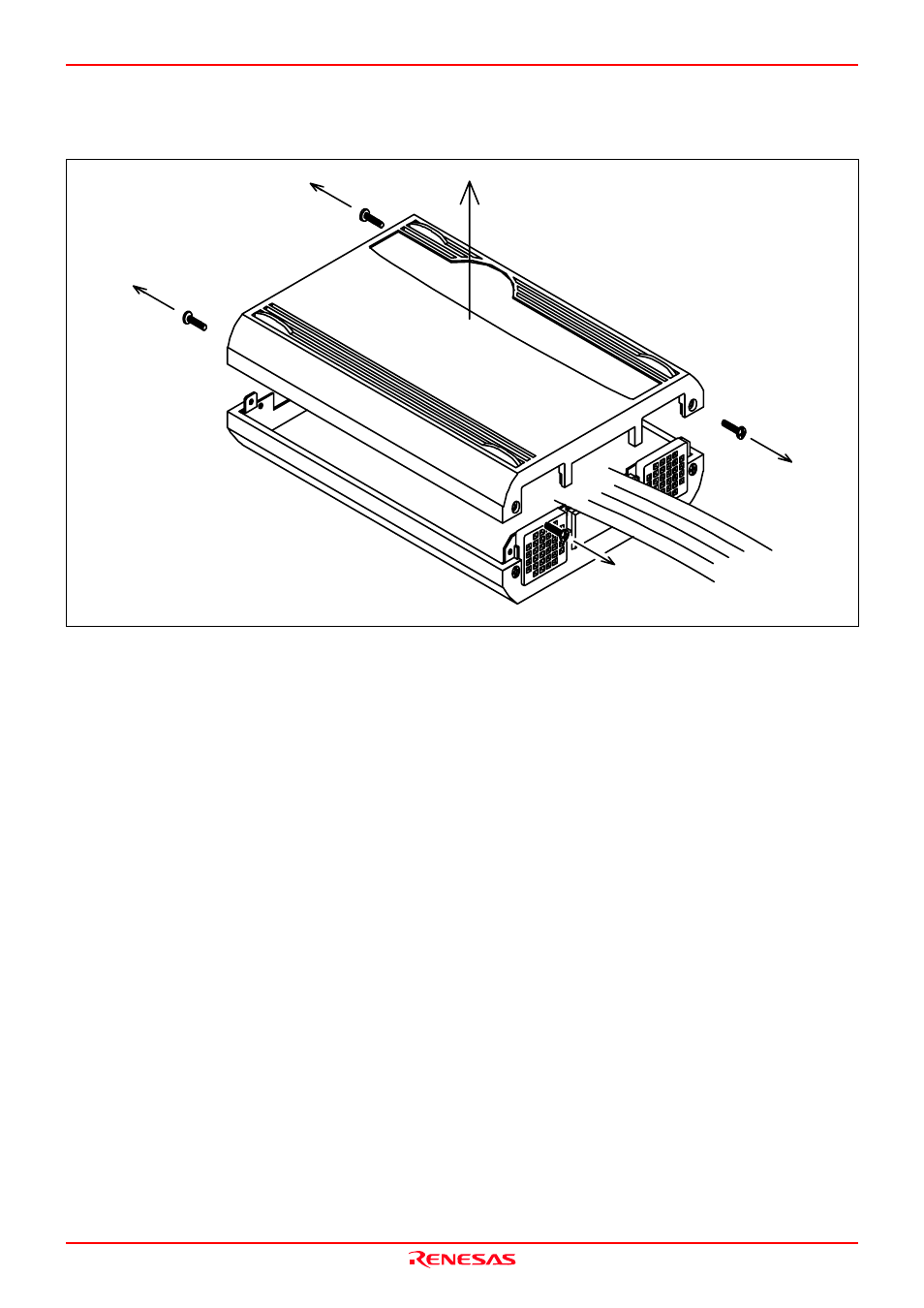

Figure 2.21 Removing the upper cover
