Page 22
M3062PT2-EPB User’s Manual
2. Setup
REJ10J0868-0200 Rev.2.00 January 16, 2006
2.3 Connecting the Host Machine
When connecting the emulator PC7501 to a host machine, you can choose your desired interface from LPT parallel interface,
USB interface and LAN interface. Use the interface selection switch on the emulator PC7501's rear panel to specify your
desired interface. Figure 2.2 shows the outline to connect each interface cable.

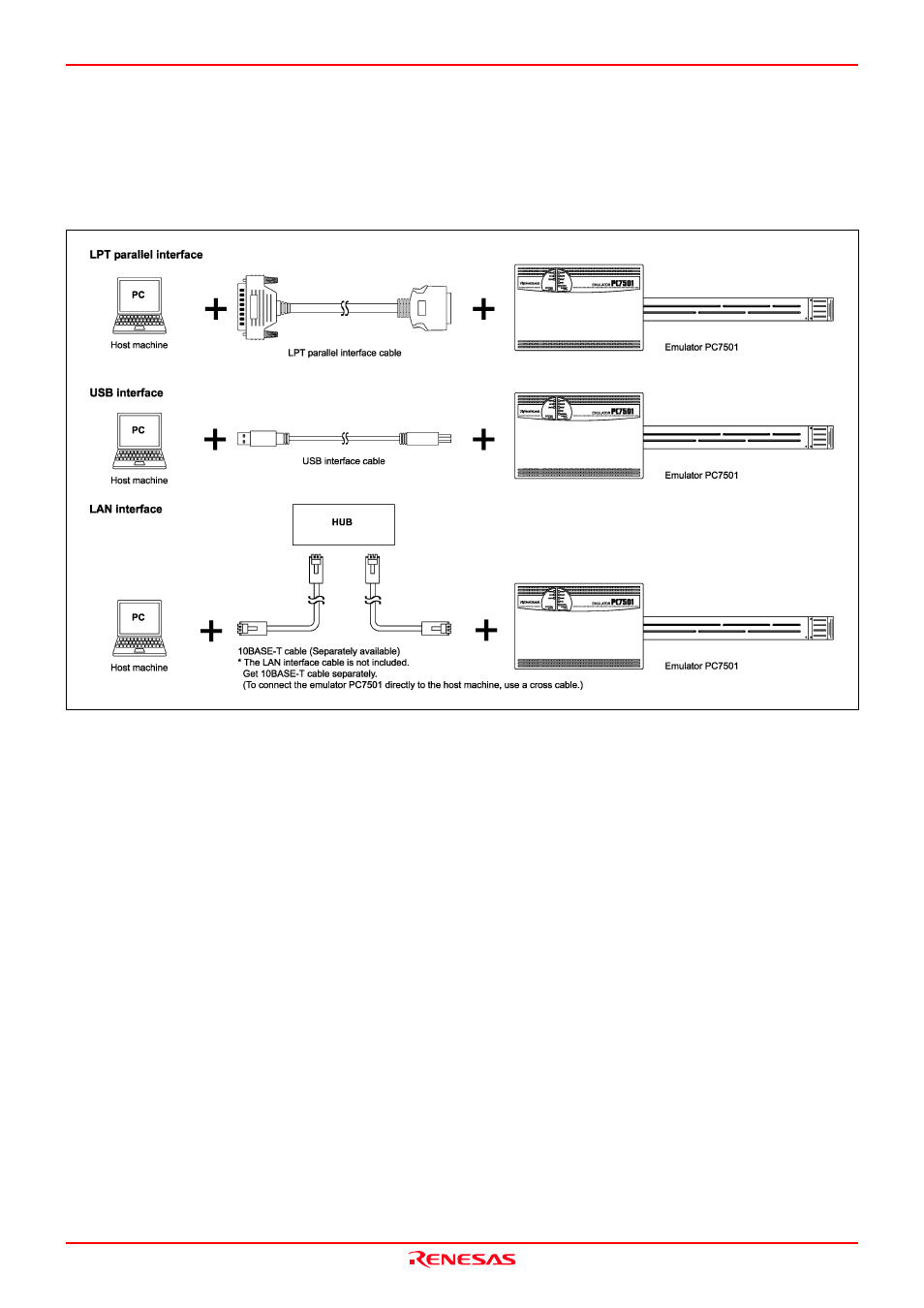

Figure 2.2 Outline for interface cable connections
Page 22 of 102
