1-16 Introducing the NEC Versa
Around the Bottom of the System

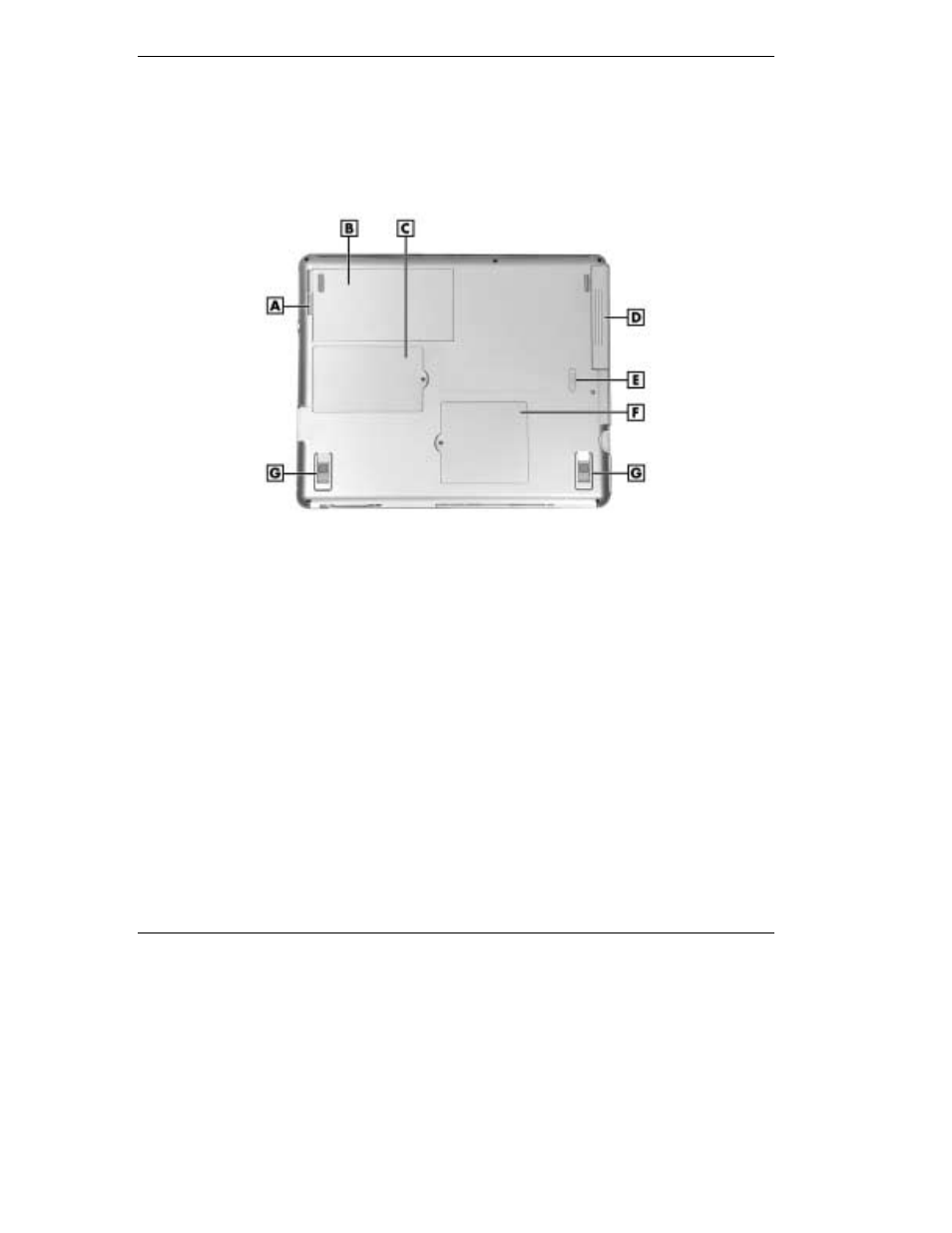

The bottom of the NEC Versa L320 offers the features shown in the following figure.
The features are described after the figure.
Bottom features
A – Battery Release Latch E – VersaBay IV Latch
B – Primary Battery Bay F – Memory Module Bay Cover
C – Mini PCI and MDC Bay Cover G – Tilt Foot
D – NEC VersaBay IV Slot
T Battery Release Latch — Press the latch toward the edge of the system and hold it.
Lift the battery up slightly by its edge and pull the battery toward the edge of the
system to free the battery connectors and remove the battery. Do not lift the battery
straight up.
T Primary Battery Bay — Equipped with a lithium ion (Li-Ion) battery.
T Mini PCI and MDC Bay Cover — Remove the screw to find the Mini PCI or MDC
card.
T NEC VersaBay IV Slot — Houses a CD-ROM, CD-RW, DVD-ROM, combination
CD-RW and DVD-ROM drive, or a second hard disk drive.
T Memory Module Bay Cover — Remove the screw to find two SO-DIMM slots.
One slot contains an SDRAM memory board configured by the factory. The other
slot is empty for upgrade use.
T Tilt Foot — Adjust each foot to provide a flexible keyboard angle.
