5-2. Selecting and Installing Bracket

The card is previously equipped with a full-height PCI bracket. To install the card on a PCI
slot suit to the low profile, the full-height PCI bracket should be replaced with the
low-profile PCI bracket coming with the card.

1.

Remove the screws (2) fixing the full-height PCI bracket to the card.

2.

Remove the full-height PCI bracket.

3.

Install the low-profile PCI bracket on the card.

4.

Fix the low-profile PCI bracket with the screws (2) removed in step 1.

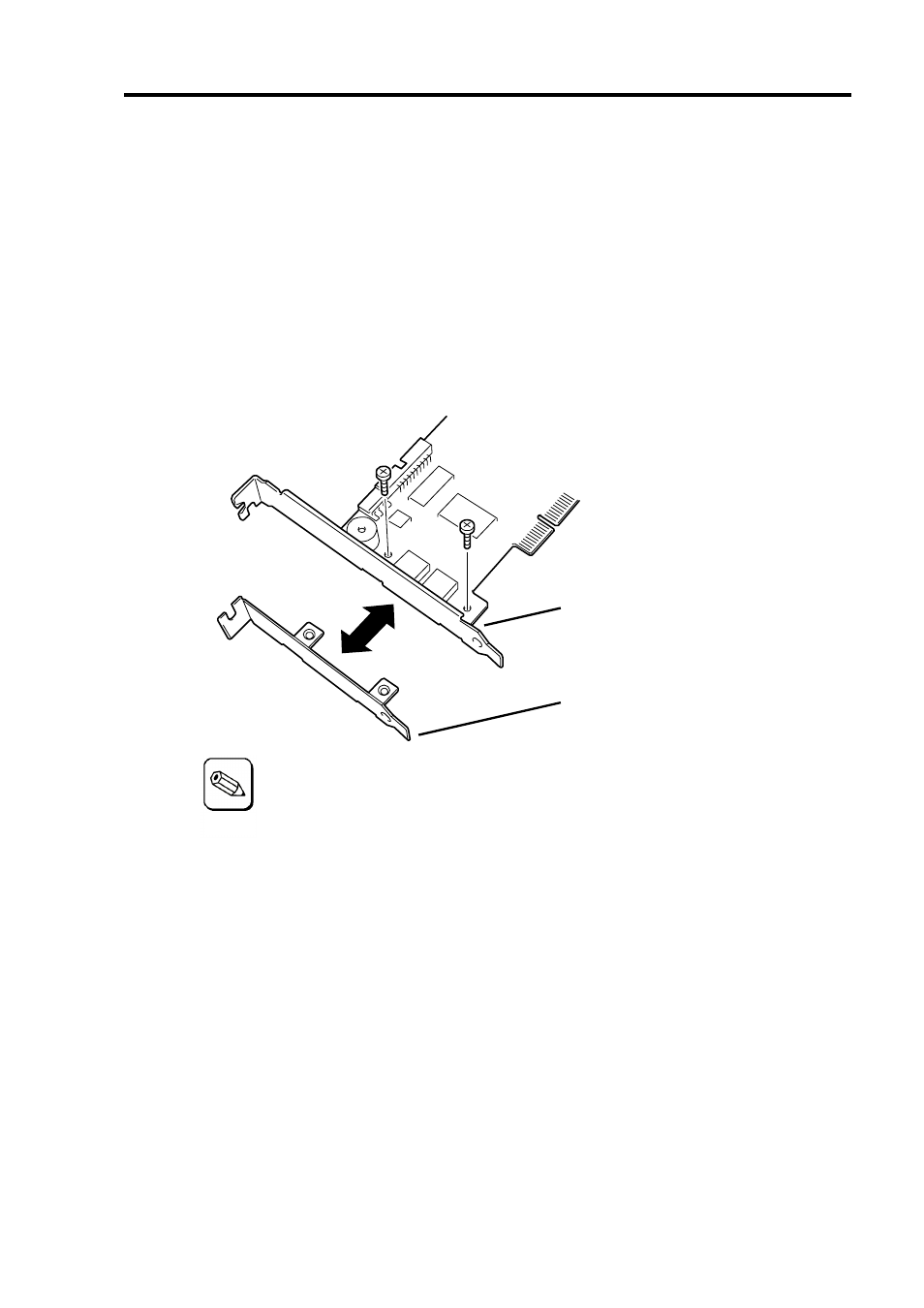

Full-height PCI bracket

Low-profile PCI bracket

Tips

Take the similar procedure to replace the low-profile PCI bracket with the
full-height PCI bracket.
