3. Creating Logical Drive
This section describes the creation of a logical drive on FastBuild Utility.

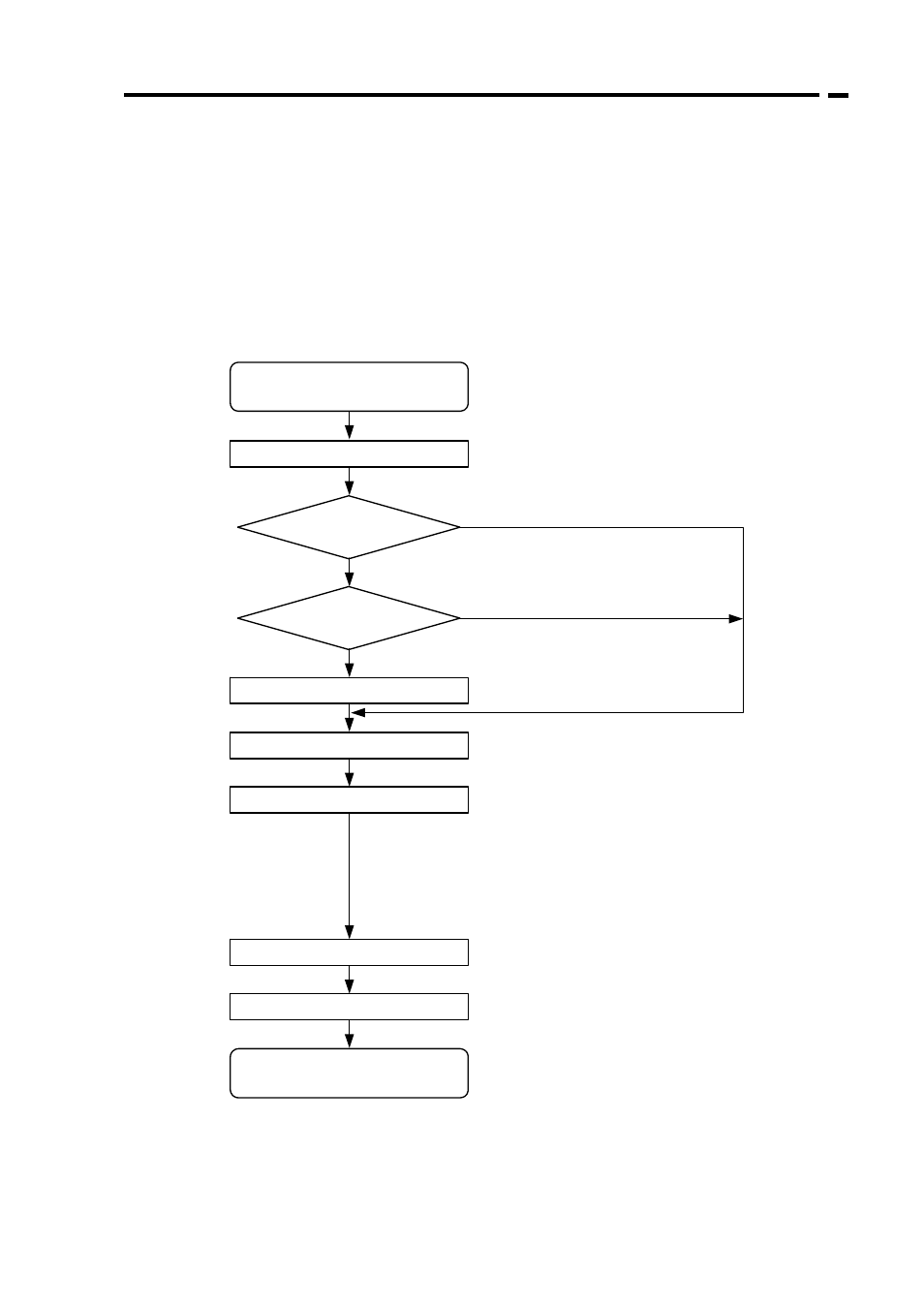

3-1. Job Flow of Creation of Logical Drives
z [Delete LD]
See "2-5. Delete LD."
Start creation of logical drives
Start FastBuild Utility
Are there existing
logical drives?
Yes
Are logical drives
added?
No
Delete logical drives.
Check HDD connections.
Create logical drives.
Set boot procedure.
Reboot server.
End creation of logical drives.
No
Yes
z [View Drive Assignments]
1) Are HDDs are recognized as "free."
2) Checking capacities of didks.
z [Define LD]
1) Setting RAID levels
2) Setting stripe blocks
3) Turning Fast Init ON/OFF.
4) Confirming gigabyte boundary OFF.
5) Setting cache mode.
z [Controller Configuration]
1) Setting Halt On Error
