2. You’re now recommended to take the optional steps of fastening the device to the frame of
the rack (as described above) while it is placed on the shelf, so preventing it from sliding
when inserting cables into connectors on the rear panel.
3.4 Cabling the Mediant 2000
Refer to Section 2 on page 19 for detailed information on the Mediant 2000 rear panel connectors
and LEDs.
Note that the Mediant 2000 is available in many configurations, i.e., AC or DC, in the 16-trunk, 8-
trunk, 4-trunk, 2-trunk or 1-trunk device. The 16-trunk dual AC (
Figure 3-3 ) and the 8-trunk DC
( Figure 3-4 ) configurations are illustrated here as representative products.

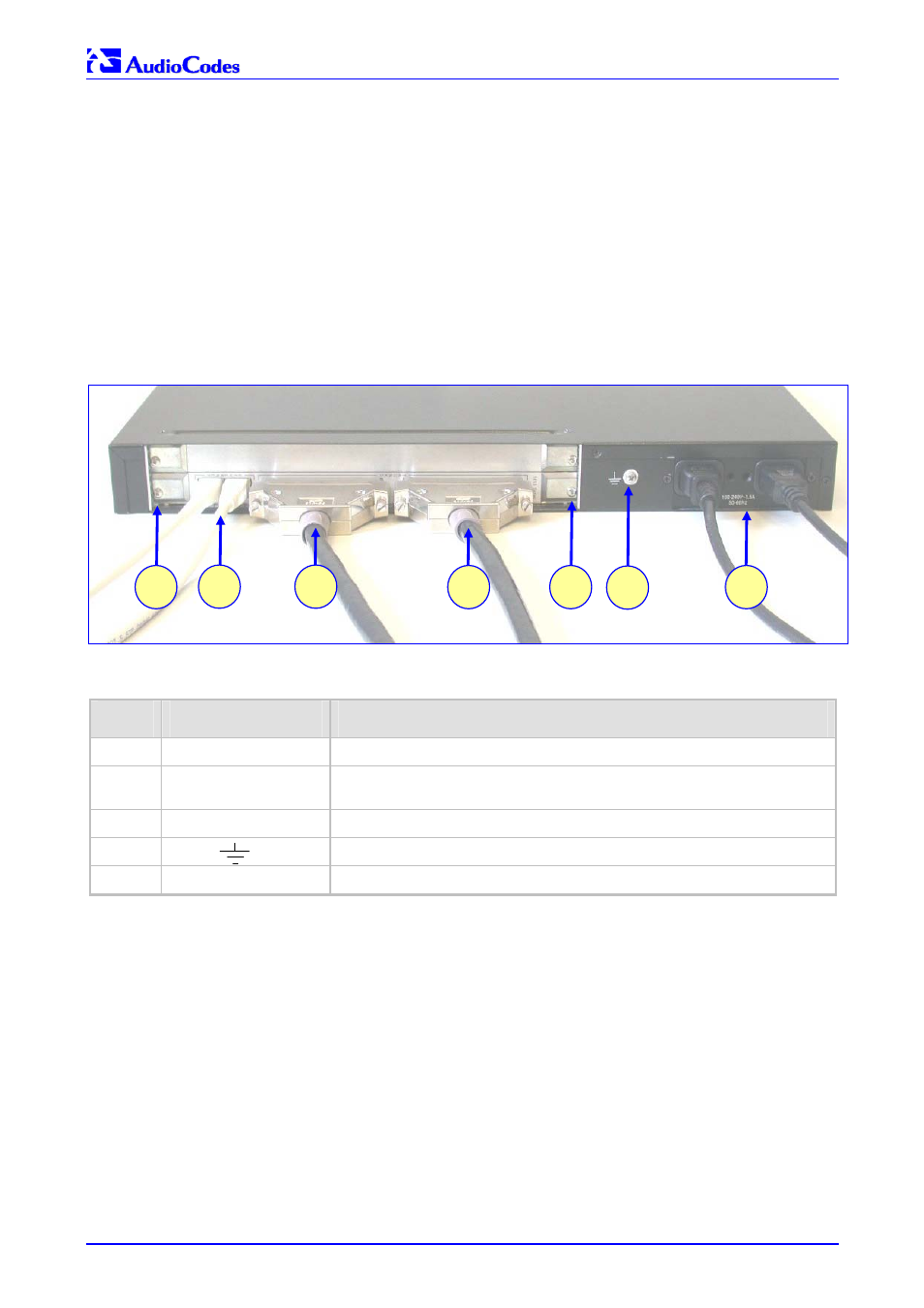

Figure 3-3: Mediant 2000 Rear Panel Cabling (16 Trunks, Dual AC Power)
Table 3-1: Mediant 2000 Rear Panel Cabling (16 Trunks, Dual AC Power) Component Descriptions
Item # Label Component Description
1 RTM locking screws.
2
ETHERNET Two Category 5 network cables, connected to the 2 Ethernet RJ-45
ports.
3 TRUNKS Two 50-pin Telco connector cables, each supporting 8 trunks.
4 Protective earthing screw.
5 100-240~1.5A Dual AC power cables.
5 2 4 3 2 1 1
