Mediant 2000 SIP User’s Manual 2. Mediant 2000 Physical Description
Version 4.4 25 July 2005

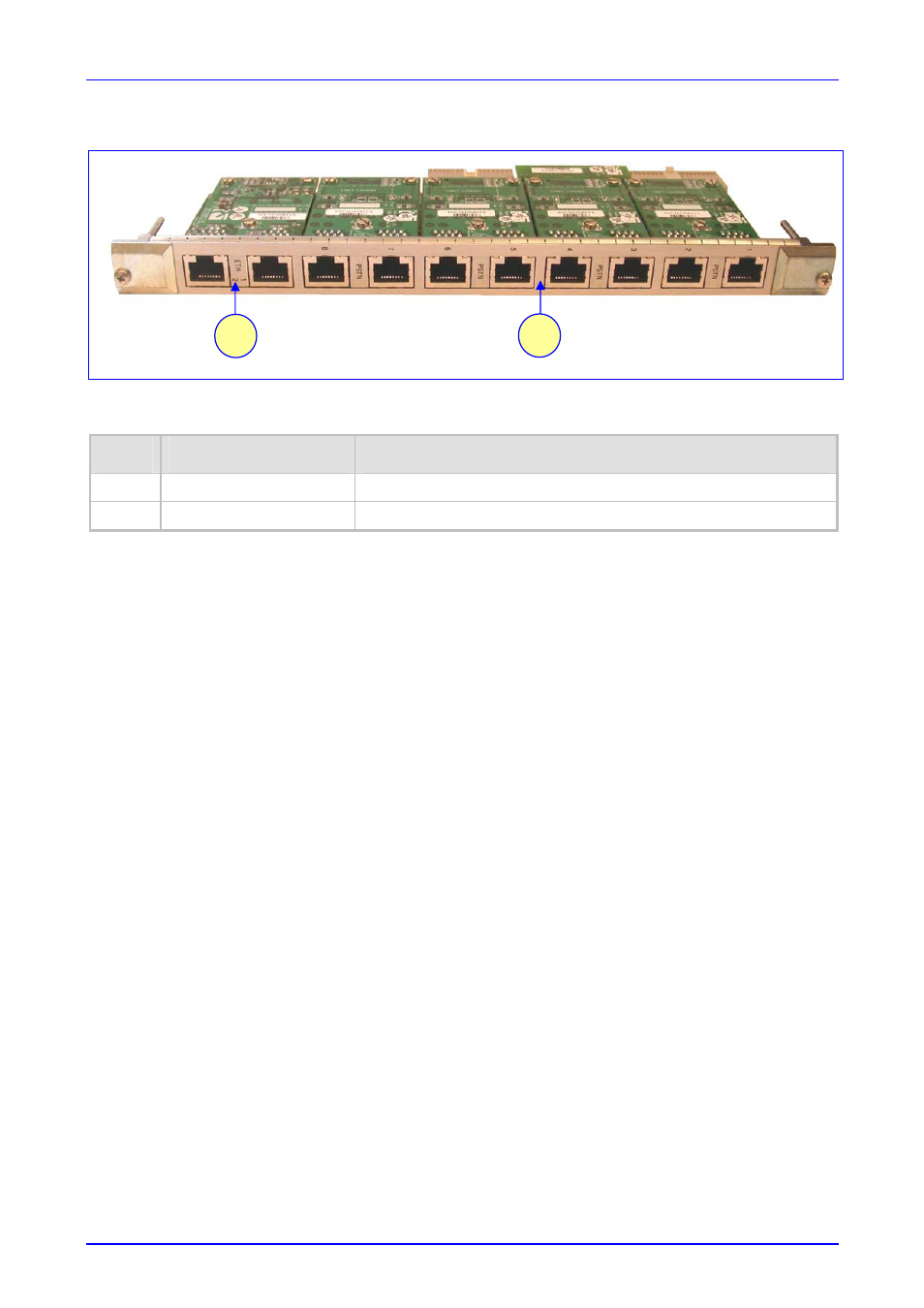

Figure 2-4: Rear Panel with 8 RJ-48c Connectors for 8 Trunks
Table 2-9: Rear Panel with 8 RJ-48c Connectors for 8 Trunks Component Descriptions
Item # Label Component Description
1 ETHERNET 2 Ethernet Ports. 2 RJ-45 network connectors
2 TRUNKS 8 E1/T-1 Spans. 8 RJ-48c trunk connectors
2.5 Optional CPU Board
The Mediant 2000 provides an optional second cPCI slot that can be optionally used for
customer’s CPU board. This CPU board can be used for general applications such as a
Gatekeeper, Softswitch, Application Server or other. The following CPU boards were tested for
compliancy with the Mediant 2000 chassis:
• Sun™: CP2080 + PMC-233 (Ramix™ disk on board) + Rear Transition Module (RTM).
• Intel™ ZT5515B-1A with 40GB on-board disk plus RTM (ZT4807).
1 2
