Installing the BayStack 450 Switch
302401-D Rev 00
2-9
Connecting Fiber Optic Ports
Connect devices to the fiber optic ports as shown in
.
The BayStack 450-12F switch and the (optional) 400-4FX MDA are
100BASE-FX devices. Both products use MT-RJ port connectors with 62.5/125
micron multimode fiber optic cable. The 400-2FX MDA is also a 100BASE-FX
device but uses standard SC port connectors with 62.5/125 micron multimode
fiber optic cable.
The 1000BASE-X MDAs (the 450-1SR/SX and the 450-1-LR/LX) use standard
SC port connection but special consideration is required for 1000BASE-LX
connections (see “1000BASE-LX Multimode Applications on page C-13).

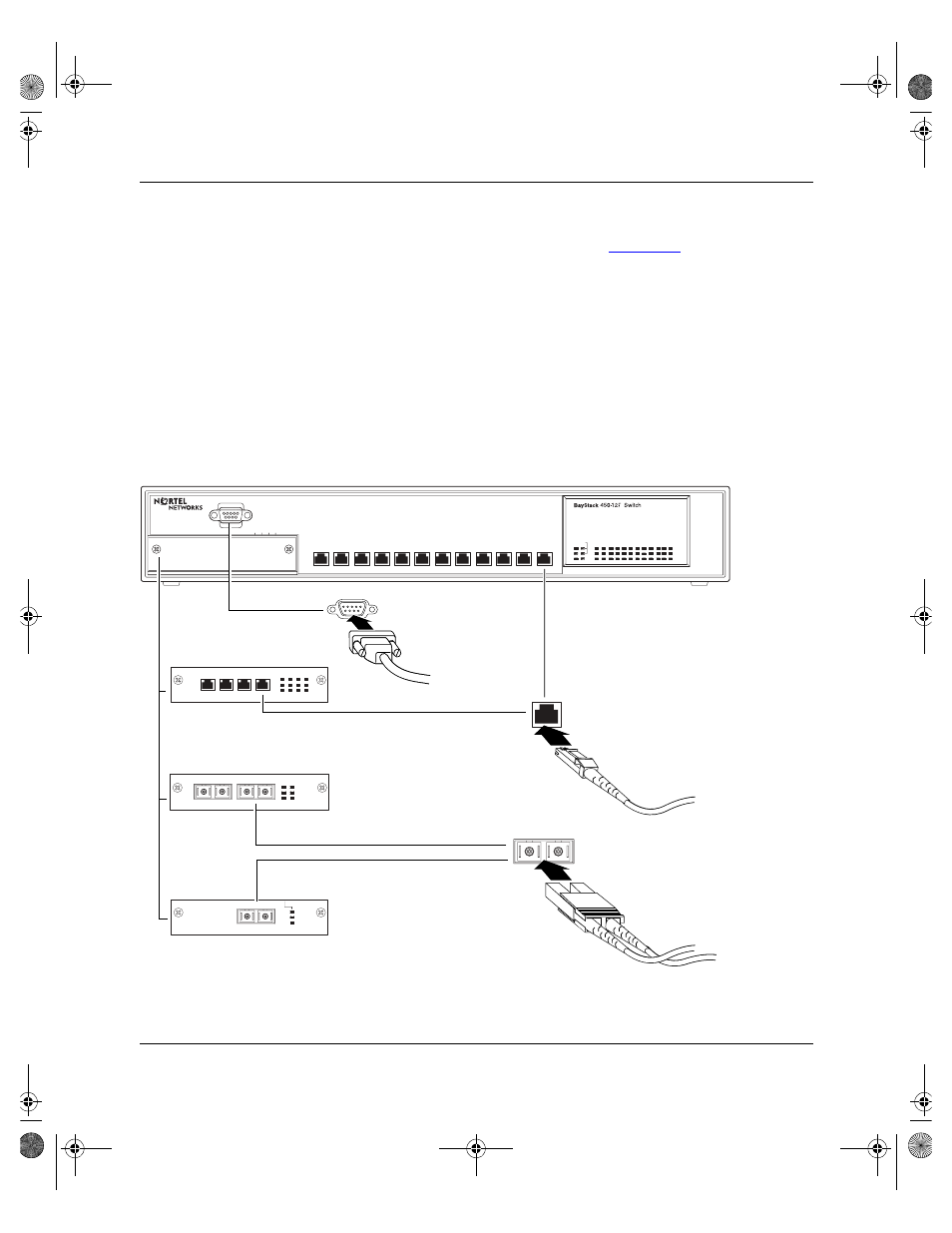

Figure 2-6.
Fiber Optic Port Connections
BS45074A
BayStack 450-12F
Uplink/Expansion Module
16
14
15
13
Comm Port
Status Dwn
Pwr
Up
Cas
RPSU Base
Activity
Link
F Dx
5
7
1
3
9
6
8
2
4
10
12
11
RX
TX
100BASE-FX
RX
TX
100BASE-FX
Activity
Link
F Dx
400-2FX MDA
400-2FX MDA
Activity
Link
F Dx
400-4FX MDA
400-4FX MDA
MT-RJ connector
SC connector
1000BASE-LX
TX
RX
Phy
Link
Activity
450-1LX MDA
450-1LX MDA
Comm Port
