Using the BayStack 450 10/100/1000 Series Switch
1-74 302401-D Rev 00
If switch S2’s trunk member port 11 is physically disconnected and then
reconnected to port 13, the Spanning Tree Port Configuration screen for switch S1
changes to show port 6 in the Blocking state (
Figure 1-49 ).

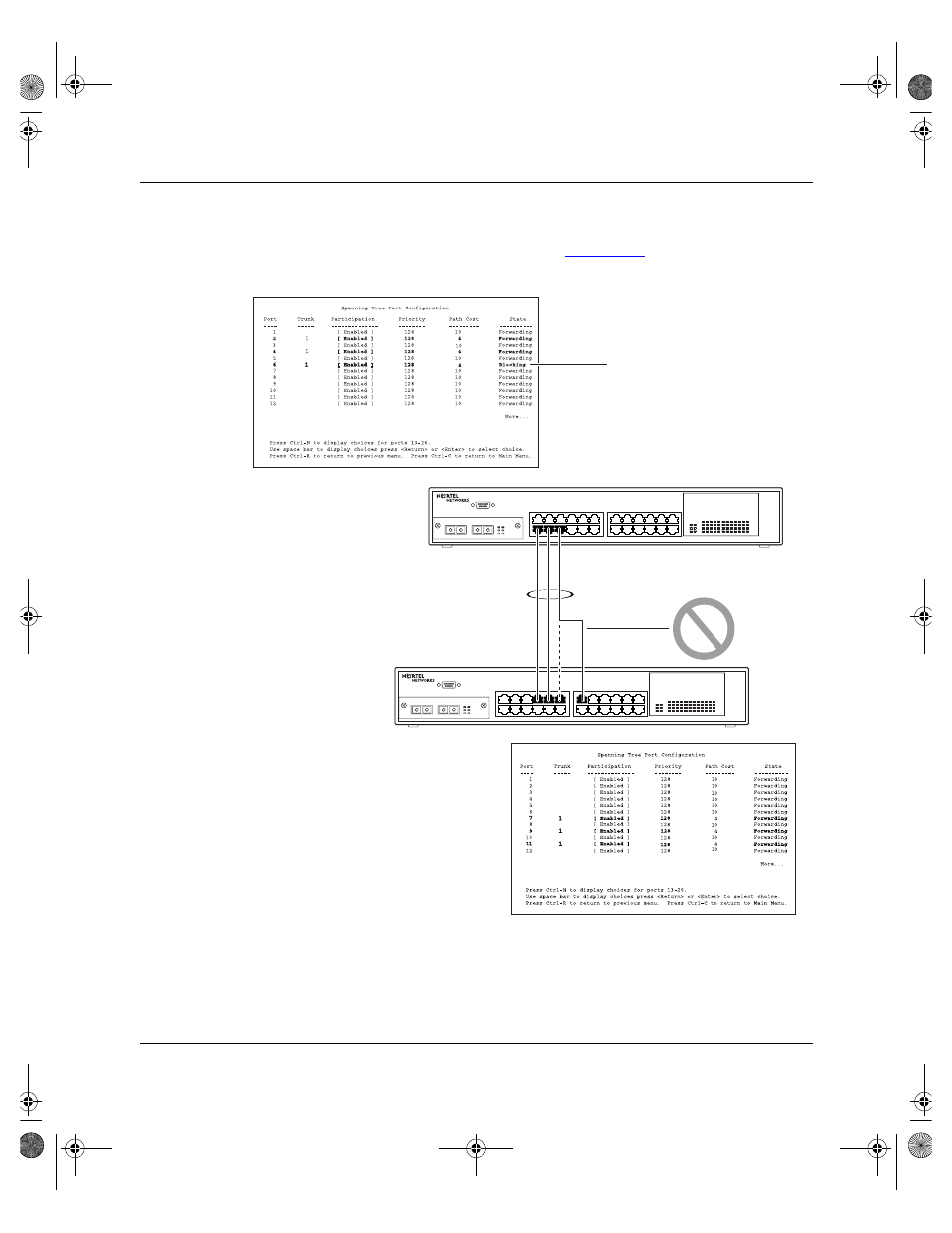

Figure 1-49. Example 2: Detecting a Misconfigured Port
S1
S2
T1
S1 Port Configuration screen
BS45031A
S2 Port Configuration screen
[Blocking]
