Nortel Networks Sun Fire V210 (RoHS) User Manual
Page 86
NN42020-310 MCS 5100 3.5 Standard 1.0 June 2006
86
Copyright © Nortel Networks Limited 2006

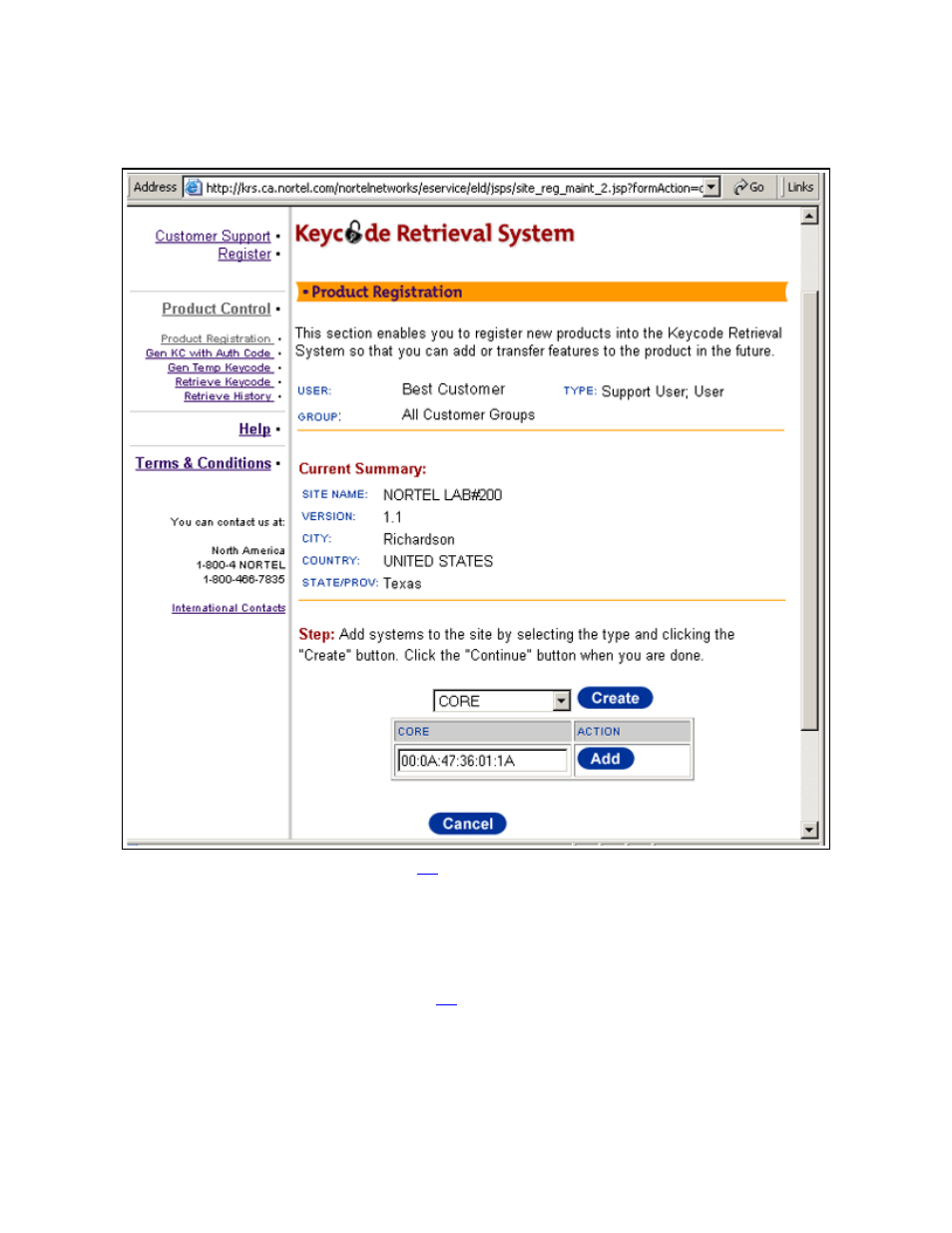

Figure 22 Keycode Retrieval System, Adding MAC address
11
Repeat Step
for the second MAC address (required). If you
make an error, you can remove one or both and begin again. If
you have a second Core that is going to be installed as a
redundant server enter all four MAC addresses at this time.
12
When finished you will need to select Create again to enter the
Media Application Server's MAC addresses, enter those just as
you did in Step
13
Enter both MAC addresses of the Media Application Server, if
you are installing one, and click Continue. For more information
on the Media Application Server, refer to the Media Application
