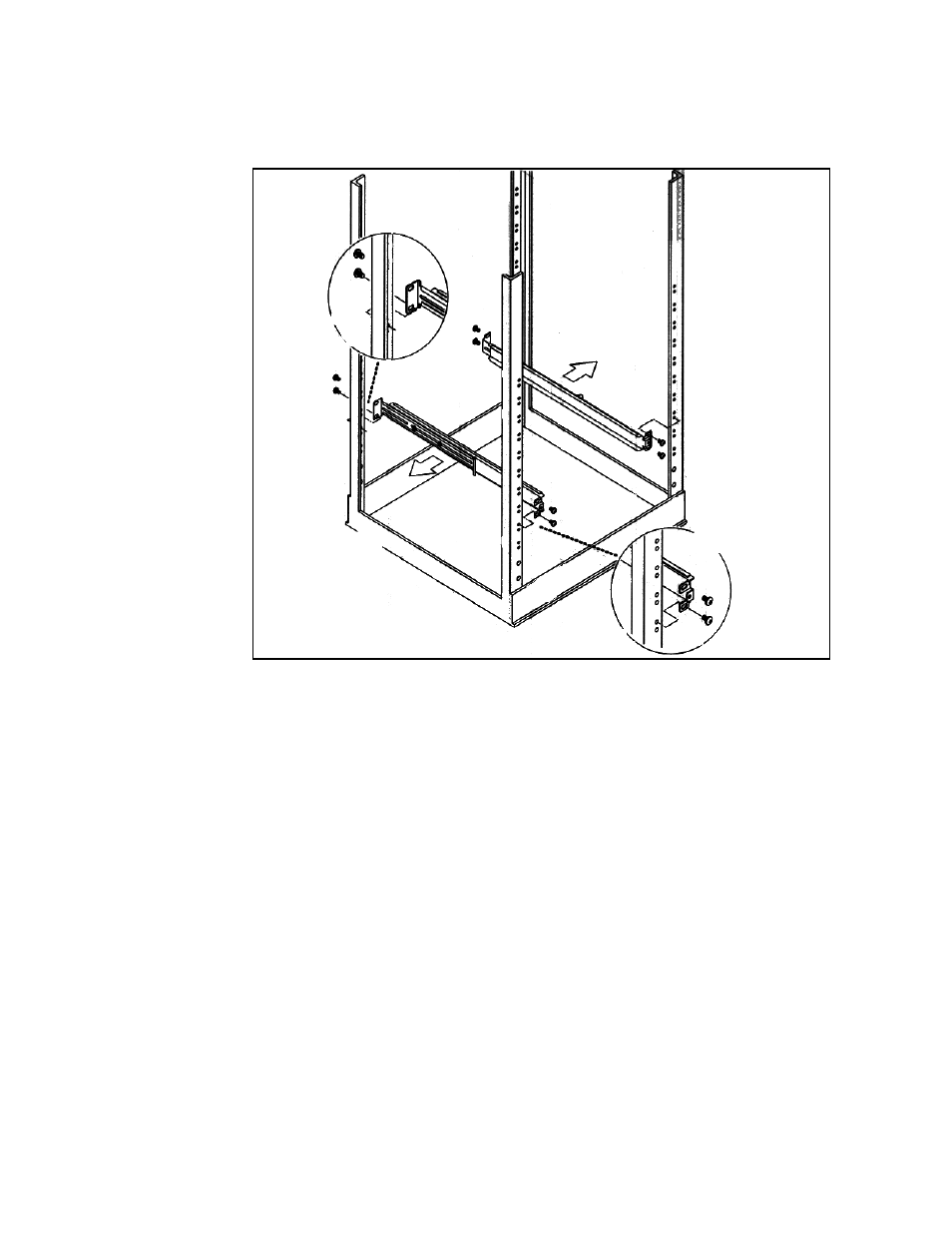

Figure 4 MCS 5100 19-inch rack
Connecting the Sun Fire V210 server to the layer-2 switch
Procedure 2 Connecting the V210 server to the layer-2 switch
At the back of the Sun Fire V210 server,
1
Connect the Sun Fire V210 server Net 0 and Net 1 ports to the
layer-2 switch using Ethernet, cat-5 cables.
