Chapter 5: Configuration
Configuring The Bar Code Decoding Symbology Presets
150 Ikôn Rugged PDA (Windows CE 5.0) User Manual

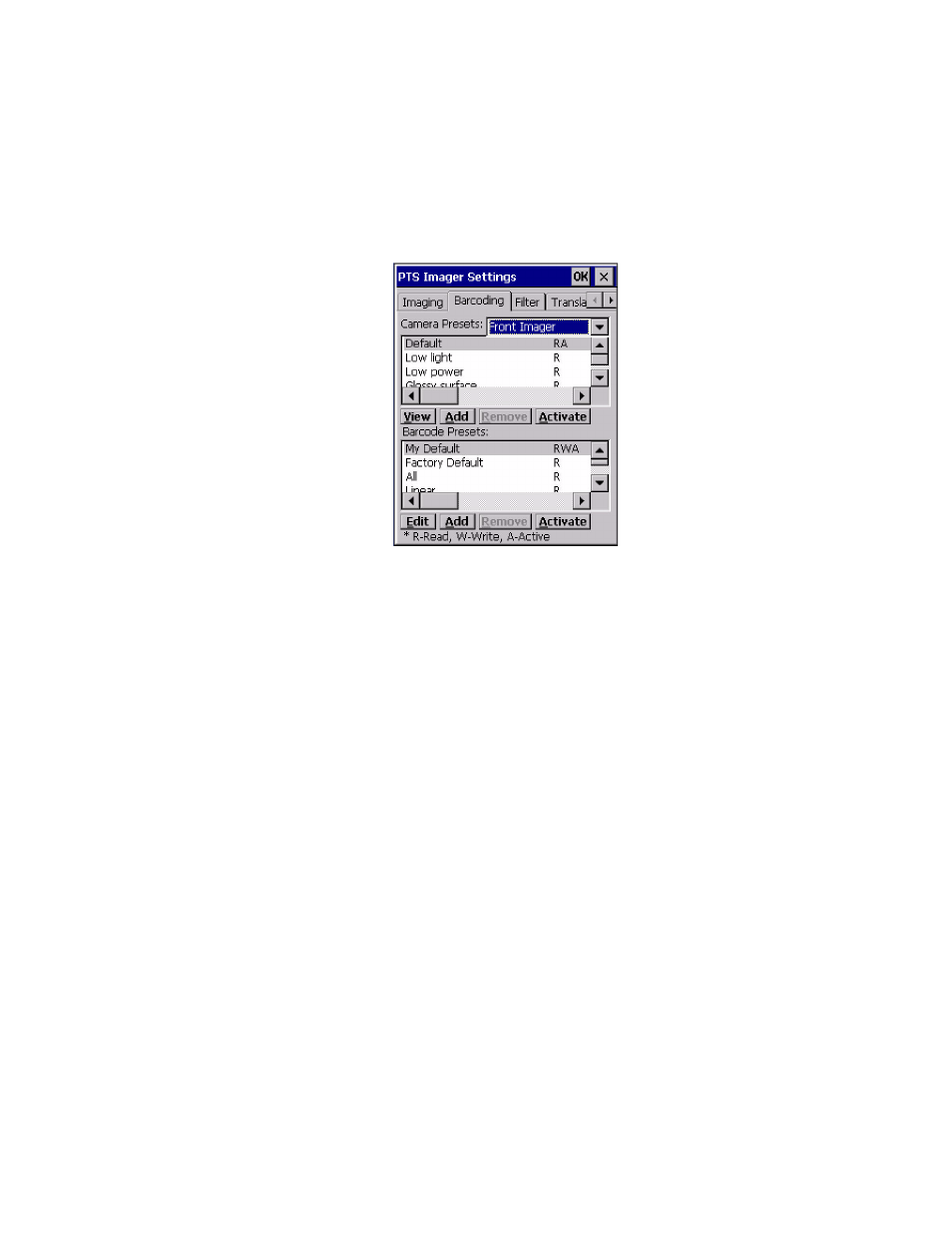

The following window opens:
This window lists all the presets, both the predefined and the custom ones. Presets are iden-
tified as follows:
•
Predefined presets are marked as read-only.
• Custom presets are marked as read and write.
• One preset—either predefined or custom—is marked as active.
When you have completed all the changes, do one of the following:
•
Click OK to exit and save the changes, or
• Click the Close button to exit without saving the changes.
5.13.3.1 Selecting A Camera
If the Ikôn has more than one built-in camera, one camera must be selected for configura-
tion. The cameras is selected as follows:
1. Expand the Camera Presets list to view the camera options.
2. Select a camera.
5.13.3.2 Setting The Active Preset
The active preset is used at startup by the demonstration program and by any other applica-
tion program. An application can change the active preset to another preset using Teklogix
Imagers. To set the active preset, do the following:
1. Select a preset.
