Sample Configurations

G-9

3910-A2-GN32-40

September 1998

Extended Diagnostics

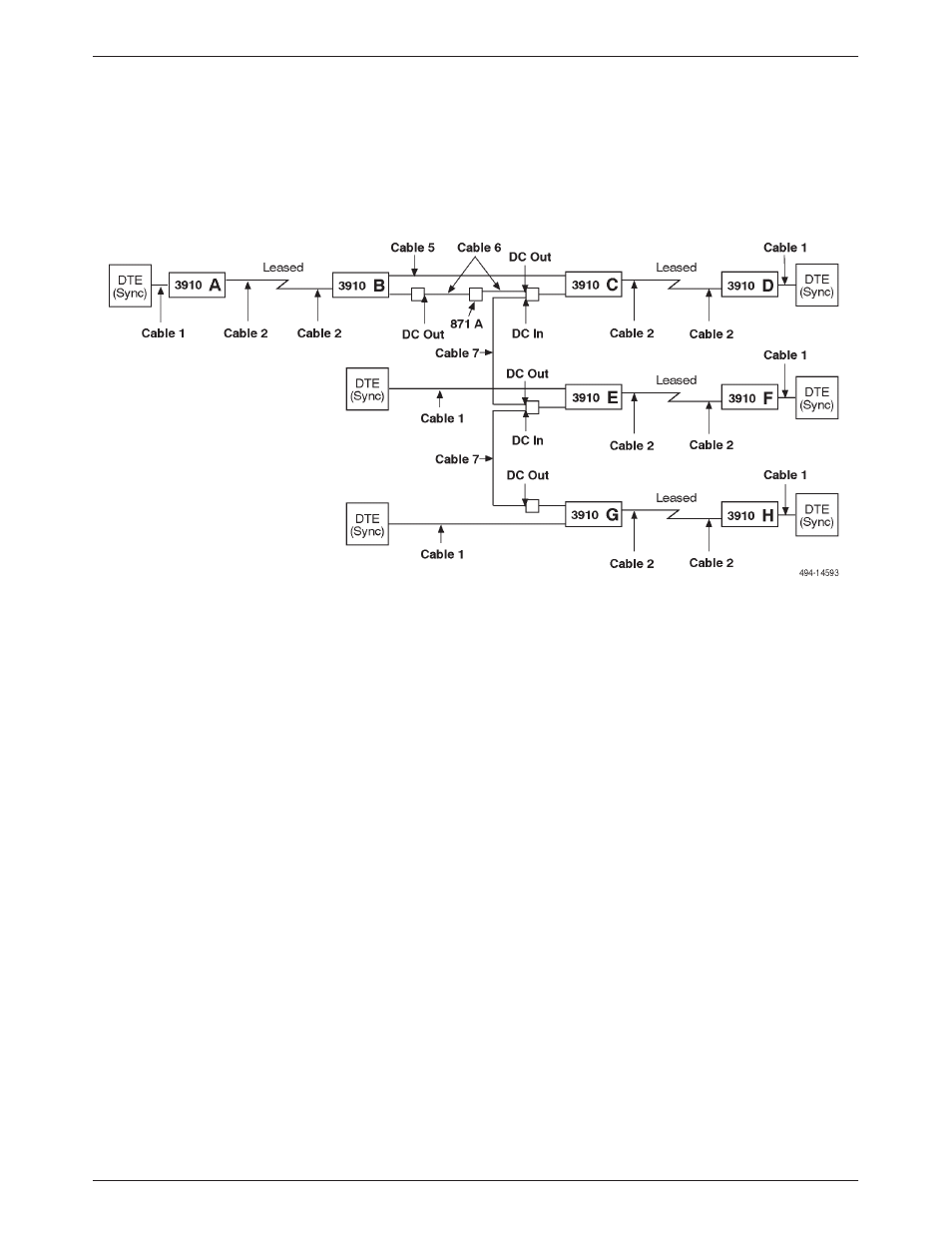

Figure G-7 shows a sample configuration for extended diagnostics.

Figure G-7. Sample Configuration



Extended Diagnostics

Configuration Options

3910 A

Use Sync Leased (Answer) default configuration options with the following
exception:

Network position

Set to Control.

3910 B

Use Sync Leased (Originate) default configuration options with the following
exception:

TX Clock Source

Set to External.

Diagnostic Connection Set to Modem (DC).

3910 C

Use Sync Leased (Answer) default configuration options with the following
exceptions:

TX Clock Source

Set to External.

Extended Channel

Set to Enable.

Upstream Port #

Set to Port 1.

Diagnostic Connection Set to Modem (DC).

Network Position

Set to Continue.
