COMSPHERE 3900 Series Modems

C-4

September 1998

3910-A2-GN32-40

Auxiliary Cables Not Supplied

To add an external telephone to your modem, use an external Y cable to connect the phone line
to both the modem and the telephone (Figure C-2).

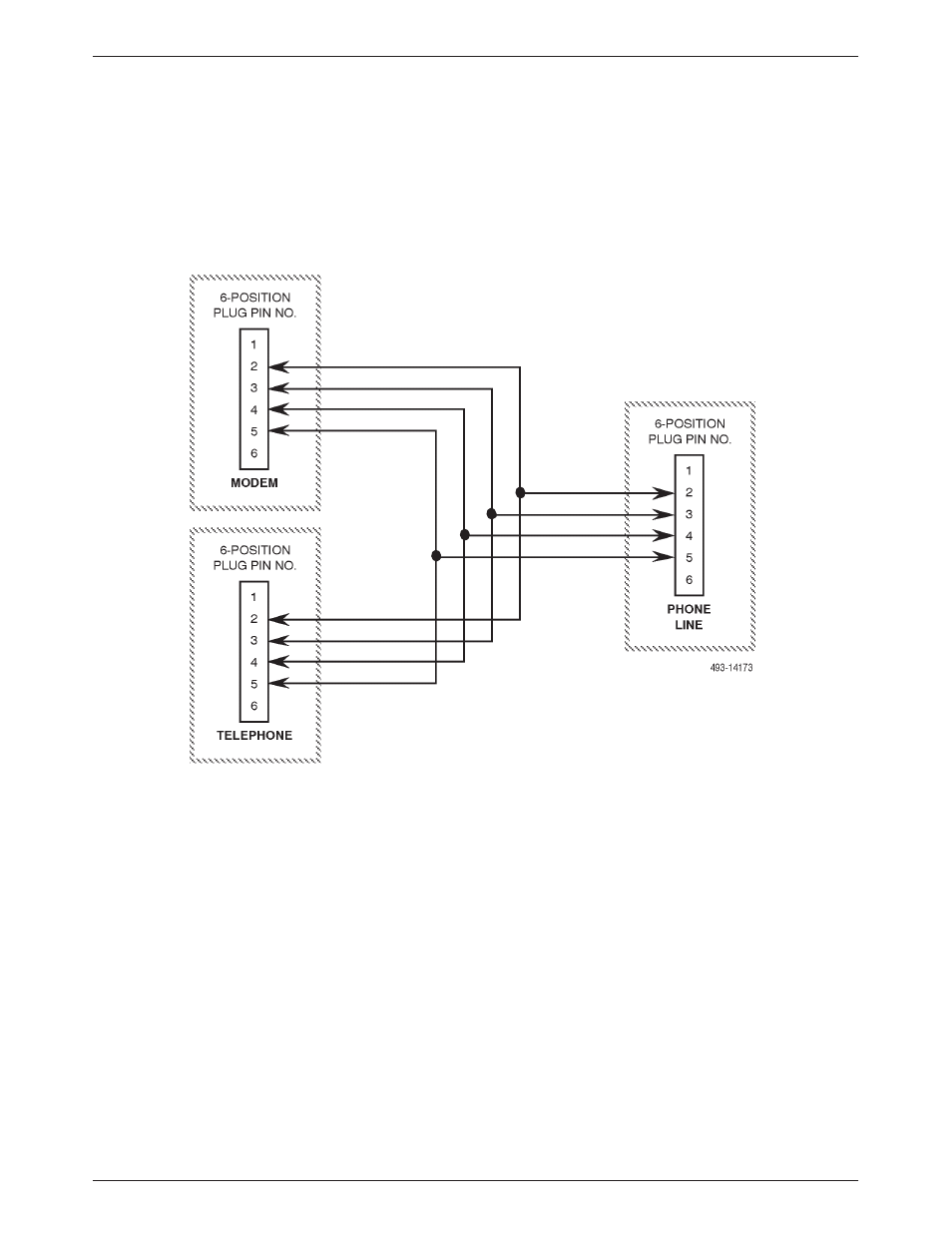

Figure C-2. Wiring Diagram — Y Cable for External Telephone
