Page 44
Roll Unit AW-RL400
43 (E)
Installation
4

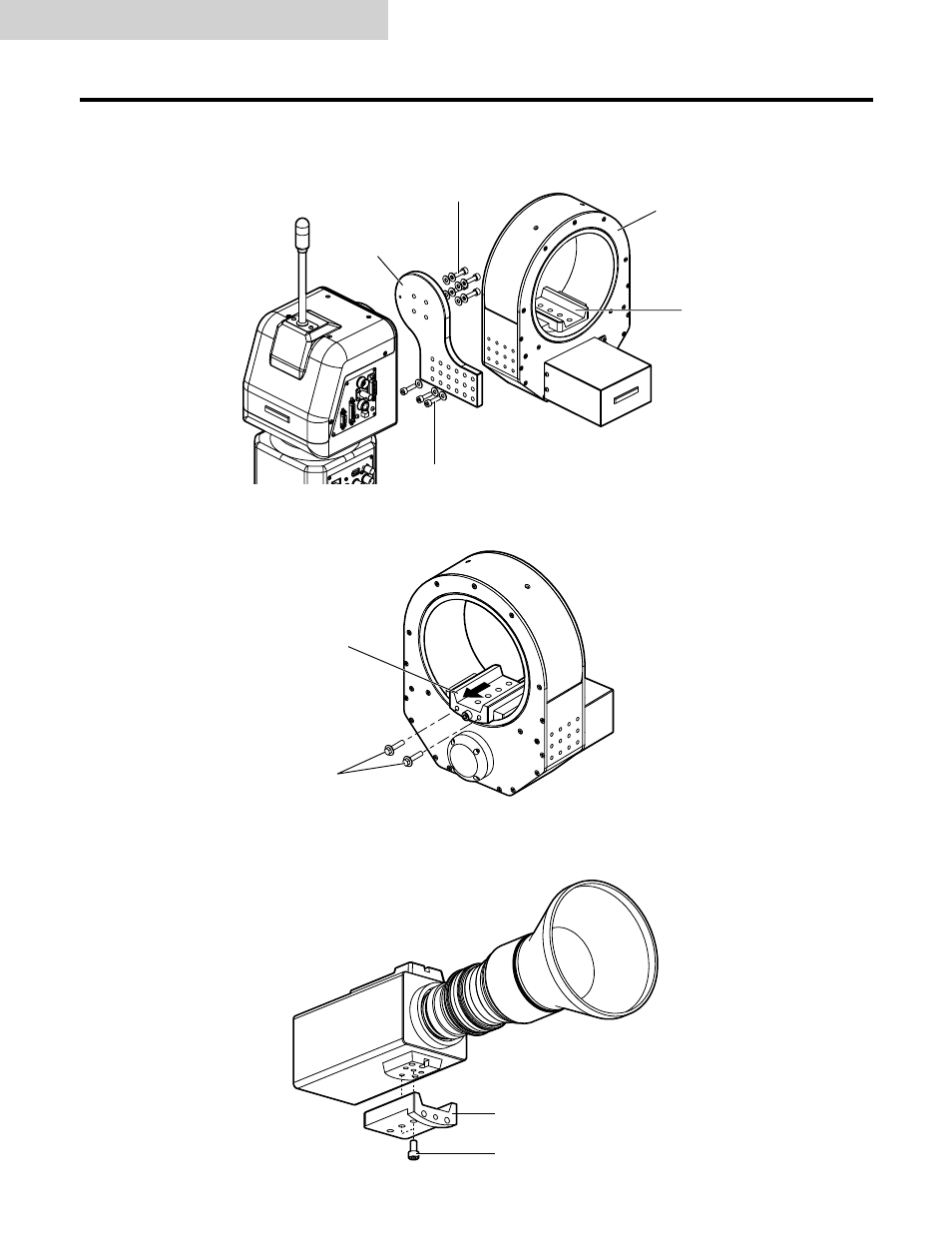

Attach the camera mounting plate (it was removed in step
3
) to the camera unit using two camera mounting screws (camera
accessory).
3
Loosen the two screws of camera mounting plate which is already installed to the roll unit.
Then remove the camera mounting plate.
1
Attach the pan/tilt head’s rotary arm to the roll unit using the accessory three screws (M4
!
8 mm, with flat washers).
2
Attach the rotary arm to the pan/tilt head using the rotary arm mounting screws (M5
!
20 mm, with flat washers, pan/tilt head
accessory).
Roll unit
Camera mounting plate
Camera mounting plate
Camera mounting plate
Camera mounting screws
Rotary arm
Roll unit mounting screws
Rotary arm mounting screws
Screws
