Indoor Pan/Tilt Head AW-PH400
12 (E)
ENGLISH
Installation
(Be sure to ask your dealer to install the unit.)
$ Setting the PCB switches
The switches on the CONNECTOR PCB will need to be set in accordance with the signals to be transmitted and the equipment
to be connected to the pan/tilt head.
(The switches are set to support analogue/SDI at the factory.)
≥ Analogue/SDI support
IP/IEEE switch: IEEE
422/IP switch: 422
≥ Web card support
IP/IEEE switch: IP
422/IP switch: IP
≥ IEEE1394 card support
IP/IEEE switch: IEEE
422/IP switch: 422

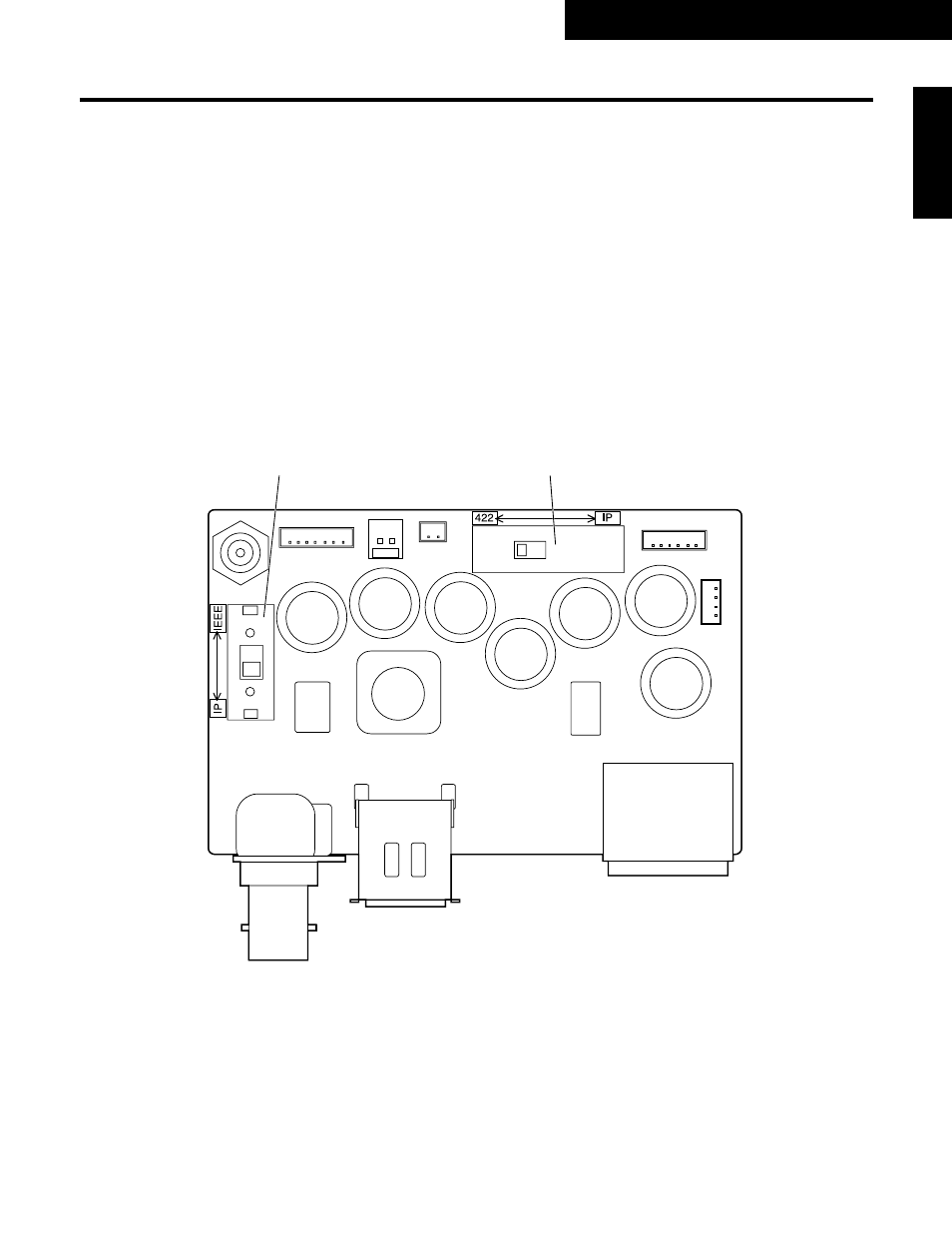

IP/IEEE switch 422/IP switch
