Example of rack mounting

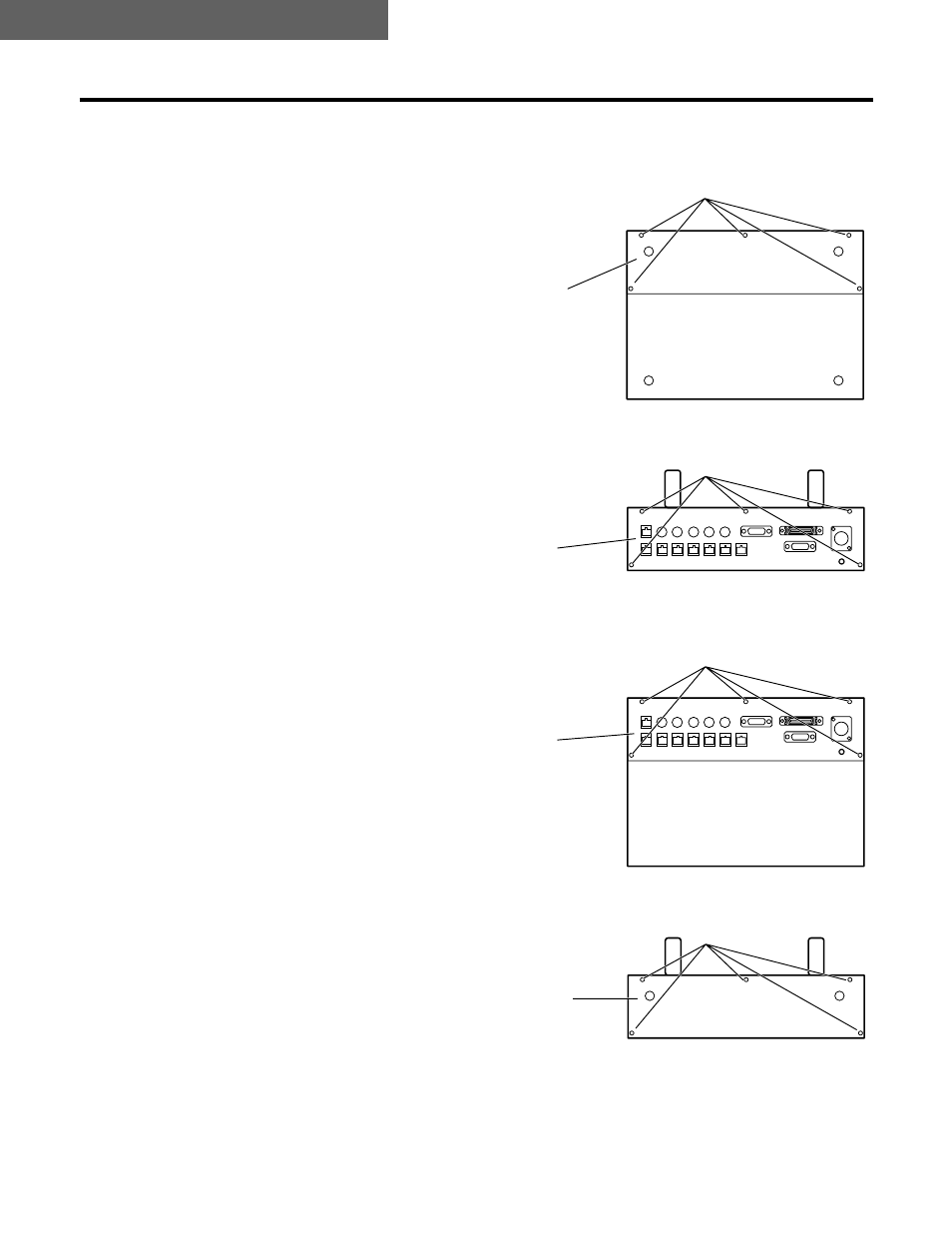

$ How to change the direction of the connector panel
1 Remove the five bottom panel screws, and remove the
blank panel.
2 Remove the five rear panel screws, and remove the
connector panel.
3 Secure the connector panel to the bottom panel using the
screws.
4 Secure the blank panel to the rear panel using the
screws.
Screws ! 5 (bottom panel)
Screws ! 5
(rear panel)
Screws ! 5 (bottom panel)
Screws ! 5
(rear panel)
Remove the blank
panel.
Remove the
connector panel.
Connector panel
Blank panel
