Chapter 2 Installing drivers and host cards
Connecting a 16 port distribution box
To allow 16 ports to be connected using a distribution box proceed as follows
1. Install your 16 port AT or PCI FAST card using the procedures given in
Installing a 16 port AT host card
.
2. Turn off the power to your system.

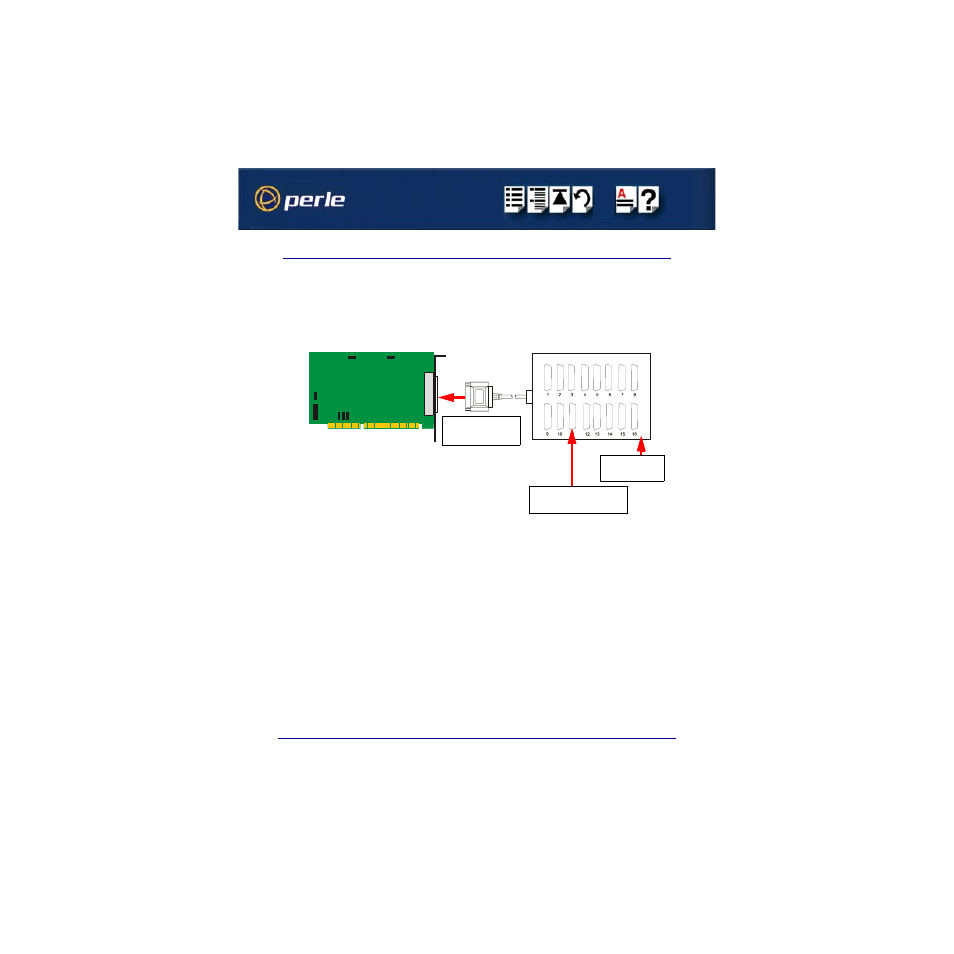

3. Push fit the large connector on the single end of your octopus cable onto the card edge
connector and secure in place using the screws provided as shown in the next picture.
4. Connect peripherals to the required ports on the distribution box using DB25 connectors
provided, then turn on the power to your system.
Push fit onto card
edge connector
Port numbers
labelled on unit
Connect peripheral cable
here via DB25 connectors
