Lanier LP222cn User Manual
Page 38
Setting Up
26
I

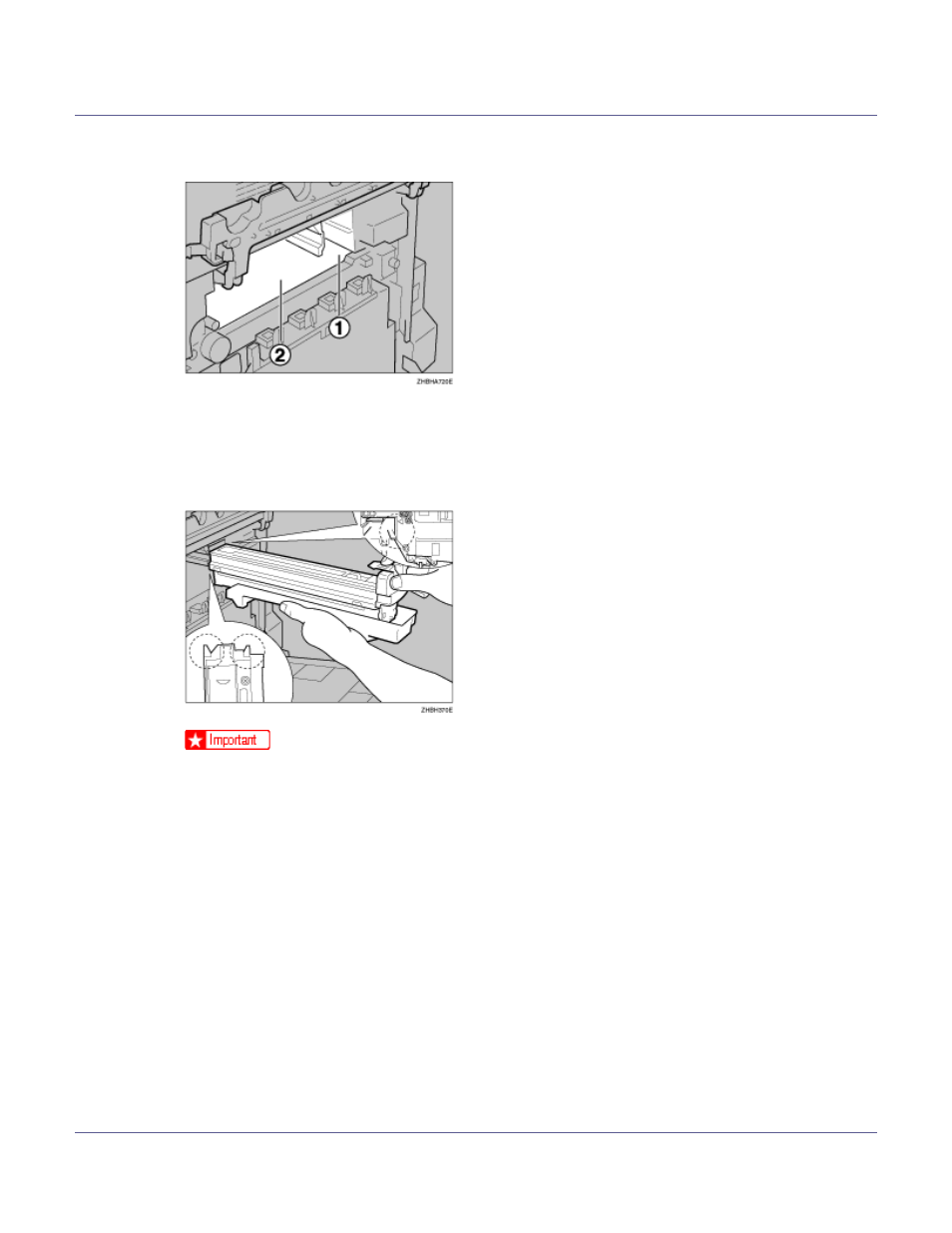

Check the locations for each Photo Conductor Unit.
A
Photo Conductor Unit (Black)
B
Photo Conductor Unit (Color)
J
Align the green arrow at the tip of the photo conductor unit with the rail
inside the printer.
❒ Make sure the green arrow fits securely to the rail before proceeding to the
next step.
❒ If you do not securely attach the green arrow of the photo conductor unit to
the rail, you may damage the photo conductor unit.
