Guide to the Printer
14

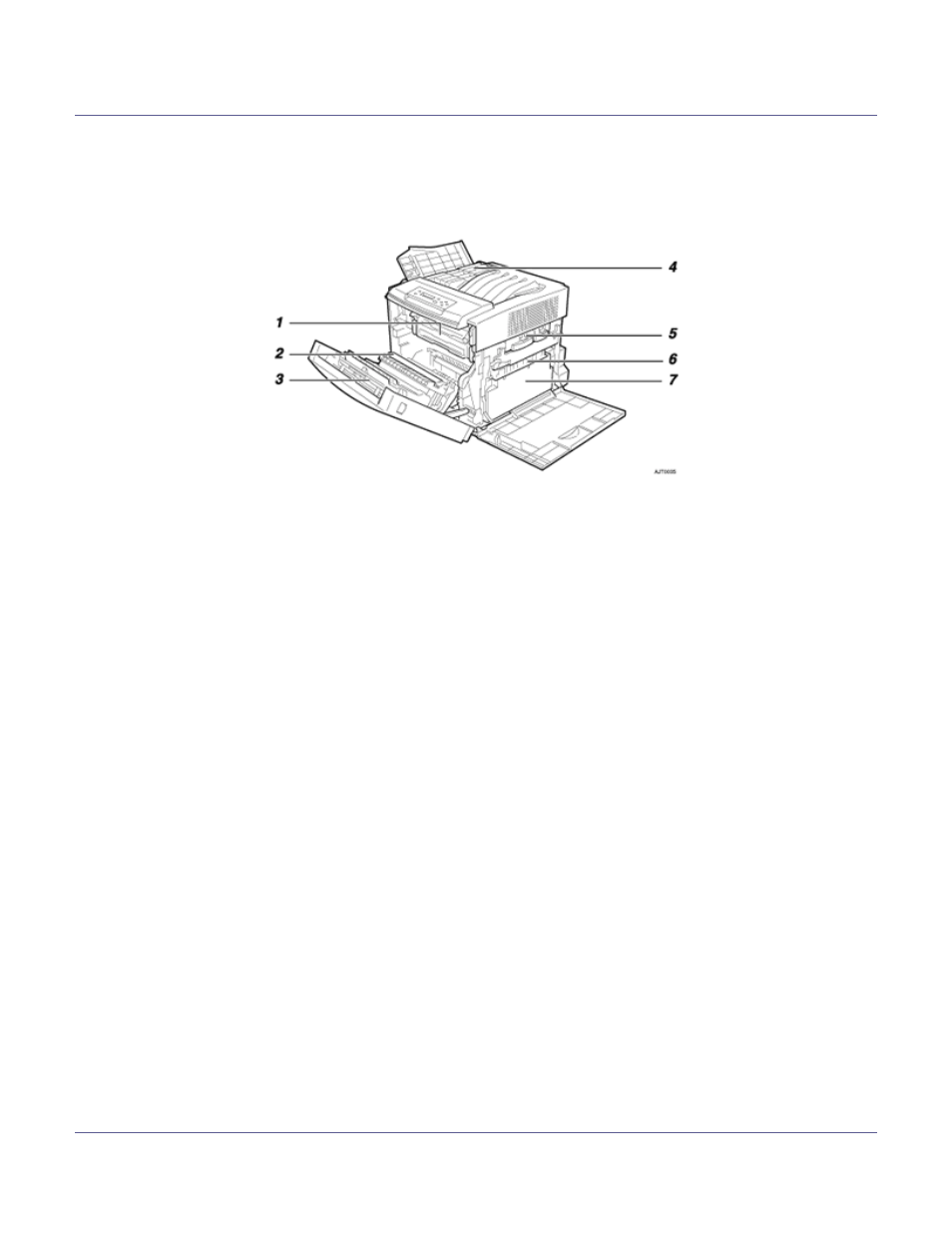

Inside
1. Fusing Unit
Fuses the image onto paper.
When the “Replace Fusing Unit” message appears on the display, replace this unit.
2. Transfer Roller
When the “Replace Fusing Unit” message appears on the display, replace this roller.
3. Duplex Unit (optional for Basic Model Printer)
Use to print on both sides of paper.
4. Toner Cartridges
When the “Add Toner (color)” message appears on the display, replace the toner car-
tridge of the indicated color.
5. Photo Conductor Unit Color/Black
When the “Replace Color PCU” or “Replace Black PCU” message appears on the dis-
play, replace the indicated Photo Conductor Unit.
6. Transfer Belt
When the “Replace Transfer Belt” message appears on the display, replace this unit.
7. Waste Toner Bottle
Collects waste toner. When the “Replace Used Toner Bottle” message appears on the
display, replace this bottle.
