89
Me
asu
rem
ent
5.

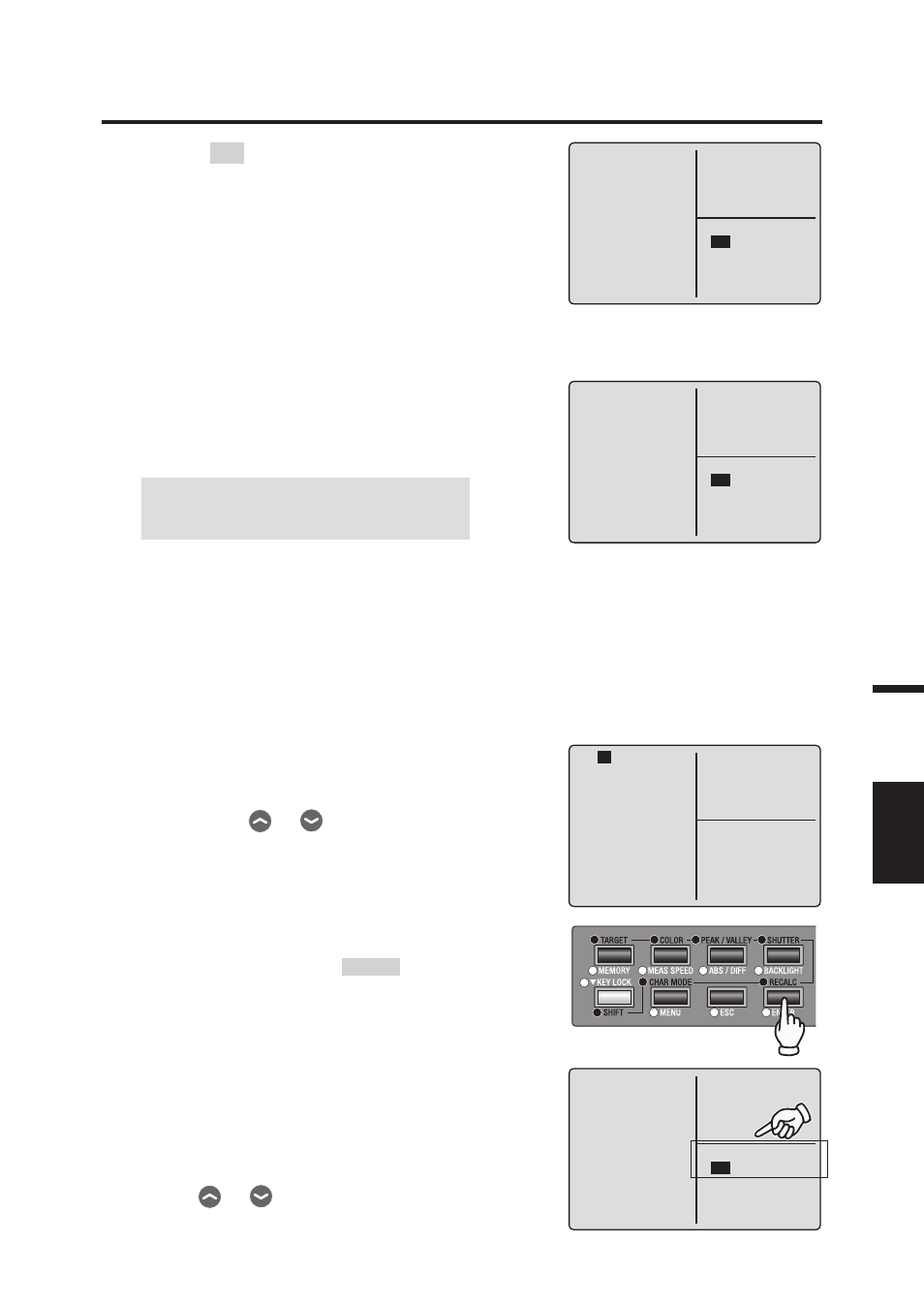

Press ESC key when menu or target
value setting menu appears.
Measurement screen appears on LCD screen.
6.
Press measurement button.
Securely support this instrument so that
measuring object should not be removed from
aperture when pressing measurement button.
L
v
value appears in finder. (L
v
value (Y value
when observer angle is 10˚) appears in any
color space setting for LCD screen.)
Measurement result appears on LCD screen.
After measurement, do not switch OFF
until measurement value appears.
Doing so may break stored data.
To stop measurement in continuous,
press measurement button or
arbitrary key on LCD screen.
When long measurement time is set in single
measurement, press measurement button
or any option key before measurement
is completed to stop measurement.
In case calibration channel is to specify
for measurement, keep following procedure to
select calibration channel before measurement.
Press either
or key to switch calibration
channel if measurement screen has been
operated in SHIFT mode. Calibration channel
can be changed after measurement in the
same way, but recalculation is needed for
measurement value after measurement.
For recalculation, press
RECALC key if
measurement screen is in SHIFT mode
after changing calibration channel.
Recalculation can be done only for
measurement data, not for stored data.
Keep following procedure to select
memory channel before measurement
if memory channel to store measurement
value in is to specify in advance.
Press
or key to switch memory channel
if measurement screen is not in SHIFT mode.
CH01:
<
DEFAULT
>
Lv ------
cd/m 2
x ------
y ------
<
MODE
>
SINGLE
[ ]  [ 2° ]
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
200.00Hz
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
<
MEMORY DATA
>
M 000 : (NO DATA)
Lv ------
x ------
y ------
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
200.00Hz
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
<
MEMORY DATA
>
M 000 : (NO DATA)
Lv ------
x ------
y ------
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
200.00Hz
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
<
MEMORY DATA
>
M000 :(NO DATA)
Lv ------
x ------
y ------
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
200.00Hz
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
<
MEMORY DATA
>
M 000 : (NO DATA)
Lv ------
x ------
y ------
CH00:
<
DEFAULT
>
Lv 20.80
cd/m 2
x 0.4476
y 0.4477
<
MODE
>
SINGLE
[ ]  [ 2° ]
CH 00 :
<
DEFAULT
>
Lv ------
cd/m 2
x ------
y ------
<
MODE
>
SINGLE
[ SFT ]  [ 2° ]
CH00:
<
DEFAULT
>
Lv ------
cd/m 2
x ------
y ------
<
MODE
>
SINGLE
[ ]  [ 2° ]
