20
In
st
all
in
g
Installing

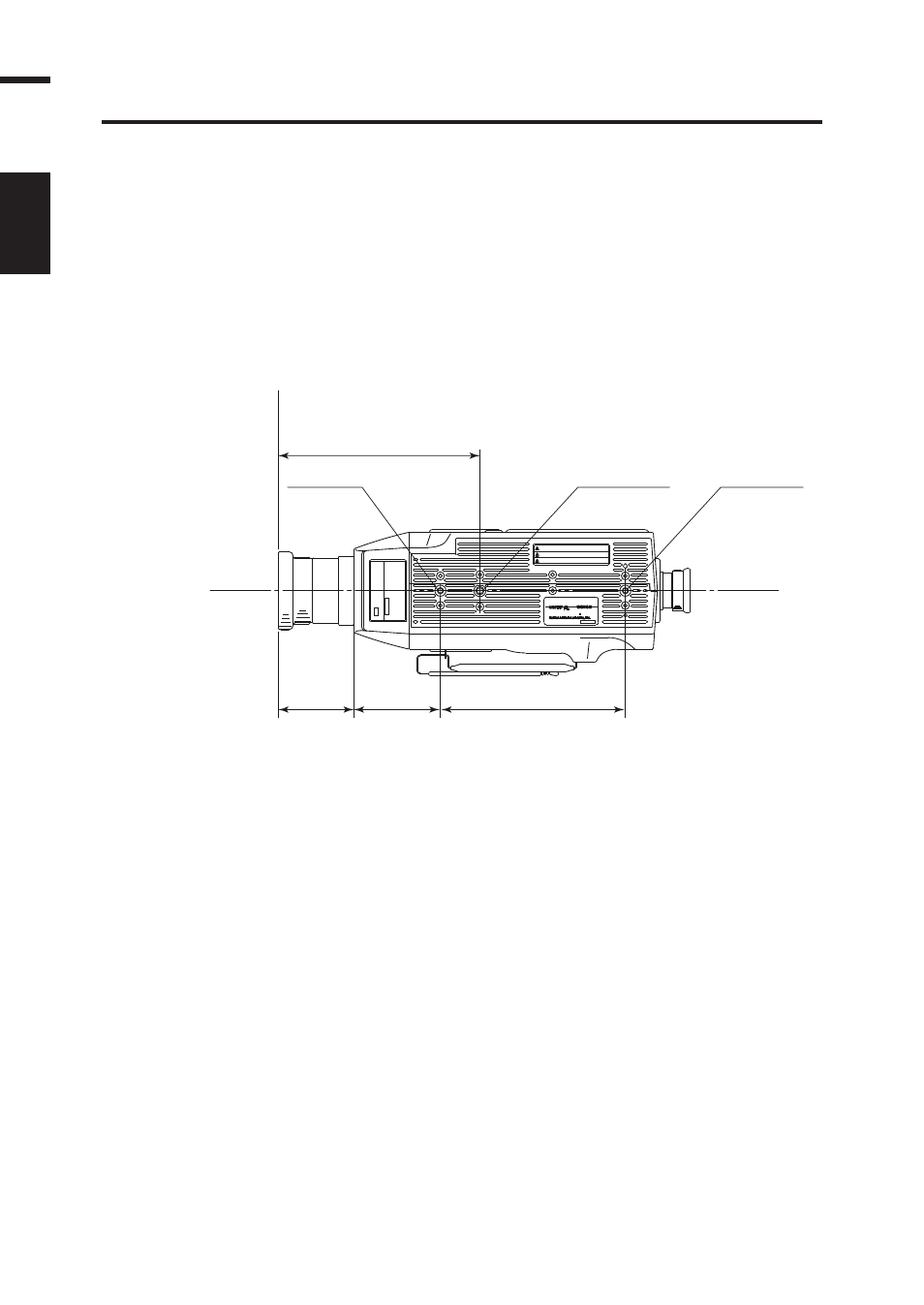

Use screw hole for fixing at the bottom of this instrument if utilized with tripod or jig.
2 type holes are available.
Tripod screw hole : To set on tripod. Screw depth is 6.5 mm.
ISO screw hole
: To set on jig. Use ISO screw with top diameter of 5mm and depth
of 6.5 mm.
For other detailed dimensions, see p.109.
154
61.6
Optical axis
70 150
Standard plane for distance measurements
ISO screw Tripod screw ISO screw
