35
S
e
tt
in
g
1.
Press ESC key when menu or target
value setting menu appears.
Measurement screen appears on LCD screen.
2.
Press SHIFT to switch to SHIFT mode.
[SFT] appears on bottom left of measurement
screen. Or make sure that [SFT] appears
on left bottom indicating that this instrument
has been operated in SHIFT mode.
3.
Press COLOR key to select color space.
Measurement screen switches in order of
L
v
xy → L
v
u’v’ → L
v
TΔuv → XYZ → λd → L
v
xy
in SHIFT mode while COLOR key is pressed.
It switches in order of Yxy → Yu'v' → XYZ
→ λd → Yxy when observer angle is 10˚.
Color space setting remains even
after switching OFF (O).

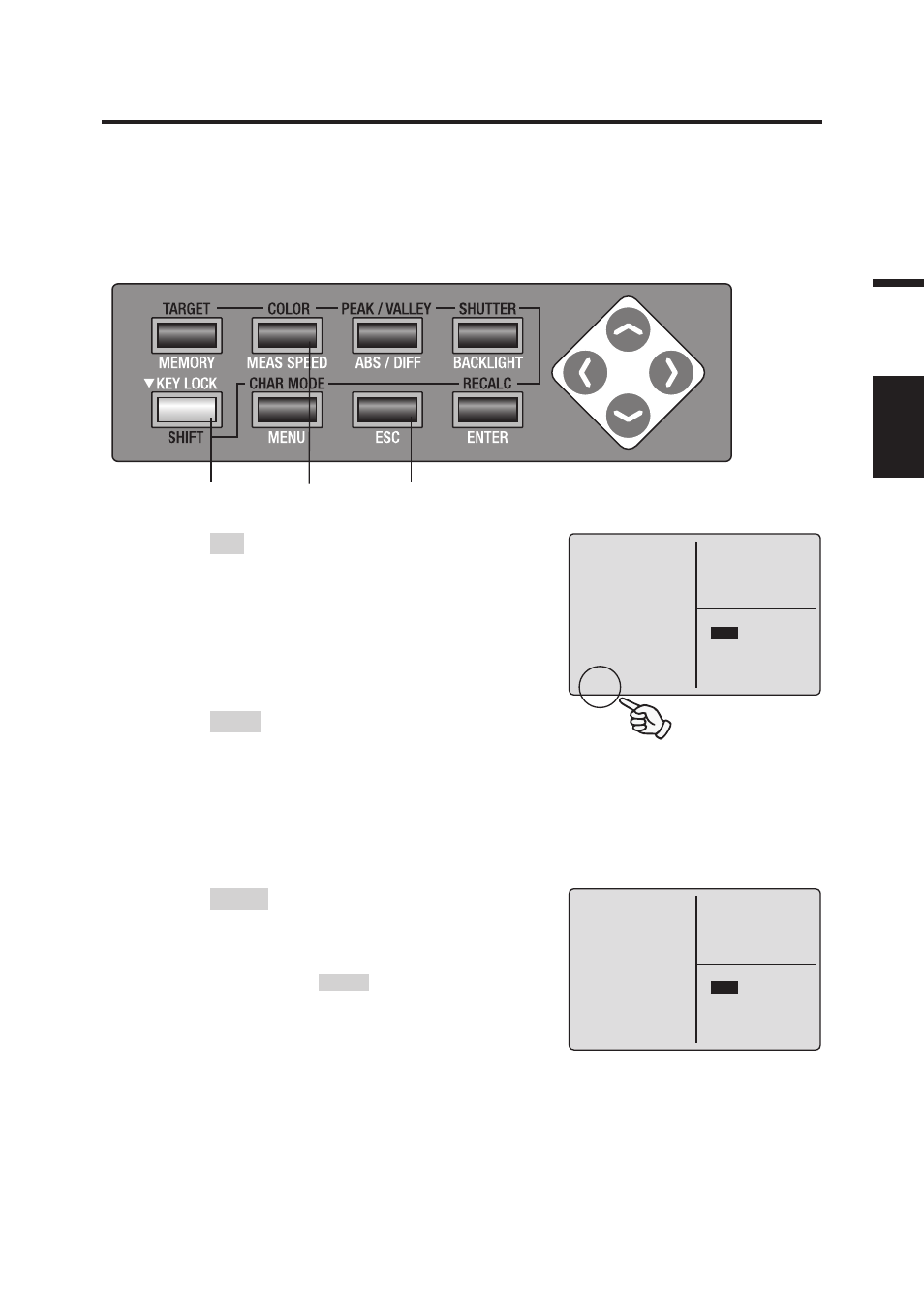

Operation Procedure
2 3 1
C
O
L
O
R
CH00:
<
DEFAULT
>
Lv ------
cd/m 2
x ------
y ------
<
MODE
>
SINGLE
[ ]  [ 2° ]
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
200.00Hz
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
<
MEMORY DATA
>
M OOO :(NO DATA)
Lv ------
x ------
y ------
CH00:
<
DEFAULT
>
Lv ------
cd/m 2
u’ ------
v’ ------
<
MODE
>
SINGLE
[ ]  [ 2° ]
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
200.00Hz
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
<
MEMORY DATA
>
M OOO :(NO DATA)
Lv ------
u’ ------
v’ ------
