41
S
e
tt
in
g
3.

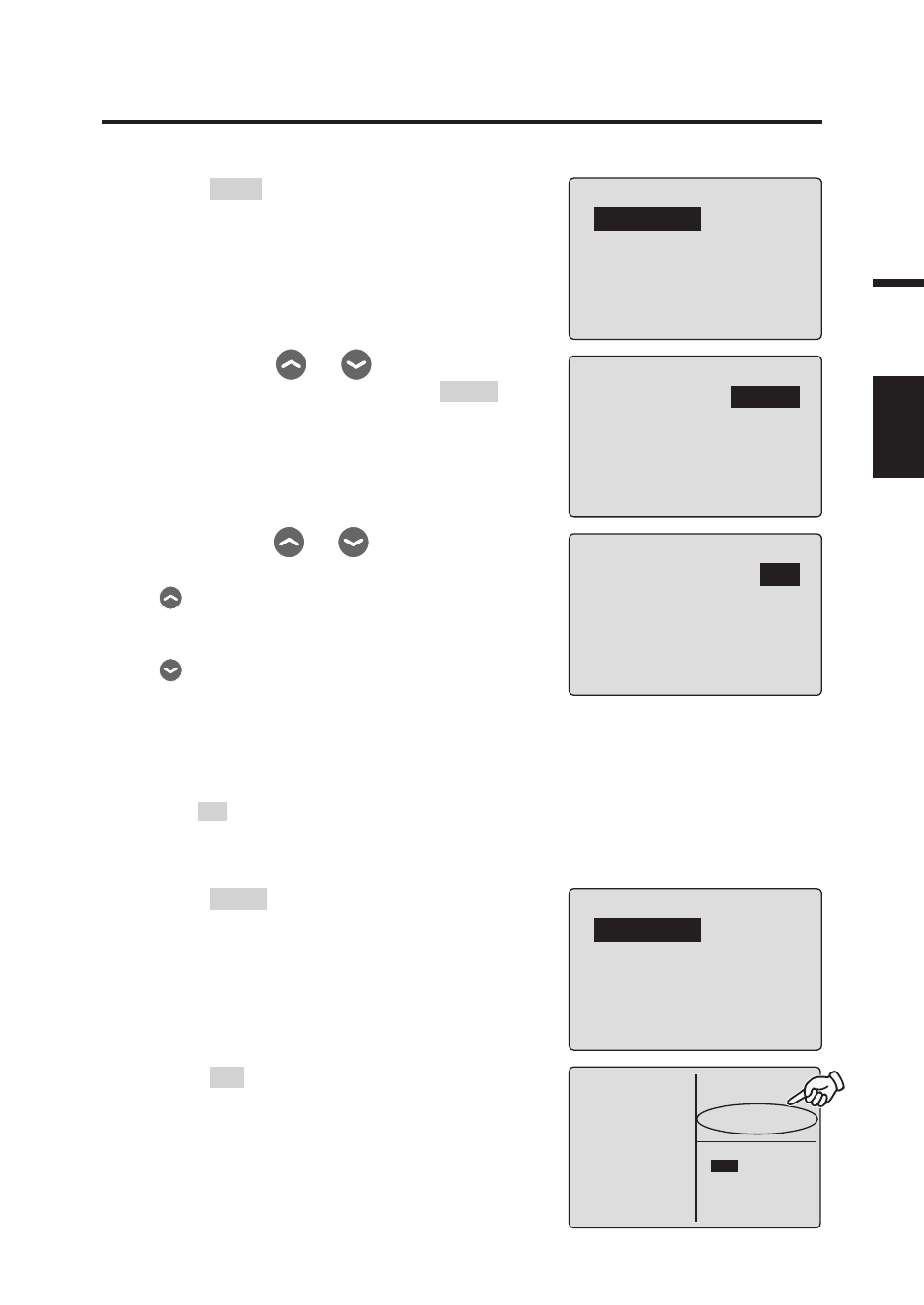

Press MENU key twice.
Menu 2/4 screen appears on LCD screen.
4.
Press either
or key to select
[OBJECTIVE LENS] and then ENTER key.
Inversion cursor moves from
[OBJECTIVE LENS] to right to change lens type.
5.
Press either
or key
to switch lens type.
If is pressed, lens type switches in order of
[STANDARD] → [No.122] → [No.107] → [STANDARD]
. Keep pressing to continuously switch.
If
is pressed, lens type switches in order of
[STANDARD] → [No.107] → [No.122] → [STANDARD]
. Keep pressing to continuously switch.
Set to [No.107] for close-up lens No.107, [No.122] for close-up lens
No.122 and [STANDARD] for nothing with objective lens.
Press
ESC key to stop.
6.
Press ENTER key.
Inversion cursor returns to [OBJECTIVE LENS].
Now change has been set.
7.
Press ESC key to return to
measurement screen.
Setting remains even after switching OFF (O).
