68
M
ea
su
re
m
en
t
Pr
ep
ara
tio
n
7.

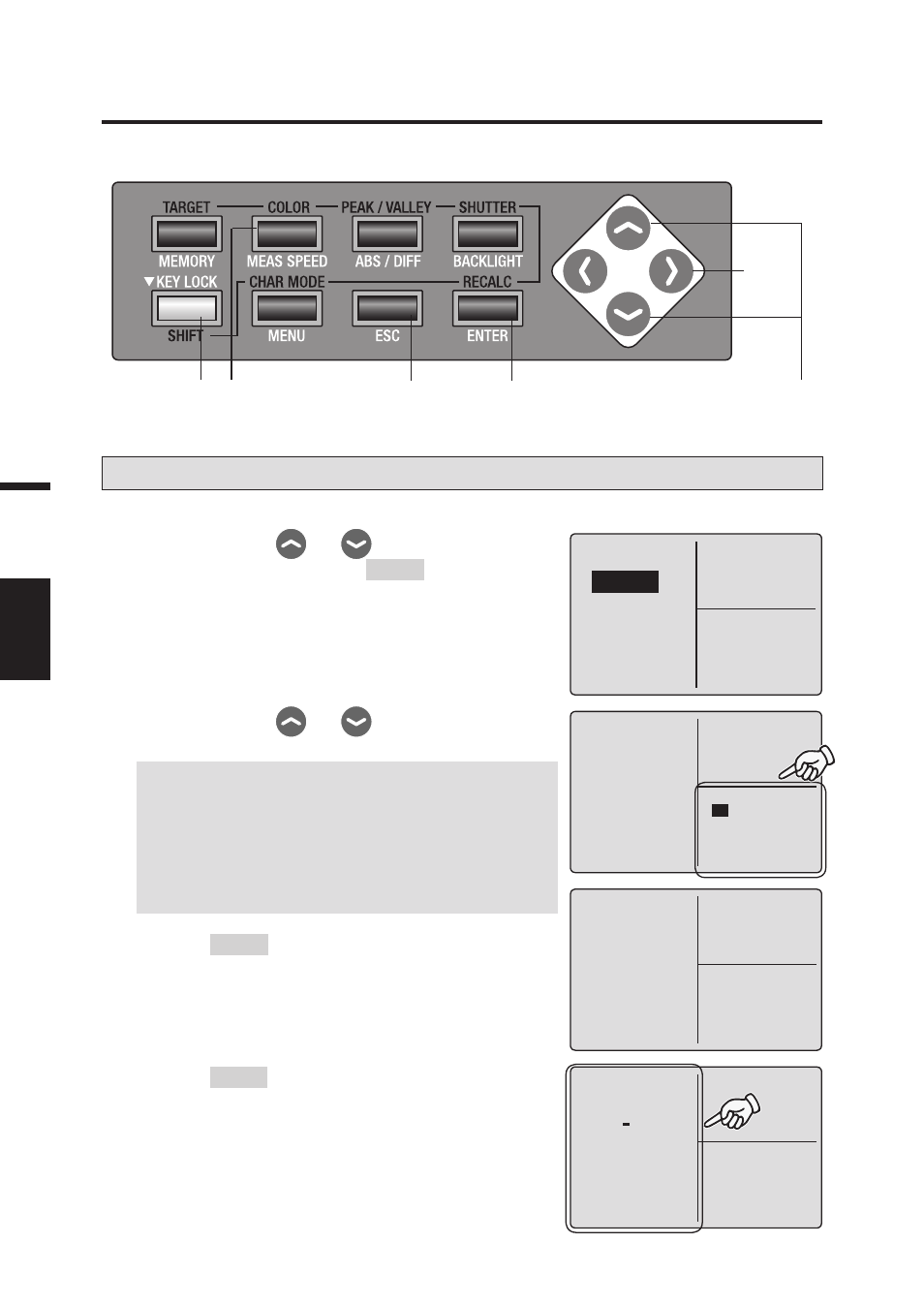

Press either
or key to select
[USER CAL] and then ENTER key.
< USER CAL DATA> screen appears.
8.
Press either
or key
to select stored data.
Please select data which was measured using CH00
(KONICA MINOLTA SENSING’s calibration standard.)
The data are considered to have been calculated using CH00 (KONICA
MINOLTA SENSING’s calibration standard) without compensation coef-
ficients for user calibration, even if data measured using a calibration channel
other than CH00 are selected. Because of this, when existing data measured
using a calibration channel other than CH00 are selected for performing
user calibration, user calibration cannot be performed properly.
9.
Press COLOR key in SHIFT mode,
and select color space.
Select same color space as calibration value
to be entered in procedures from
11
to
13
.
10.
Press ENTER key.
Calibration entry screen appears.
(2) Through selection from saved data
continuation from a p.64, 65.
15 10, 14
12
7, 8, 11 9 9
U
S
E
R C
A
L
<
CH SETTING
>
CH01:
<
DEFAULT
>
USER CAL
CH ID NAME
CH COPY
CH RESET
BREAK:[ESC]
[ ]  [ 2° ]
CH01:
Lv ------
cd/m 2
x ------
y ------
SELECT MEH DATA
OR MEASURE.
NEXT : [ENTER]
[ ]  [ 2° ]
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
NO SYNC
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
M 002 :
Lv 100.76
x 0.3945
y 0.3998
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
NO SYNC
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
M002 :
Lv 100.76
x 0.3945
y 0.3998
CH01:
Lv ------
cd/m 2
x ------
y ------
SET CAL VALUE.
OK : [ENTER]
[ SFT]  [ 2° ]
CH01:
Lv ------
cd/m 2
x ------
y ------
SELECT MEH DATA
OR MEASURE.
NEXT : [ENTER]
[ SFT]  [ 2° ]
<
ANGL
>
1° VIEW
<
SPD
>
AUTO
<
SYNC
>
NO SYNC
<
LENS
>
STANDARD
<
MEM
>
AUTO NUM
M002 :
Lv 100.76
x 0.3945
y 0.3998
