PLC-WXE46/WXL46 Expand Serial Command Functional Specifications
8/65
1. Overview
1.1 This Functional Specification defines communication functions for PLC-WXE46/WXL46
1.2 Compatible to Firmware Ver. 1.x of the projector.
1.3 Most commands can be used to control projector remotely from PC by RS-232C. Therefore, the
commands are defined as Expand Serial Commands.
2. Serial Interface Specification
2.1 Transfer Specification
Item Specification
Synchronous System Asynchronous
Transmission Speed 9600 / 19200
Data Length 8 bit
Parity N/A
Stop Bit 1
Flow Control N/A
Note1) Transmission Speed : initial setting value is 19200
Note2) Transmission Speed can be changed in service mode.
2.2 Connection
Dedicated serial cable must be used for a connection to a computer and a projector.

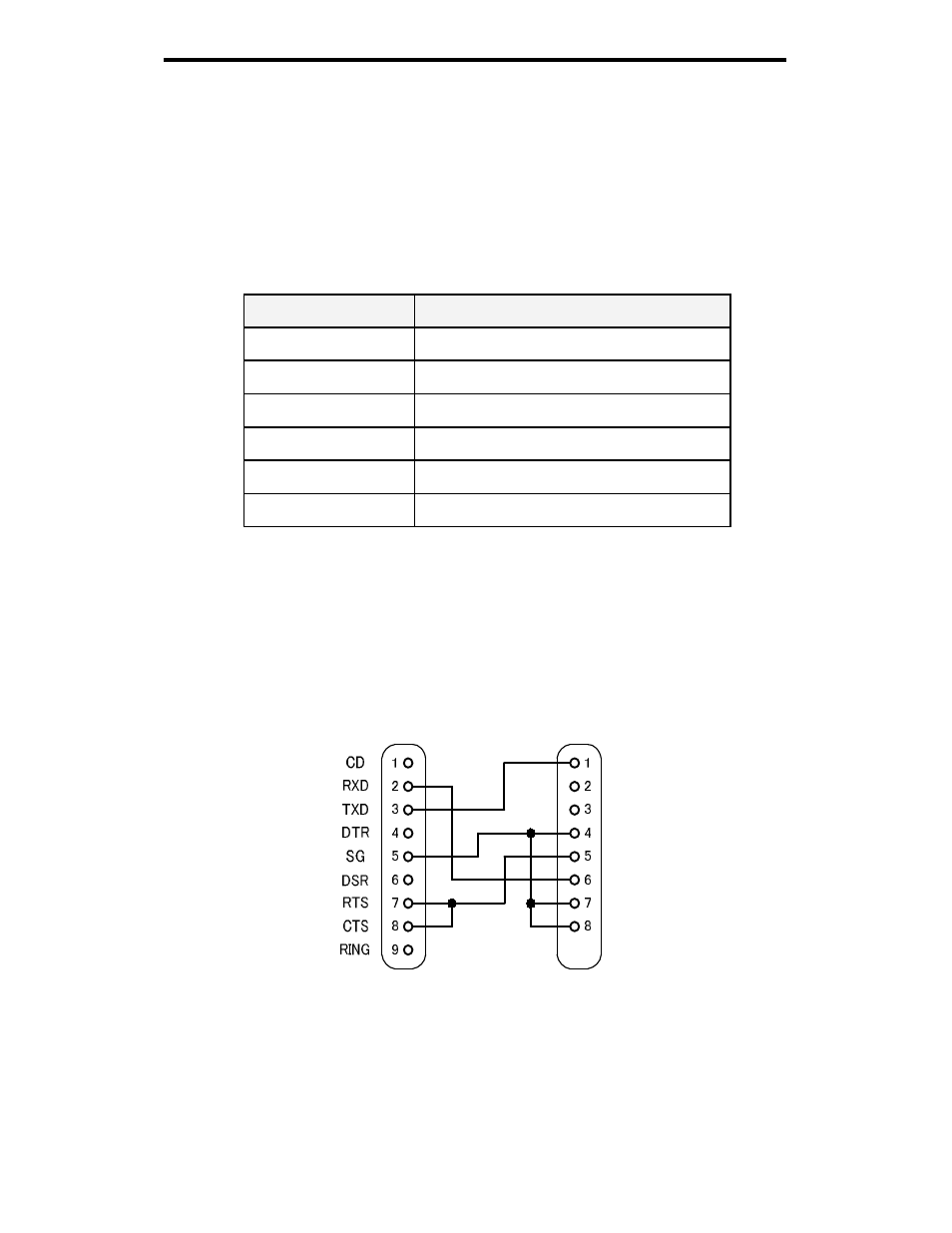

PC Projector
COM 1 Control Port
(D-Sub 9 Pin) (Mini 8 Pin)
