2-24
X6DH3-G2/X6DHi-G2 User's Manual

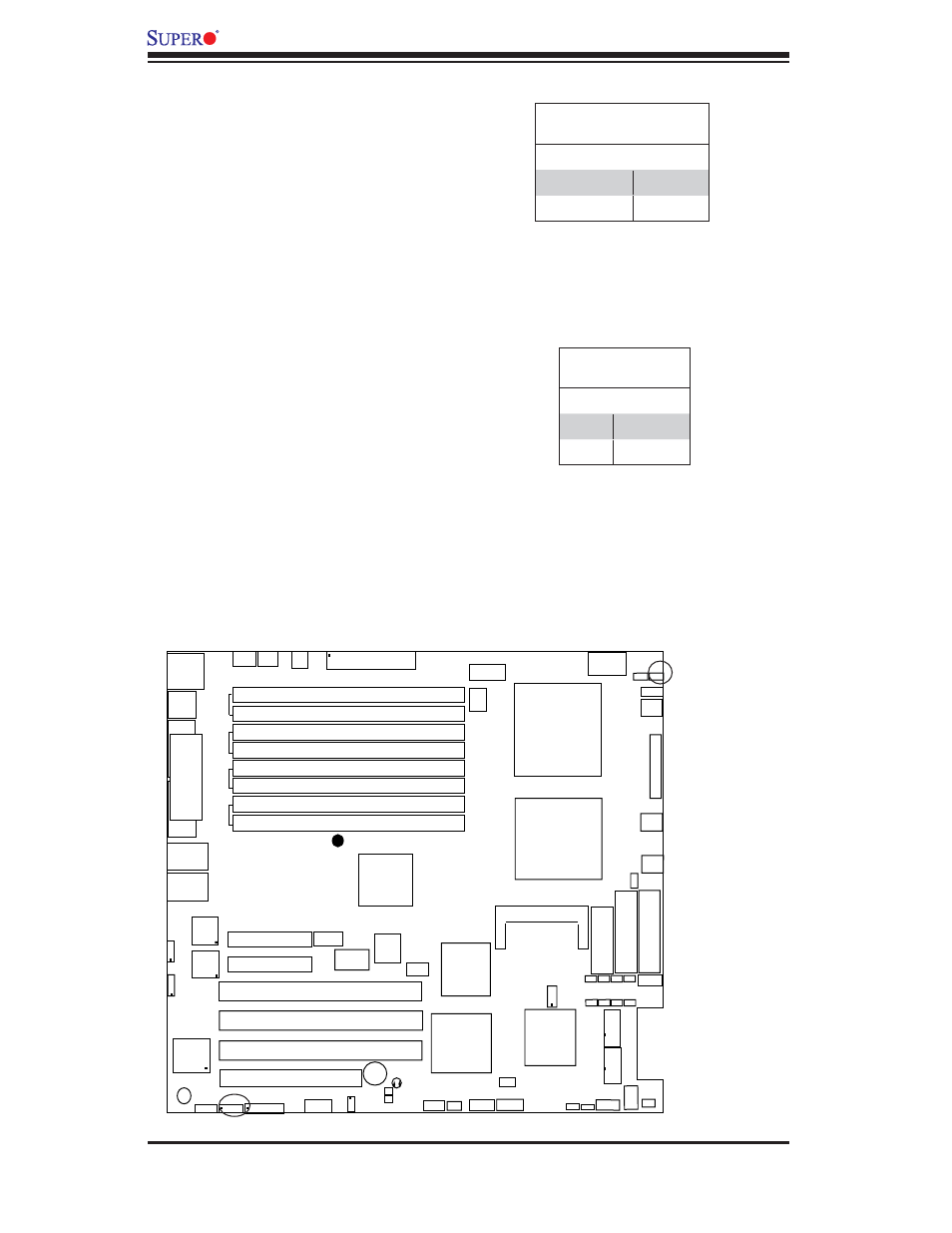

VGA Enable/Disable
JPG1 enables or disables the VGA
Connector on the motherboard. See
the table on the right for jumper set-
tings. The default setting is enabled.
Alarm Reset (JAR)
The system will notify you in the event
of a power supply failure. This feature
assumes that Supermicro redundant
power supply units are installed in
the chassis. If you only have a single
power supply installed, you should
not connect anything to this jumper to
prevent false alarms. See the table on
the right for jumper settings.
